Description
Technical Overview

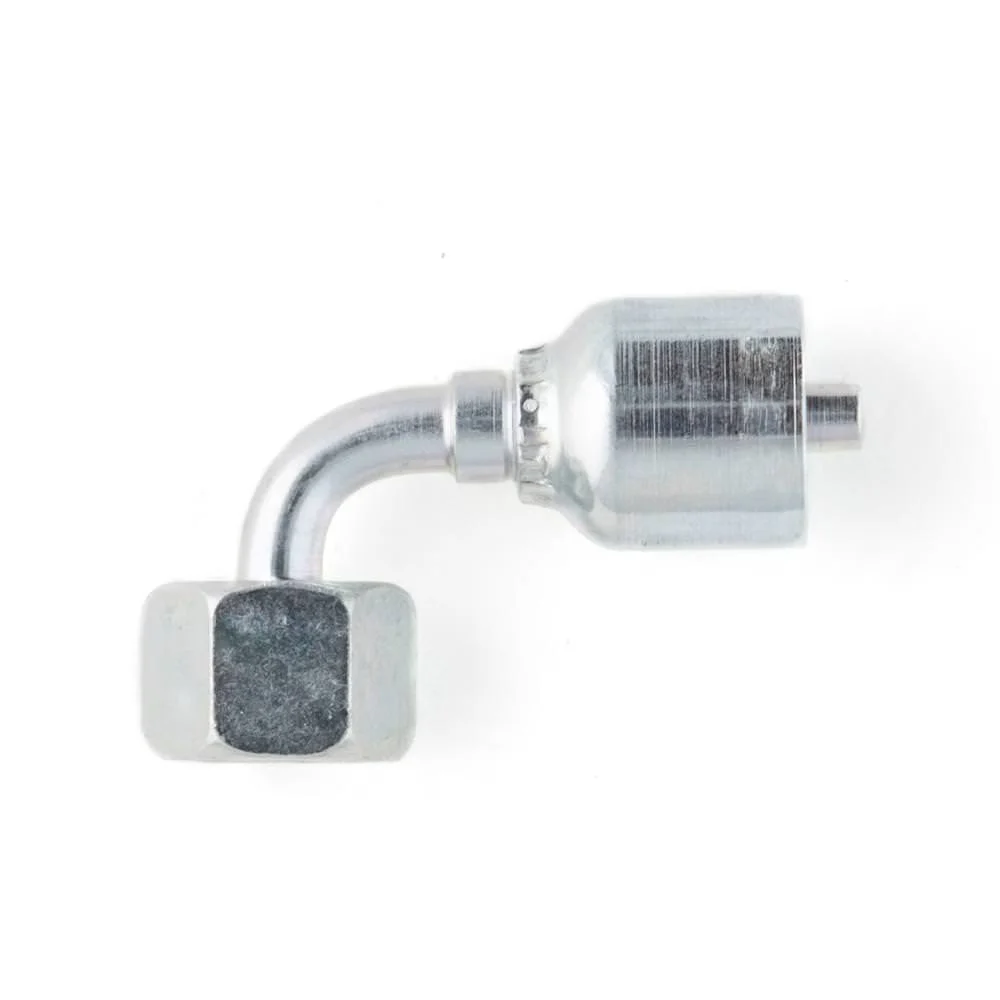

The Parker 11C43-38-20 is a part of the 43 Series Fittings, featuring a female metric swivel 90° elbow design that is engineered for high-performance in hydraulic systems. The crimp-style fitting allows for quick and efficient assembly with Parker’s range of Parkrimp crimpers, eliminating the need for skiving the hose cover, thereby reducing the risk of premature hose failure.
Specifications
- Part Number: 11C43-38-20
- Material: Steel
- Connection Type: Female Metric S – 90° Elbow (Ball Nose)
- Plating: Chromium-6 Free
- Weight: 2.168 lbs
Features and Benefits
- No-skive assembly minimizes hose cover damage
- Durable steel construction ensures longevity and reliability
- 90° elbow design allows for space-efficient installation
- Offers secure and leak-free connections
- Made in USA with Parker’s stringent quality standards
Applications
- Hydraulic systems in industrial machinery
- Agricultural equipment hydraulic circuits
- Construction machinery and automotive applications
- Fluid transfer systems requiring precise connections
Quality and Certification
Parker ensures that all 43 Series Fittings meet strict quality control standards, providing reliable performance in demanding hydraulic applications. Each product adheres to industry certifications and is manufactured under rigorous testing procedures to guarantee safety and effectiveness.
