Description
Technical Overview

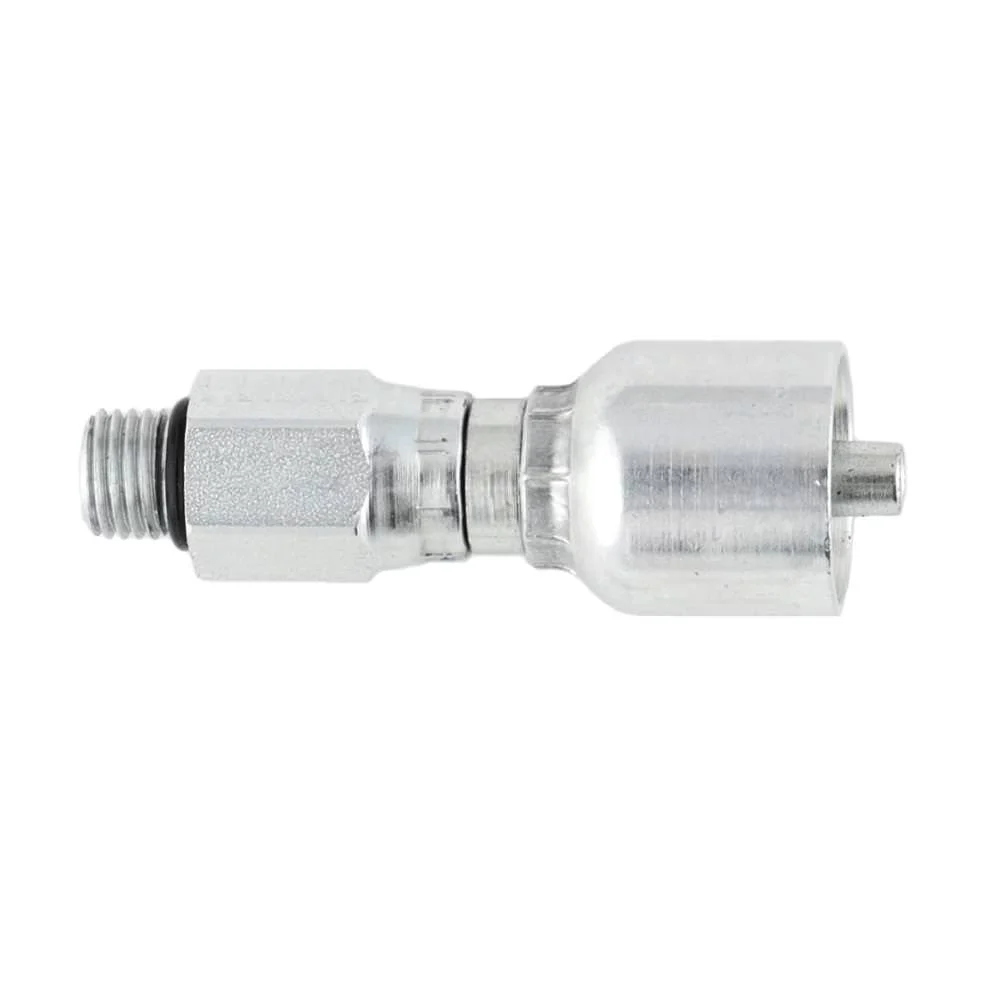

The Parker 10G43-12-12 is a high-quality fitting designed for use in hydraulic systems requiring reliable connections. This male SAE straight thread fitting features an integrated O-ring and swivel design, allowing for easy assembly and a secure seal. It’s part of the Parker 43 Series, known for its durability and ease of use, providing a permanent crimp style connection without the need for skiving the hose. This feature helps prevent premature hose failure, making it ideal for various applications.
Specifications
- Part Number: 10G43-12-12
- Material: Steel
- Connection Type: Male SAE Straight Thread with O-Ring
- Size: 3/4 inch
- Plating: Chromium-6 free
- Weight: 0.64 lbs
Features and Benefits
- Permanently crimp for effective hose connections
- Eliminates the need for skiving, reducing risk of hose damage
- Compatible with a range of Parker hydraulic hoses
- O-ring and swivel design for flexible and sealed connections
- Made in USA under strict quality standards
Applications
- Hydraulic machinery
- Agricultural equipment
- Construction machinery
- Industrial hydraulic systems
- Transport and delivery systems
Quality and Certification
The Parker 10G43-12-12 is manufactured in accordance with Parker’s rigorous quality standards to ensure reliability and performance. Each fitting undergoes extensive testing for quality assurance, conforming to industry specifications and certifications.
For additional information or technical support, please contact our product specialists at (800) 823-4937.
