Technical Overview

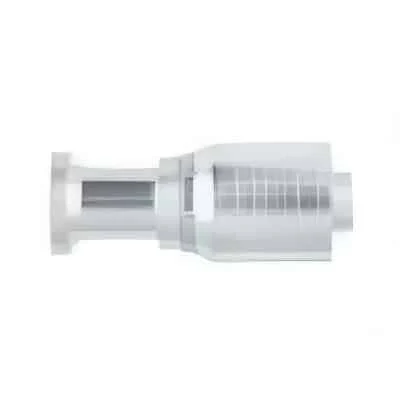

The Parker 77 Series 14A77-32-32 is a top-tier flange fitting designed for demanding hydraulic applications. This flanged fitting features a permanent (crimp) style connection, allowing for quick and easy assembly with Parker’s family of Parkrimp crimpers. Its no-skive design means that the outer cover of the hose does not need to be removed during assembly, significantly reducing the risk of premature hose failure. Built for durability, this fitting is plated with zinc dichromate for enhanced corrosion resistance.
Features and Benefits
- No-skive assembly eliminates wear and premature failure
- Compatible with Parker Hydraulic Spiral Hose
- Zinc dichromate plating for superior corrosion resistance
- Permanent crimp style offers strength and reliability
- Ideal for high-pressure hydraulic connections
- Made in USA under strict quality standards
Specifications
- Part Number: 14A77-32-32
- Material: Steel with zinc dichromate plating
- Pressure Rating: 5000 PSI
- Connection Type: Flange Head, Straight
- Hose Compatibility: Parker Hydraulic Spiral Hose
- Weight: 4.58 lbs
Applications
- Hydraulic systems requiring durable fittings
- Manufacturing and assembly lines
- Construction and heavy machinery applications
- Agricultural equipment
- Oil and gas industry applications
Quality and Certification
Maintaining Parker’s exceptional quality standards, the 14A77-32-32 fitting is manufactured in accordance with rigorous testing procedures to ensure reliability in high-pressure environments. Its certifications attest to its compatibility and performance within various industrial applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
