Technical Overview

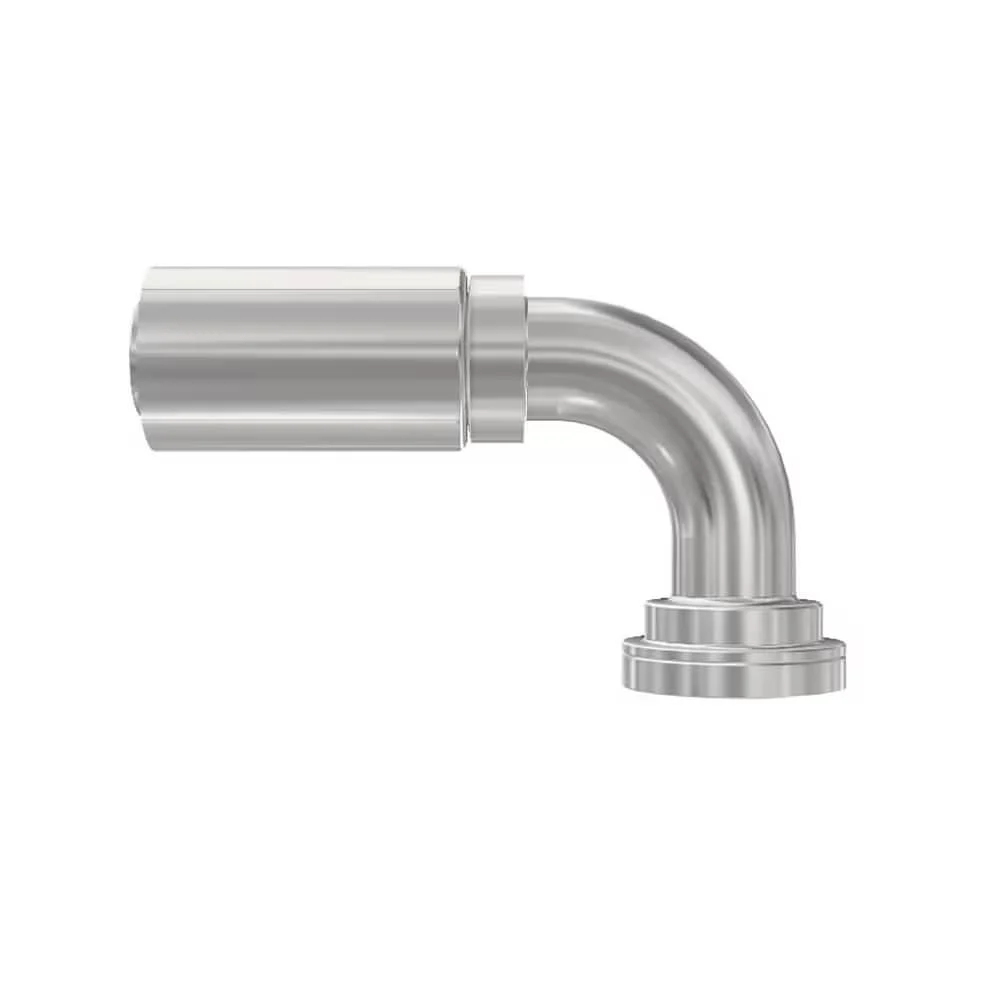

The Parker 77 Series fitting, specifically the 16N77-24-20 model, is a high-performance hydraulic fitting designed for seamless integration with Parker’s crimping technology. Featuring a 90° elbow with a 1 1/2 inch SAE Code 62 flange head, this fitting allows for quick assembly and ensures a reliable connection in hydraulic systems.
The Parkrimp design enables assembly without the need to remove the outer cover of the hose, thus preventing premature hose failure due to improper skiving. Made from durable steel and treated with zinc dichromate plating, this fitting provides excellent resistance to corrosion and wear, ensuring longevity in demanding environments.
Specifications
- Part Number: 16N77-24-20
- Connection Type: 90° Elbow with SAE Code 62 Flange Head
- Flange Size: 1 1/2 Inch
- Material: Steel with Zinc Dichromate Plating
- Weight: 2.96 lbs
Features and Benefits
- Easy installation with Parkrimp permanent crimp style design
- No skiving required, reducing risk of hose failure
- Durable zinc dichromate plating for corrosion resistance
- Versatile use in various hydraulic applications
- Made in USA with strict quality standards
Applications
- Hydraulic systems in industrial applications
- Construction and agricultural machinery
- Oil and gas equipment
- Mobile and stationary hydraulic equipment
Quality and Certification
The Parker 77 Series fittings are manufactured in accordance with high quality standards to ensure reliability and performance. Parker’s rigorous testing processes and certifications ensure that each fitting meets industry requirements for durability and safety in hydraulic applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
