Description
Technical Overview

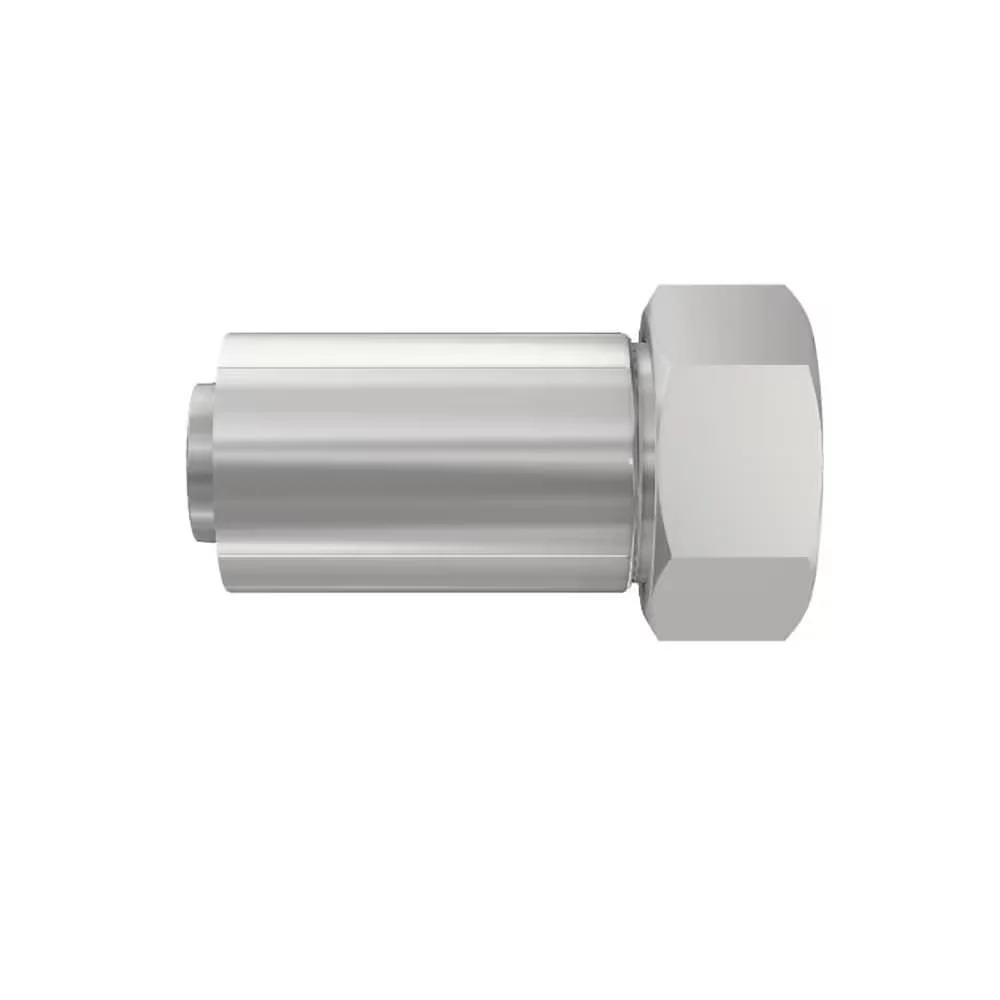

The Parker 1C977-16-8 is a high-quality zinc dichromate plated fitting from the renowned 73 Series designed for use with Parker’s 731 Hydraulic Spiral Hose. This Parkrimp permanent (crimp) style fitting allows for quick assembly with our family of Parkrimp crimpers. The innovative no-skive assembly process eliminates the need to remove the outer cover of the hose, significantly reducing the risk of premature failure due to overly aggressive or insufficient skiving.
Specifications
- Part Number: 1C977-16-8
- Material: Zinc Dichromate Plated Steel
- Type: Female Metric S – Swivel – Straight
- Connection Type: 24° Cone with O-Ring
- Hose Compatibility: Parker 731 Hydraulic Spiral Hose
- Weight: 0.983 lbs
Features and Benefits
- Quick assembly with no need to skive the hose, reducing assembly time.
- Durable zinc dichromate plating enhances corrosion resistance.
- Designed for high-performance hydraulic systems for optimal fluid flow.
- Permanent Parkrimp attachment ensures a secure fit.
- Made in USA with Parker’s commitment to quality and reliability.
Applications
- Hydraulic machinery and equipment.
- Industrial machinery.
- Construction and agricultural equipment.
- Material handling systems.
- Fluid power systems requiring reliable connections.
Quality and Certification
This fitting is manufactured according to Parker’s stringent quality standards, ensuring durability and performance in hydraulic applications. All fittings undergo rigorous testing to meet or exceed industry specifications, providing confidence in quality and long service life.
For technical support and assistance, contact our product specialists at (800) 823-4937.
