Description
Technical Overview

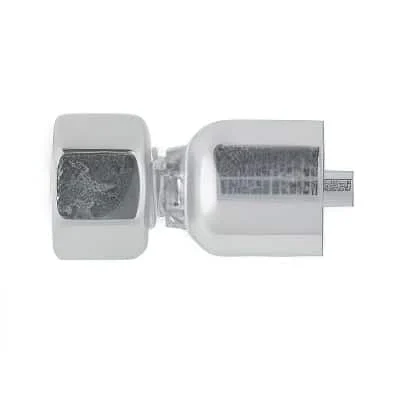

The Parker 1C977-38-24 is a state-of-the-art fitting from the 73 Series, recognized for its innovative Parkrimp design. This permanent (crimp) style fitting allows for quick and easy assembly with the complete range of Parkrimp crimpers, enhancing operational efficiency and safety.
One of the key benefits of the 73 Series is the no-skive assembly method, which eliminates the need to remove the outer cover of the hose. This feature minimizes the risk of premature hose failure often caused by improper skiving, ensuring reliability in high-performance applications.
Specifications
- Part Number: 1C977-38-24
- Series: 73 Series
- Material: Steel with Zinc Dichromate Plating
- Weight: 2.55 lbs
- Compatible Hose: 731 Hose – Parker Hydraulic Spiral Hose
Features and Benefits
- Rapid assembly with the Parkrimp crimping technique
- No-skive design significantly reduces hose failure risk
- Zinc dichromate plating for improved corrosion resistance
- Exceptional durability in a wide range of applications
- Made in USA, adhering to stringent quality standards
Applications
- Hydraulic systems in industrial settings
- Construction and agricultural equipment
- Mobile machinery and vehicle hydraulics
- General purpose hydraulic applications
Quality and Certification
The Parker 1C977-38-24 fitting is manufactured with the highest quality standards in mind. Parker’s rigorous testing and quality assurance processes ensure that each fitting meets or exceeds industry requirements, providing reliable performance across diverse applications.
For unmatched technical support, feel free to contact our product specialists at (800) 823-4937.
