Description

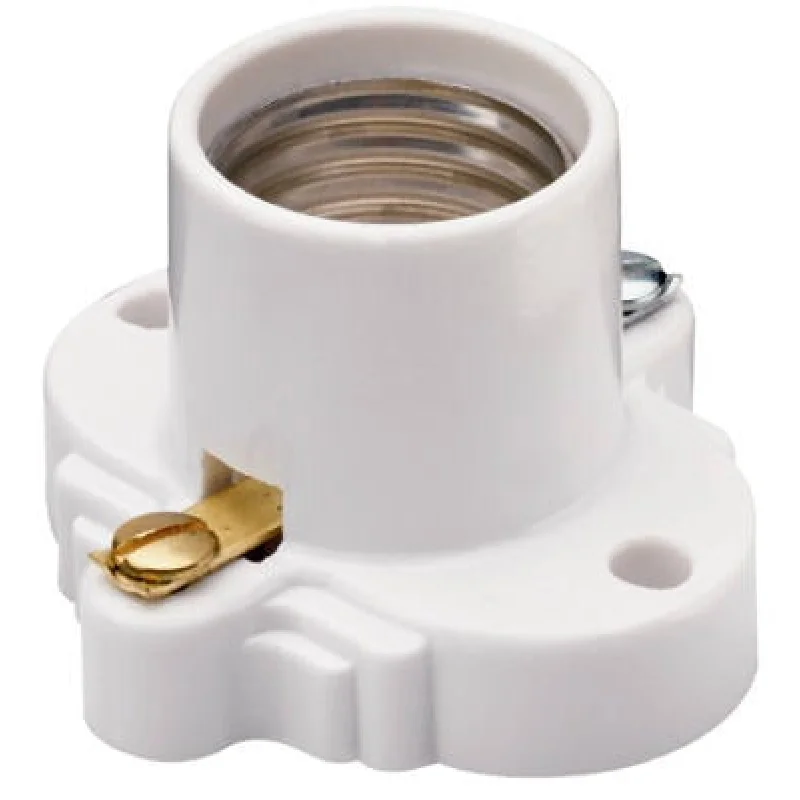

The PASS SEYMOUR S752WCC10 is a keyless medium base cleat socket rated for 660 watts and 250 volts, designed for direct surface mounting in commercial and residential lighting applications. Built from white phenolic, this socket offers solid dielectric properties and heat resistance suited to continuous lamp operation. Front wire screw terminals simplify field wiring without requiring back-wiring tools. Electricians and lighting contractors install this socket where a low-profile, fixed-mount lampholder is required, such as in utility areas, storage rooms, and industrial spaces.
This cleat socket mounts flat against a wall or ceiling surface using its integral cleat base, eliminating the need for a separate lampholder bracket. The keyless design means there is no on-off switching mechanism built in switching is handled upstream at a wall switch or circuit breaker. It accepts standard medium base (E26) lamps. The bulk pack of 10 units suits contractors and service technicians working multiple fixtures or stocking a service vehicle.
Key Features
- 660-watt, 250-volt rating supports a wide range of incandescent and compatible lamp types
- White phenolic construction provides electrical insulation and heat resistance
- Cleat-mount base for direct surface mounting to walls or ceilings
- Front wire screw terminals for straightforward field wiring
- Keyless design no integrated switch, controlled upstream
- Sold in a 10-unit bulk pack for contractor and service use
Compatibility
Designed as an OEM-style replacement or new-installation lampholder for medium base (E26) lamps in residential, commercial, and light industrial surface-mount lighting applications.
Installation Notes
Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify the circuit is dead with a voltmeter before wiring. Secure conductors firmly under the front screw terminals and ensure the cleat base is fastened to a structurally sound surface. Do not exceed the 660-watt or 250-volt ratings when selecting a lamp.
Technical Specifications
- Wattage: 660 watts
- Voltage: 250 volts
- Base Type: Medium Base (E26)
- Socket Type: Cleat Socket
- Switch Type: Keyless
- Wiring: Front Wire Screw Terminals
- Material: Phenolic
- Color: White
- Package Quantity: 10 units
- Unit of Measure: EA
- Weight: 1 pound
Standard Information
- Brand: PASS SEYMOUR
- Manufacturer Part Number: S752WCC10
