Product Overview

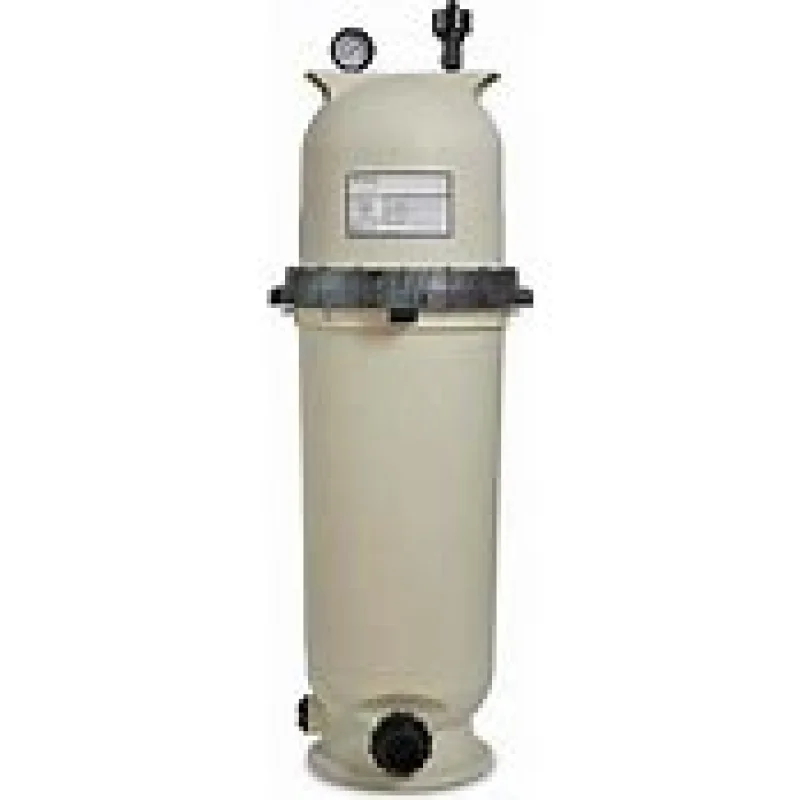

The Pentair Clean & Clear Cartridge Filter 100 (160316) delivers crystal-clear water with simple, hassle-free maintenance. Featuring 100 square feet of effective filtration area and a 100 GPM maximum flow rate, this high-performance cartridge filter captures dirt, debris, and fine particles without requiring backwashing, helping conserve water while maintaining excellent filtration efficiency.
Constructed from a fiberglass-reinforced, chemical-resistant polypropylene tank, the Clean & Clear filter is built to withstand years of outdoor use. Its innovative locking ring design provides quick access to the cartridge for cleaning, while the integrated High Flow Manual Air Relief Valve helps maintain optimal filtration performance. The 160316 includes the genuine Pentair filter cartridge, allowing for quick installation right out of the box.
Key Features
- 100 sq. ft. effective filtration area
- Filter cartridge included
- Maximum flow rate of 100 GPM
- Fiberglass-reinforced polypropylene tank for superior durability
- Corrosion- and chemical-resistant construction
- High Flow Manual Air Relief Valve
- Continuous internal air relief improves filtration efficiency
- Innovative locking ring allows fast cartridge access
- Easy-to-remove cartridge rinses clean with a garden hose
- 2″ plumbing connections for maximum water flow
- No backwashing required, saving water and maintenance time
- NSF/ANSI 50 Certified
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Series | Clean & Clear |
| Manufacturer Part Number | 160316 |
| SKU | 160316 |
| UPC / Barcode | 788379670207 |
| Filter Type | Single Cartridge |
| Effective Filtration Area | 100 sq. ft. |
| Maximum Flow Rate | 100 GPM |
| Maximum Operating Pressure | 50 PSI |
| Maximum Water Temperature | 104F (40C) |
| Plumbing Connections | 2″ |
| Drain Connection | 1-1/2″ |
| Tank Material | Fiberglass-Reinforced Polypropylene |
| Air Relief | High Flow Manual Air Relief Valve |
| Certification | NSF/ANSI 50 |
Ideal For
- Residential in-ground swimming pools
- Pool and spa combinations
- New pool construction
- Equipment upgrades
- Homeowners seeking low-maintenance filtration
- Pools requiring up to 100 GPM system flow
Benefits
- Cartridge included for immediate installation
- Excellent water clarity without DE media
- No backwashing required, reducing water usage
- Quick cartridge cleaning using only a garden hose
- Heavy-duty tank withstands harsh outdoor environments
- Large filtration area extends cleaning intervals
- Easy servicing with Pentair’s quick-lock ring design
- Reliable Pentair performance trusted by pool professionals
What’s Included
- Pentair Clean & Clear 100 Cartridge Filter Tank
- 100 sq. ft. Genuine Pentair Filter Cartridge
- Pressure Gauge
- High Flow Air Relief Valve
- Drain Assembly
- Union Connections
- Installation and Owner’s Manual
Compatibility
Compatible with most residential pool circulation systems utilizing 2-inch plumbing connections. Designed to operate with Pentair and other major pool pumps within the filter’s rated flow capacity. Replacement cartridge elements are readily available through Pentair dealers.
Confirm Before Ordering
Please verify the following before purchasing:
- Desired filtration area is 100 sq. ft.
- Equipment pad has adequate installation height (approximately 61 inches of vertical clearance is required for cartridge removal)
- Existing plumbing uses 2-inch connections
- Maximum system flow does not exceed 100 GPM
- This filter includes the cartridge for complete installation
Warranty Information
Pentair products include a manufacturer’s limited warranty when installed according to Pentair’s guidelines. Warranty coverage may vary depending on the installation type and purchaser. Professional installation is recommended. Refer to Pentair’s official warranty documentation for complete warranty terms and conditions.
