Product Overview

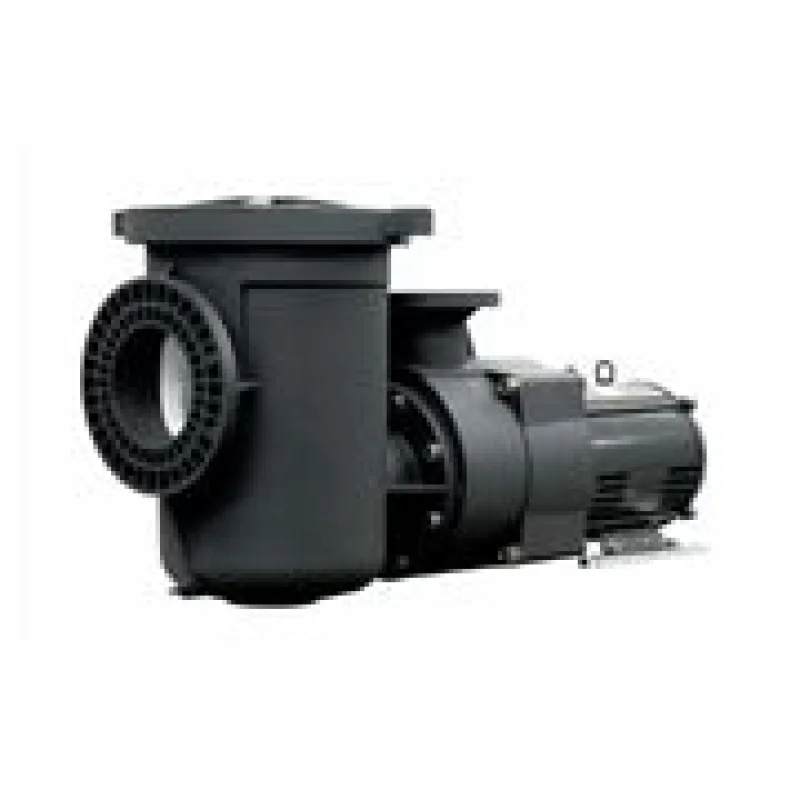

The Pentair EQ Series 340606 EQKT1000 Commercial Plastic Pool Pump is a high-performance 10 HP, three-phase commercial pool pump with an integrated hair and lint strainer. It is designed for commercial swimming pools, aquatic facilities, water parks, and other high-flow water circulation applications.
The EQ Series is built around a non-corrosive, all-plastic hydraulic design that helps improve durability in demanding commercial environments. It is engineered for efficient operation, quiet performance, long motor life, and straightforward servicing.
Key Features
10 HP Commercial Performance
The 340606 is the EQKT1000 10 HP configuration, designed for commercial systems requiring substantial circulation capacity.
208-230/460V Three-Phase Operation
The motor is designed for 208-230/460V three-phase electrical service, making it suitable for a wide range of commercial electrical installations.
TEFC Motor Configuration
Part 340606 is the TEFC version of the EQKT1000, providing added motor protection for demanding commercial equipment-room environments.
Integrated Hair and Lint Strainer
This model includes the Pentair commercial strainer pot to help capture hair, lint, leaves, and other larger debris before they reach the pump.
Corrosion-Resistant Construction
The pump body and major hydraulic components are constructed from non-corrosive PPO resin materials for durability and long service life.
6″ Suction x 4″ Discharge Connections
The strainer-equipped EQ Series configuration uses a 6-inch suction connection and 4-inch discharge connection for high-flow commercial plumbing systems.
Back Pull-Out Design
The pump is designed to allow servicing of internal components without disturbing the connected piping.
Benefits
- 10 HP commercial pool pump
- Three-phase operation
- 208-230/460V electrical compatibility
- TEFC commercial-duty motor
- Includes hair and lint strainer
- Non-corrosive plastic hydraulic construction
- High hydraulic efficiency
- Quiet and stable operation
- Large commercial plumbing connections
- Back pull-out design for easier servicing
- Self-priming when used with the strainer
- Compatible with commercial variable frequency drive applications
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Series | EQ Series |
| Model | EQKT1000 |
| SKU / Part Number | 340606 |
| Barcode / UPC | 788379864767 |
| Application | Commercial Pools / Aquatic Facilities |
| Pump Type | Commercial Plastic Pool Pump with Strainer |
| Horsepower | 10 HP |
| Voltage | 208-230/460V |
| Phase | Three Phase |
| Motor Type | TEFC |
| Full Load Amps | 27.1 / 24.3 / 12.2 A |
| Motor Speed | 3450 RPM |
| Suction Connection | 6″ |
| Discharge Connection | 4″ |
| Strainer Pot | Included |
| Pump Body Material | PPO Resin |
| Impeller Material | PPO Resin |
| Maximum Operating Pressure | 50 PSI |
| Maximum Continuous Water Temperature | 104F |
| Published Weight | Approximately 146 lbs. |
| Dimension A TEFC | Approximately 29.81″ |
| Dimension B | Approximately 10.78″ |
| Dimension C | Approximately 8.50″ |
| Overall Length TEFC | Approximately 46.79″ |
Installation Information
The Pentair EQ Series 340606 is commercial-grade equipment and should be installed by a qualified pool professional and licensed electrician.
Before installation, confirm the required flow rate, total dynamic head, electrical service, motor protection, plumbing dimensions, and available equipment-pad space.
The pump requires proper external thermal overload protection. Pentair also recommends installing the pump in a cool, dry, well-ventilated area and allowing adequate clearance behind the motor for servicing.
Confirm Before Ordering
Please confirm:
- Pentair part number 340606
- Model EQKT1000
- 10 HP requirement
- Three-phase electrical service
- 208-230/460V compatibility
- TEFC motor requirement
- Strainer-equipped configuration
- 6″ suction connection
- 4″ discharge connection
- Required system flow rate
- Total dynamic head
- Available installation space
Commercial pumps should be selected according to the hydraulic requirements of the complete circulation system rather than horsepower alone.
Warranty Information
Warranty coverage is subject to Pentairs current commercial product warranty terms, qualifying installation requirements, application, and purchase channel. Professional commercial installation is recommended.
Customer Q&A
Does Pentair 340606 include the strainer?
Yes. Part 340606 is the EQKT1000 configuration supplied with the commercial hair and lint strainer.
How much horsepower does this pump have?
The Pentair 340606 is rated at 10 HP.
Is the 340606 single phase or three phase?
It is a three-phase commercial pool pump.
What voltage does this pump use?
The motor is designed for 208-230/460V three-phase electrical service.
What is the amperage?
Published full-load amperage is approximately 27.1 amps at 208V, 24.3 amps at 230V, and 12.2 amps at 460V.
What size are the plumbing connections?
The strainer-equipped EQKT1000 uses a 6-inch suction connection and 4-inch discharge connection.
Is this a TEFC motor?
Yes. Part 340606 is the TEFC motor version of the EQKT1000.
What is the maximum operating pressure?
The EQ Series pump is designed to operate at up to 50 PSI.
What is the maximum continuous water temperature?
The maximum continuous water temperature is 104F.
