DISCONTINUED – see R172504

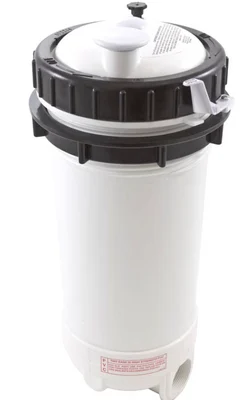

Pentair Filter Canister R172514 Rainbow RTL-50 Top Load 1 1/2 female pipe thread connection.
Rainbow/Pentair RTL-50, model R172514 is a 1-1/2″fpt top load filter.
The diameter of this filter canister is 6-1/2″ The diameter of the hole in the niche is 6-5/8″
For use on portable spas, this filter assembly is designed to mount in a niche so that the main body is under the shell of the spa, while the top is accessed from above the spa.
This complete filter includes a niche lock ring (secures the body to the niche), lid lock ring (secures the lid), push down lever (to secure and release the lid lock ring), 50 sq. ft. cartridge filter, and lid without a chemical feeder. (Lid with chemical feeder is optional – see R172540)
| Manufacturer | Rainbow/Pentair |
| Model | Dynamic RTL |
| Model Number | RTL-50 |
| Number of Cartridges | 1 |
| Size – Square Feet | 50 sq ft |
| Plumbing Connection Size | 1-1/2″ |
| Plumbing Connection Type | Female Pipe Thread (fpt) |
This 50sqft filter canister also replaces 172514 , 788379707804 .
Rainbow topload 50sqft pressure filter assembly.
Other Rainbow filter assembly parts include:
| 1 | Lock Ring, Pentair Rainbow RDC/RTL/Leaf Traps | R172214 |
| 2 | Air Bleed Valve, Pentair Rainbow RDC/RTL/Bromine | R172224X |
| 3 | O-Ring, Buna-N, 3/8″ ID, 1/16″ Cross Section, Generic | O-30 |
| 4 | Gasket, Rainbow RTL/RDC/Bromine, Lid, 2″ ID, 2-7/8″ OD | R172222 |
| 5 | O-Ring, Buna-N, 5-7/8″ ID, 3/16″ Cross Section, Generic | O-330 |
| 5 | O-Ring, Viton, 5-7/8″ ID, 3/16″ Cross Section, Generic | 360-VT75BR |
| 6 | Cartridge, 25sqft, 2-1/8″ot, 2-1/8″ob,4-15/16″,13-5/16″ 3oz | FC-2375 |
| 6 | Cartridge, 25sqft,2-1/8″ot,2-1/8″ob,4-15/16″,13-5/16″ 3oz MB | FC-2375M |
| 6 | Cartridge, 25sqft,2-1/8″ot,2-1/8″ob,4-15/16″,13-5/16″,PB | H42513 |
| 6 | Cartridge, 50sqft, 2-1/8″ot, 2-1/8″ob, 4-15/16″,13-5/16″ 3oz | H40506 |
| 6 | Cartridge, 50sqft,2-1/8″ot,2-1/8″ob,4-15/16″,13-5/16″ 3oz MB | FC-2390M |
| 6 | Cartridge, 75sqft, 2-1/8″ot, 2-1/8″ob, 4-15/16″, 20-1/8″ 3oz | FC-2395 |
| 6 | Cartridge, 75sqft, 2-1/8″ot, 2-1/8″ob, 4-15/16″, 20-1/8″,PB | H40751 |
| 6 | Cartridge, 100sqft, 2-1/8″ot,2-1/8″ob,4-15/16″,26-11/16″ 3oz | FC-2397 |
| 7 | Bypass Plug, Pentair Rainbow RDC/RTL, 1-1/2″ | R172225X |
| 7 | Bypass Plug, Pentair Rainbow RDC/RTL, 2″ | R172679 |
| 8 | Bypass Plug, Pentair Rainbow RDC/RTL/DSF, 1-1/2″ | R172226X |
| 10 | Locking Flange, Pentair Rainbow RTL/Dynamic IV | R172370 |
| 12 | Push Down Lever, Pentair Rainbow RTL | R172374 |
| 13 | Safety Latch Screw, Pentair Rainbow RTL | R172375 |
| 14 | Tank Body, Pentair Rainbow RTL 50, 1-1/2″ Slip | R172388 |
| 14 | Tank Body, Pentair Rainbow RTL 50, 2″ Slip | R172428 |
| 14 | Tank Body, Pentair Rainbow RTL 75, 2″ Slip | R172638 |
| 15 | Tank Lid, Pentair Rainbow RTL | R172385 |
| 16 | Tank Base, Pentair Rainbow RTL | R172452 |
| Chemical Dispenser, Pentair Rainbow RTL/Bromine | R172540 | |
| Niche,Filter,Rainbow/Pentair,Top Load,w/Flat Lid,White | R172542WH | |
| Filter Niche Lid, Pentair Rainbow, Top Load, White | R172611WH | |
| Filter Niche Lid,Pent Rainbow,Top Load,10″L x 10″W x .3H,Blk | R172611BK | |
| 17 | Cartridge Filter, Pentair Rainbow RTL-25, Top Load, 1-1/2″s | R172502 |
| 17 | Cartridge Filter, Pentair Rainbow RTL-25, Top Load, 2″ Slip | R172502J |
| 17 | Cartridge Filter, Pentair Rainbow RTL-50, Top Load,1-1/2″fpt | R172514 |
| 17 | Cartridge Filter, Pentair Rainbow RTL-50, Top Load, 1-1/2″s | R172504 |
| 17 | Cartridge Filter, Pentair Rainbow RTL-50, Top Load, 2″ Slip | R172504B |
| 17 | Cartridge Filter, Pentair Rainbow RTL-75, Top Load, 2″ Slip | R172503 |
| 17 | Cartridge Filter, Pentair Rainbow RTL-100, Top Load, 2″ Slip | R172505 |
| 17 | Cartridge Filter, Pentair Rainbow Hi-Flo, RCF-75S | R172503C |
| Ro-Kit 251, Rainbow In-Line and Top Load Filters | RO-KIT 251 |
