Description

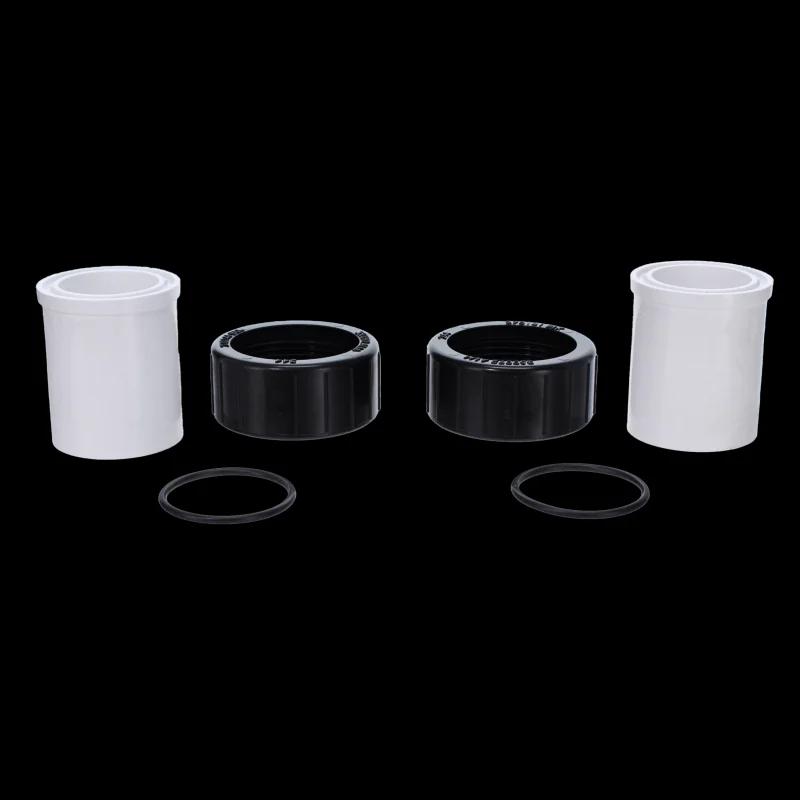

The Pentair SuperMax Union Kit (351157) is the OEM replacement 1-1/2″ union kit for the Pentair SuperFlo, SuperMax, IntelliFlo3 VSF, and IntelliPro3 VSF pump series.
IMPORTANT: KIT CONTENTS 2 COMPLETE UNION ASSEMBLIES INCLUDED
This kit includes 2 each of Items 8, 9, and 15 enough to plumb both the inlet and outlet ports of a single pump. This is a complete kit for one pump installation; do not order this kit expecting a single union.
IMPORTANT: QUANTITY REQUIRED 2 KITS PER SYSTEM FOR SOME MODELS
For SuperFlo VS, SuperFlo VST, and SuperMax VS variable speed pump models, Pentair parts documentation specifies 2 kits required per pump installation. Verify the quantity needed for your specific model before ordering.
This union kit provides the complete plumbing connection points at the suction and discharge ports of your Pentair pump, allowing the pump to be disconnected from the plumbing system without cutting pipe. Each union assembly accepts 1-1/2″ internal slip on the pump port side and 2″ external slip on the plumbing side.
Specifications
| Pentair Part Number | 351157 |
| Part Name | SuperMax Union Kit |
| Connection Size | 1-1/2″ Internal Slip x 2″ External Slip |
| Quantity Included | Kit 2 each of Items 8, 9, and 15 |
| Unit of Measure | Kit |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | SuperFlo DOE | 348190 | Replacement parts for Product 348190; includes items 2426 |
| Pentair | IntelliFlo3 / IntelliPro3 VSF | IntelliFlo3 | 1.5 HP models only |
| Pentair | IntelliFlo3 / IntelliPro3 VSF | IntelliPro3 | 1.5 HP models only |
| Pentair | IntelliFlo3 VSF | 011065 | 1.5 HP IntelliFlo3 VSF; 1-1/2″ x 2″ union kit; includes 2 unions |
| Pentair | IntelliFlo3 VSF | 011066 | 1.5 HP IntelliFlo3 VSF with relay board; 1-1/2″ x 2″ union kit; includes 2 unions |
| Pentair | IntelliFlo3 VSF | 011067 | 1.5 HP IntelliFlo3 VSF with touchscreen; 1-1/2″ x 2″ union kit; includes 2 unions |
| Pentair | IntelliFlo3 VSF | 011068 | 1.5 HP IntelliFlo3 VSF with touchscreen and relay board; 1-1/2″ x 2″ union kit; includes 2 unions |
| Pentair | IntelliPro3 VSF | 013065 | 1.5 HP; 1-1/2″ Internal Slip x 2″ External Slip union kit |
| Pentair | IntelliPro3 VSF | 013066 | 1.5 HP with relay board; 1-1/2″ Internal Slip x 2″ External Slip union kit |
| Pentair | IntelliPro3 VSF | 013067 | 1.5 HP with touchscreen; 1-1/2″ Internal Slip x 2″ External Slip union kit |
| Pentair | IntelliPro3 VSF | 013068 | 1.5 HP with touchscreen and relay board; 1-1/2″ Internal Slip x 2″ External Slip union kit |
| Pentair | SuperFlo VS/VST | SUPERFLO VS | Includes items 2527; 2 kits required per pump |
| Pentair | SuperFlo VS/VST | SUPERFLO VST | Includes items 2527; 2 kits required per pump |
| Pentair | SuperMax | SUPERMAX VS | SuperFlo/SuperMax Union Kit; includes items 2527; 2 kits required per pump |
| Pentair | SuperFlo VS/VST | SUPERFLO VS/VST | SuperFlo/SuperMax Union Kit; includes items 2527; 2 kits required per pump |
| Pentair | SuperFlo | 354803S | SuperFlo 3/4 HP Single Speed Motor; includes items 8, 9 & 15 (2 of each) |
| Pentair | SuperFlo | 354821S | SuperFlo 1 HP Single Speed Motor; includes items 8, 9 & 15 (2 of each) |
| Pentair | SuperFlo | 354823S | SuperFlo 1-1/2 HP Single Speed Motor; includes items 8, 9 & 15 (2 of each) |
| Pentair | SuperFlo | 354815S | SuperFlo 2 HP Single Speed Motor; includes items 8, 9 & 15 (2 of each) |
| Pentair | SuperFlo | 348022 | SuperFlo Energy Efficient Single-Speed; 1-1/2″ Internal Slip x 2″ External Slip; includes 2 unions |
| …and additional compatible models. Verify your model number with your equipment manual before ordering. |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment’s manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing your union kit, inspect the union O-rings at the same time they are the most common source of a weeping union connection. If the O-rings show any cracking, flattening, or deformation, replace them before reassembling. Hand-tighten the union nuts only; over-tightening can crack the union body. If you’re servicing a SuperFlo VS, SuperFlo VST, or SuperMax VS variable speed pump, note that Pentair documentation specifies 2 kits for a complete installation confirm your quantity before ordering.
