Description

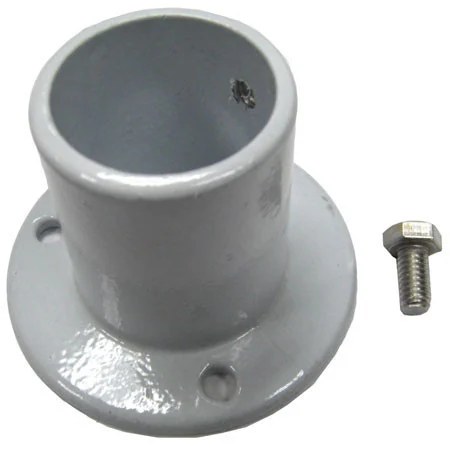

Perma-Cast PF-2115-L Aluminum Deck Flange for Above Ground 1.5″ Diameter Rail
OPTIMUS6020A PERMA-CASTPF-2115-L
GENERAL DESCRIPTION: THIS IS A ROUND FLANGE WHICH MOUNTS ON TOP OF THE DECK USED FOR A RAIL OR LADDER WITH A RAIL OUTSIDE DIAMETER OF 1-1/2″ THIS IS ALMOST ALWAYS USED WITH ABOVE GROUND EQUIPMENT
DETAILED DESCRIPTION: MATERIAL: ALUMINUM FLANGE, STAINLESS STEEL BOLT COLOR: WHITE SHAPE: ROUND, WITH A FLAT FLANGE ON THE BOTTOM THE FLANGE HAS 3 MOUNTING HOLES THERE IS A THREADED HOLE IN THE FLANGE BODY WITH THE CENTER OF THE HOLE AT 5/8″ FROM THE TOP THIS IS FOR THE BOLT WHICH SCREWS IN TO HOLD THE RAIL
DIMENSIONS: OUTSIDE DIAMETER: 3-3/8″ (BOTTOM MOUNTING FLANGE) OUTSIDE DIAMETER: 1-3/8″ (TOP OF FLANGE) INSIDE DIAMETER: 1-9/16″ (TOP INSIDE) HEIGHT: 2-3/8″ MOUNTING HOLES: 2-5/8″ DIAMETER ON THE BOLT RING THERE ARE A TOTAL OF 3 HOLES THE CENTER TO CENTER MEASUREMENT FROM ON HOLE TO ANOTHER IS 2-5/16″
INCLUDES: MOUNTING FLANGE AND BOLT
