Description

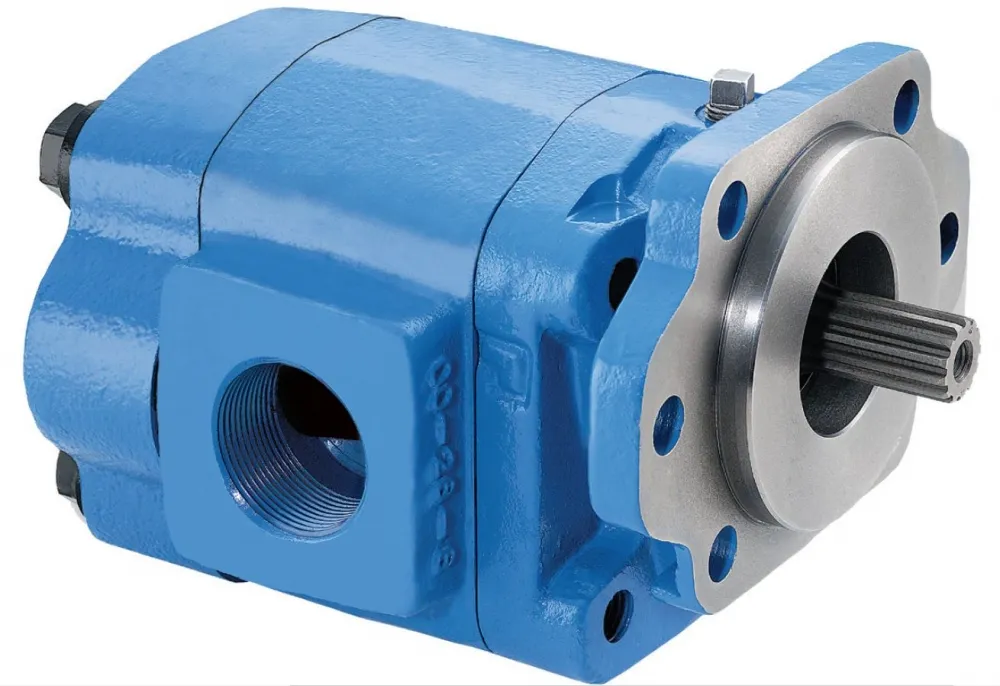

Permco P5151 Series Gear Pump: 23.0 GPM
Permco 5151 Tech Specifications
Permco Model No. P5151A224AAXK20-54
Common Applications:
- Roll-off
- Snow and Ice Control
- Low Boy/Transfer Trailers
Product Specifications:
- 5.15 ci displacement
- 2.00″ gear width
- 2400 max RPM
- 2500 max PSI
- SAE “B” 2 & 4 Bolt Mounting Flange
- 1 1/2″ Rear NPT Ports
- 1 1/4″ Side NPT Ports
- Bi-Rotation
- SAE ‘B’, 7/8″ DIA.-13 Tooth Spline Shaft
Dimensions:
- (A) – 6.88″
- (B) – 2.75″
- (C) – 4.75″
Comparable to Muncie model PL23-2BPBB
