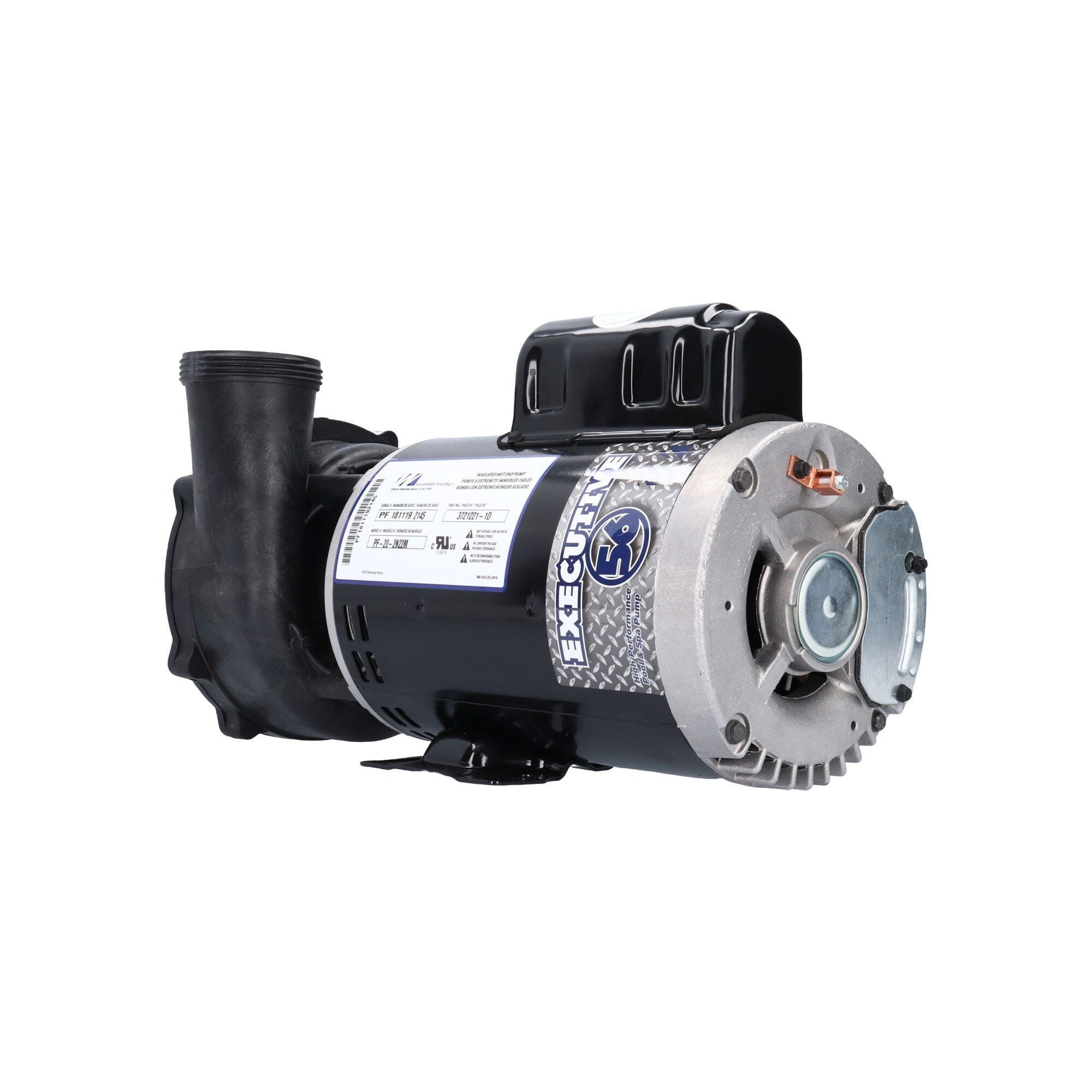

The Waterway Executive 56 is a 3.0 HP, 2-speed water pump designed for high performance and durability. Featuring a 56-frame motor and a large intake, it delivers improved flow with reduced noise and enhanced motor life.
Pump, Waterway Executive 56, 3.0HP, 230V, 10.0/3.4A, 2-Speed, 2″MBT, SD, 56-Frame
- Horsepower: 3.0 HP
- Voltage: 230 V
- Amperage: 10.0 / 3.4 A (two speeds)
- Speed: 2-Speed motor with four sets of insulated windings for high performance
- Frame Size: 56-frame motor for added strength and cooler operation
- Intake & Discharge: 2″ MBT (Male Buttress Thread)
- Flow Rate: 215 GPM
- Wet End Design: Executive wet end fits 48 & 56-frame motors; large 2″ and 2½” intake for improved flow and reduced noise
- Wet End Diameter: Large 6½” diameter for higher head pressure
- Bearings: Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Seals and Materials: Silicone carbide seals, Viton bellows, 316 stainless steel casing
- Motor Protection: Thermally protected to extend motor life
- Energy Efficiency: Split capacitor (start and run) design for less energy consumption
- Wet End Versatility: Can be rotated every 90° for installation flexibility
- Note: Does not include unions or pump cord
- Product Change Notification: Two of the three drain plugs on the wet end have been removed to meet demand; side ports can be drilled and tapped if needed
- Alternate Part Numbers: 1-00-0107, WW37212211D, 37212211D, PF-30-2N22C, 15-350-0030, HTO-3721221-1D, WWP3721221-1D, 1-P230E52024, 1404036, 301910, 3721221, 3M21221, 404036, 5039-306, WWP-10-1454
