Description

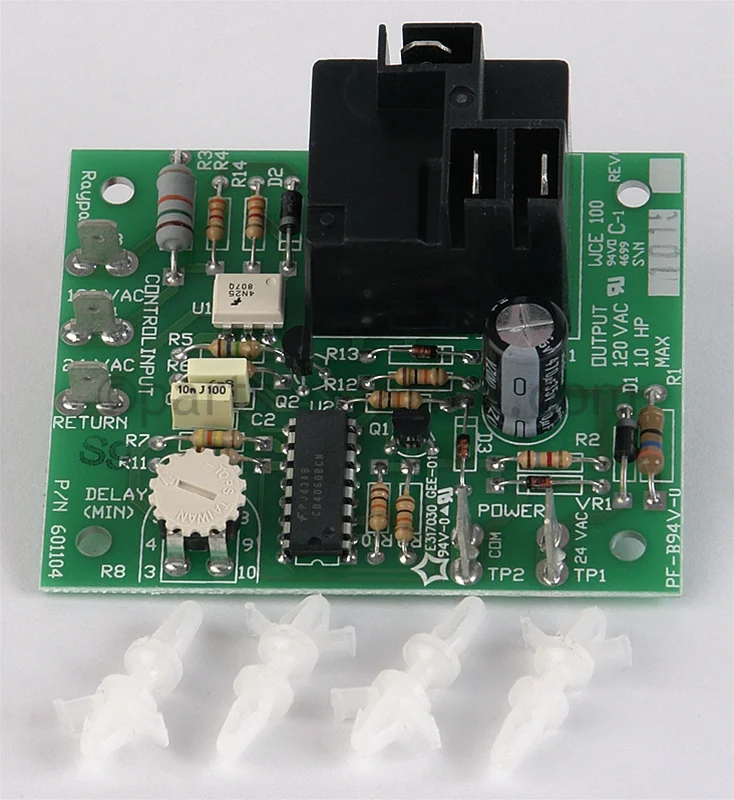

Raypak 004675F Economaster II Boardpump Delay ADJ 3-10 MinThe Raypak Economaster II is a solid-state timedelay relay which regulates pump operation to optimize system efficiency and reduce operatingcosts. It activates the pump as needed to support hot water demand, and shuts the pump down only after evacuating the boilers residual heat to the heating system or hot water storage tank.The Economaster II saves money in several ways.Electrical costs are reduced,
Technical Specification
ELECTRICAL DATAAdjustable Timing: 3 to 10 minutes (Factory set at 7 minutes)Input Power (Primary): 24 VAC 50/60 HzInput Signal (Controller): 24 VAC or 120 VACOutput (SPST Relay): Load – Up to 10 Amp-120 VAC Single Phase*Ambient Temperature: -67F to 힟* Motors larger than 3/4 HP and three-phase current require a contactor or motor starterequipped with a 120 VAC coil.SUGGESTED SPECIFICATIONThe Economaster II pump delay controller shall maintain pump operation until all usable heatfrom the combustion chamber is absorbed into the system or storage tank. It shall be adjustablefrom 3 to 10 minutes to facilitate fine tuning to the specific system. Fits Models: 1262, H1-0133A, H1-0514, H1-0624, H1-0724, H1-0824, H1-0926, H1-0962, H1-1083, H1-1125, H1-1178, H1-1223, H1-1287, H1-1336, H1-1414, H1-1468, H1-1571, H1-1631, H1-1758, H1-1826, H2-0514, H2-0624, H2-0724, H2-0824, H2-0926, H2-0962, H2-1083, H2-1125, H2-1178, H2-1223, H2-1287, H2-1336, H2-1414, H2-1468, H2-1571, H2-1631, H2-1758, H2-1826, H3-0122, H3-0162, H3-0202, H3-0242, H3-0302, H3-0302A, H3-0302B, H3-0322, H3-0402, H3-0402A, H3-0402B, H3-0502, H3-0502A, H3-0502B, H3-0514, H3-0624, H3-0652, H3-0652A, H3-0652B, H3-0724, H3-0752, H3-0752A, H3-0752B, H3-0824, H3-0902, H3-0902A, H3-0902B, H3-0926, H3-0962, H3-0992, H3-0992A, H3-0992B, H3-1083, H3-1125, H3-1178, H3-1223, H3-1262, H3-1262A, H3-1262B, H3-1287, H3-1336, H3-1414, H3-1468, H3-1532, H3-1532A, H3-1532B, H3-1571, H3-1631, H3-1758, H3-1802, H3-1802A, H3-1802B, H3-1826, H3-2002, H3-2002A, H3-2002B, H3-2072, H3-2072A, H3-2072B, H3-2342, H3-2342A, H3-2342B, H4-0302, H4-0302A, H4-0302B, H4-0334, H4-0402, H4-0402A, H4-0402B, H4-0404, H4-0502, H4-0502A, H4-0502B, H4-0514, H4-0624, H4-0652, H4-0652A, H4-0652B, H4-0724, H4-0752, H4-0752A, H4-0752B, H4-0824, H4-0902, H4-0902A, H4-0902B, H4-0926, H4-0962, H4-0992, H4-0992A, H4-0992B, H4-1083, H4-1125, H4-1178, H4-1223, H4-1262, H4-1262A, H4-1262B, H4-1287, H4-1336, H4-1414, H4-1468, H4-1532, H4-1532A, H4-1532B, H4-1571, H4-1631, H4-1758, H4-1802, H4-1802A, H4-1802B, H4-1826, H4-2002, H4-2002A, H4-2002B, H4-2072, H4-2072A, H4-2072B, H4-2342, H4-2342A, H4-2342B, H5-0514, H5-0624, H5-0724, H5-0824, H5-0926, H5-0962, H5-1083, H5-1125, H5-1178, H5-1223, H5-1287, H5-1336, H5-1414, H5-1468, H5-1571, H5-1631, H5-1758, H5-1826, H6-0514, H6-0624, H6-0724, H6-0824, H6-0926, H6-0962, H6-1083, H6-1125, H6-1178, H6-1223, H6-1287, H6-1336, H6-1414, H6-1468, H6-1571, H6-1631, H6-1758, H6-1826, H8-0992A, H8-1262A, H8-1532A, H8-1802A, H8-2002A, H8-2072A, H8-2342A, H9-0302A, H9-0302B, H9-0402A, H9-0402B, H9-0502A, H9-0502B, H9-0652A, H9-0652B, H9-0752A, H9-0752B, H9-0902A, H9-0902B, H9-0992, H9-0992A, H9-0992B, H9-1262, H9-1262A, H9-1262B, H9-1532, H9-1532A, H9-1532B, H9-1802, H9-1802A, H9-1802B, H9-2002, H9-2002A, H9-2002B, H9-2072, H9-2072A, H9-2072B, H9-2342, H9-2342A, H9-2342B, N-0334, N-0404, N-0514, N-0624, N-0724, N-0824, N-0926, N-0962, N-1083, N-1125, N-1178, N-1223, N-1287, N-1336, N-1414, N-1468, N-1571, N-1631, N-1758, N-1826, NH-0334, NH-0404, NH-0514, NH-0624, NH-0724, NH-0824, NH-0926, NH-0962, NH-1083, NH-1125, NH-1178, NH-1223, NH-1287, NH-1336, NH-1414, NH-1468, NH-1571, NH-1631, NH-1758, NH-1826, P-0122, P-0162, P-0202, P-0242, P-0302, P-0302A, P-0302B, P-0322, P-0402, P-0402A, P-0402B, P-0502, P-0502A, P-0502B, P-0652, P-0652A, P-0652B, P-0752, P-0752A, P-0752B, P-0902, P-0902A, P-0902B, P-0926, P-0962, P-0992, P-0992A, P-0992B, P-1083, P-1125, P-1178, P-1223, P-1262, P-1262A, P-1262B, P-1287, P-1336, P-1414, P-1468, P-1532, P-1532A, P-1532B, P-1571, P-1758, P-1802, P-1802A, P-1802B, P-1826, P-2002, P-2002A, P-2002B, P-2072, P-2072A, P-2072B, P-2100, P-2342, P-2342A, P-2342B, P-2500, P-3001, P-3500, P-4001, R-0334, R-0404, R-0514, R-0624, R-0724, R-0824, R-0926, R-0962, R-1083, R-1125, RH-0334, RH-0404, RH-0514, RH-0624, RH-0724, RH-0824, RH-1083, RH-1125, RH-926, RH-962, W1-0122, W1-0133A, W1-0162, W1-0202, W1-0242, W1-0302, W1-0322, W1-0334, W1-0402, W1-0404, W1-0502, W1-0514, W1-0624, W1-0652, W1-0724, W1-0752, W1-0824, W1-0902, W1-0926, W1-0962, W1-0992, W1-1083, W1-1125, W1-1178, W1-1223, W1-1262, W1-1287, W1-1336, W1-1414, W1-1468, W1-1532, W1-1571, W1-1631, W1-1758, W1-1802, W1-1826, W1-2002, W1-2072, W1-2342, W2-0133A, W2-0334, W2-0404, W2-0514, W2-0624, W2-0724, W2-0824, W2-0926, W2-0962, W2-1083, W2-1125, W2-1178, W2-1223, W2-1287, W2-1336, W2-1414, W2-1468, W2-1571, W2-1631, W2-1758, W2-1826, W3-0122, W3-0162, W3-0202, W3-0242, W3-0302, W3-0322, W3-0402, W3-0502, W3-0514, W3-0624, W3-0652, W3-0724, W3-0752, W3-0824, W3-0902, W3-0926, W3-0962, W3-0992, W3-1083, W3-1125, W3-1178, W3-1223, W3-1262, W3-1287, W3-1336, W3-1414, W3-1468, W3-1532, W3-1571, W3-1631, W3-1758, W3-1802, W3-1826, W3-2002, W3-2072, W3-2342, W9-0992, W9-1262, W9-1532, W9-1802, W9-2002, W9-2072, W9-2342, WH-0260, WH-0261, WH-0330, WH-0331, WH-0400, WH-0401, WH1-0122, WH1-0133A, WH1-0162, WH1-0202, WH1-0242, WH1-0302, WH1-0302A, WH1-0302B, WH1-0322, WH1-0334, WH1-0399, WH1-0402, WH1-0402A, WH1-0402B, WH1-0404, WH1-0502, WH1-0502A, WH1-0502B, WH1-0514, WH1-0624, WH1-0652, WH1-0652A, WH1-0652B, WH1-0724, WH1-0752, WH1-0752A, WH1-0752B, WH1-0824, WH1-0902, WH1-0902A, WH1-0902B, WH1-0926, WH1-0962, WH1-0992, WH1-0992A, WH1-0992B, WH1-1083, WH1-1125, WH1-1178, WH1-1223, WH1-1262, WH1-1262A, WH1-1262B, WH1-1287, WH1-1336, WH1-1414, WH1-1468, WH1-1532, WH1-1532A, WH1-1532B, WH1-1571, WH1-1631, WH1-1758, WH1-1802, WH1-1802A, WH1-1802B, WH1-1826, WH1-2002, WH1-2002A, WH1-2002B, WH1-2072, WH1-2072A, WH1-2072B, WH1-2342, WH1-2342A, WH1-2342B, WH2-0133A, WH2-0334, WH2-0404, WH2-0514, WH2-0624, WH2-0724, WH2-0824, WH2-0926, WH2-0962, WH2-1083, WH2-1125, WH2-1178, WH2-1223, WH2-1287, WH2-1336, WH2-1414, WH2-1468, WH2-1571, WH2-1631, WH2-1758, WH2-1826, WH3-0122, WH3-0162, WH3-0202, WH3-0242, WH3-0302, WH3-0302A, WH3-0302B, WH3-0322, WH3-0402, WH3-0402A, WH3-0402B, WH3-0499, WH3-0502, WH3-0502A, WH3-0502B, WH3-0514, WH3-0624, WH3-0649, WH3-0652, WH3-0652A, WH3-0652B, WH3-0724, WH3-0749, WH3-0752, WH3-0752A, WH3-0752B, WH3-0824, WH3-0899, WH3-0902, WH3-0902A, WH3-0902B, WH3-0926, WH3-0962, WH3-0992, WH3-0992A, WH3-0992B, WH3-1083, WH3-1125, WH3-1178, WH3-1223, WH3-1262, WH3-1262A, WH3-1262B, WH3-1287, WH3-1336, WH3-1414, WH3-1468, WH3-1532, WH3-1532A, WH3-1532B, WH3-1571, WH3-1631, WH3-1758, WH3-1802, WH3-1802A, WH3-1802B, WH3-1826, WH3-2002, WH3-2002A, WH3-2002B, WH3-2072, WH3-2072A, WH3-2072B, WH3-2342, WH3-2342A, WH3-2342B, WH8-0992A, WH8-1262A, WH8-1532A, WH8-1802A, WH8-2002A, WH8-2072A, WH8-2342A, WH9-0302A, WH9-0302B, WH9-0402A, WH9-0402B, WH9-0502A, WH9-0502B, WH9-0652A, WH9-0652B, WH9-0752A, WH9-0752B, WH9-0902A, WH9-0902B, WH9-0992, WH9-0992A, WH9-0992B, WH9-1262, WH9-1262A, WH9-1262B, WH9-1532, WH9-1532A, WH9-1532B, WH9-1802, WH9-1802A, WH9-1802B, WH9-2002, WH9-2002A, WH9-2002B, WH9-2072, WH9-2072A, WH9-2072B, WH9-2342, WH9-2342A, WH9-2342B
