Description

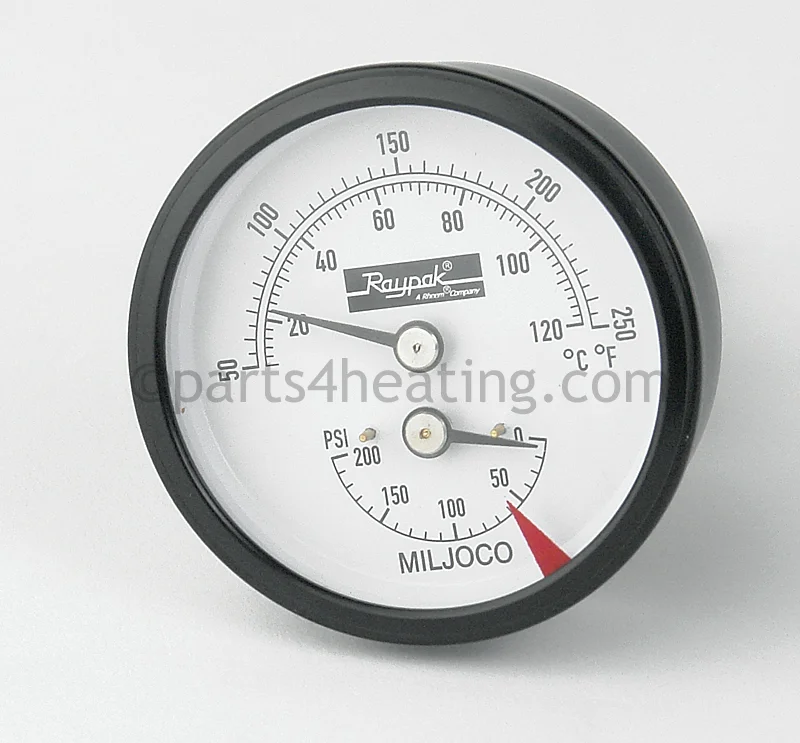

RAYPAK 007399F Temperature & Pressure Gauge-Kit
Technical Specification
0-200 PSI/KPA, 50-250F/C, 1/2″NPT
3-3/4″ Shaft Overall Length
And (2 different lengths over the years)
2-7/8″ Shaft Overall Length
Fits Models: 0199, 0202, 0260, 0266, 0330, 0332, 0400, 0402, 0510, 0516, 0602, 0625, 0725, 0825, 0989B, 1259B, 1262, 183, 263, 333, 403, B-263, C-183, C-263, H3-0302, H3-0302A, H3-0302B, H3-0402, H3-0402A, H3-0402B, H3-0502, H3-0502A, H3-0502B, H3-0504, H3-0652, H3-0652A, H3-0652B, H3-0752, H3-0752A, H3-0752B, H3-0754, H3-0902, H3-0902A, H3-0902B, H3-0992, H3-0992A, H3-0992B, H3-1104, H3-1262, H3-1262A, H3-1262B, H3-1262C, H3-1504, H3-1532, H3-1532A, H3-1532B, H3-1532C, H3-1802, H3-1802A, H3-1802B, H3-1802C, H3-2002, H3-2002A, H3-2002B, H3-2002C, H3-2004, H3-2072, H3-2072A, H3-2072B, H3-2072C, H3-2342, H3-2342A, H3-2342B, H3-2342C, H3-302C, H3-402C, H3-502C, H3-652C, H3-752C, H3-902C, H3-992C, H4-0302, H4-0302A, H4-0302B, H4-0402, H4-0402A, H4-0402B, H4-0502, H4-0502A, H4-0502B, H4-0652, H4-0652A, H4-0652B, H4-0752, H4-0752A, H4-0752B, H4-0902, H4-0902A, H4-0902B, H4-0992, H4-0992A, H4-0992B, H4-1262, H4-1262A, H4-1262B, H4-1532, H4-1532A, H4-1532B, H4-1802, H4-1802A, H4-1802B, H4-2002, H4-2002A, H4-2002B, H4-2072, H4-2072A, H4-2072B, H4-2342, H4-2342A, H4-2342B, H7-0300, H7-0400, H7-0500, H7-0503A, H7-0504, H7-0504A, H7-0700, H7-0753A, H7-0754, H7-0754A, H7-0850, H7-1000B, H7-1003, H7-1003A, H7-1005, H7-1005A, H7-1104, H7-1104A, H7-1253, H7-1253A, H7-1503, H7-1503A, H7-1504, H7-1504A, H7-1505, H7-1505A, H7-1753, H7-1753A, H7-2003, H7-2003A, H7-2004, H7-2004A, H7-2005, H7-2005A, H7-300B, H7-400B, H7-500B, H7-503, H7-650B, H7-753, H7-800B, H8-0992A, H8-1262A, H8-1532A, H8-1802A, H8-2002A, H8-2072A, H8-2342A, H9-0302A, H9-0302B, H9-0402A, H9-0402B, H9-0502A, H9-0502B, H9-0504, H9-0652A, H9-0652B, H9-0752A, H9-0752B, H9-0754, H9-0902A, H9-0902B, H9-0992, H9-0992A, H9-0992B, H9-1104, H9-1262, H9-1262A, H9-1262B, H9-1504, H9-1529B, H9-1532, H9-1532A, H9-1532B, H9-1799B, H9-1802, H9-1802A, H9-1802B, H9-1999B, H9-2002, H9-2002A, H9-2002B, H9-2004, H9-2069B, H9-2072, H9-2072A, H9-2072B, H9-2339B, H9-2342, H9-2342A, H9-2342B, N-0334, N-0404, N-0514, N-0624, N-0724, N-0824, N-0926, N-0962, N-1083, N-1125, N-1178, N-1223, N-1287, N-1336, N-1414, N-1468, N-1571, N-1631, N-1758, N-1826, NH-0926, NH-0962, NH-1083, NH-1125, NH-1178, NH-1223, NH-1287, NH-1336, NH-1414, NH-1468, NH-1571, NH-1631, NH-1758, NH-1826, P-0122, P-0162, P-0202, P-0242, P-0302, P-0302A, P-0302B, P-0322, P-0402, P-0402A, P-0402B, P-0502, P-0502A, P-0502B, P-0504, P-0504A, P-0652, P-0652A, P-0652B, P-0752, P-0752A, P-0752B, P-0754, P-0754A, P-0902, P-0902A, P-0902B, P-0926, P-0962, P-0992, P-0992A, P-0992B, P-1005A, P-1083, P-1104, P-1104A, P-1125, P-1178, P-1223, P-1262, P-1262A, P-1262B, P-1262C, P-1287, P-1336, P-1414, P-1468, P-1504, P-1504A, P-1505A, P-1532, P-1532A, P-1532B, P-1532C, P-1571, P-1758, P-1802, P-1802A, P-1802B, P-1802C, P-1826, P-2002, P-2002A, P-2002B, P-2002C, P-2004, P-2004A, P-2005A, P-2072, P-2072A, P-2072B, P-2072C, P-2100, P-2342, P-2342A, P-2342B, P-2342C, P-2500, P-2505, P-3001, P-3005, P-302C, P-3500, P-3505, P-4001, P-4005, P-402C, P-502C, P-652C, P-752C, P-902C, P-992C, R-0334, R-0404, R-0514, R-0624, R-0724, R-0824, R-0926, R-0962, R-1083, R-1125, RH-1083, RH-1125, RH-926, RH-962, W1-0122, W1-0133A, W1-0162, W1-0202, W1-0242, W1-0302, W1-0322, W1-0334, W1-0402, W1-0404, W1-0502, W1-0514, W1-0624, W1-0652, W1-0724, W1-0752, W1-0824, W1-0902, W1-0926, W1-0962, W1-0992, W1-1083, W1-1125, W1-1178, W1-1223, W1-1262, W1-1287, W1-1336, W1-1414, W1-1468, W1-1532, W1-1571, W1-1631, W1-1758, W1-1802, W1-1826, W1-2002, W1-2072, W1-2342, W2-0133A, W2-0334, W2-0404, W2-0514, W2-0624, W2-0724, W2-0824, W2-0926, W2-0962, W2-1083, W2-1125, W2-1178, W2-1223, W2-1287, W2-1336, W2-1414, W2-1468, W2-1571, W2-1631, W2-1758, W2-1826, W3-0122, W3-0162, W3-0202, W3-0242, W3-0302, W3-0322, W3-0402, W3-0502, W3-0514, W3-0624, W3-0652, W3-0724, W3-0752, W3-0824, W3-0902, W3-0926, W3-0962, W3-0992, W3-1083, W3-1125, W3-1178, W3-1223, W3-1262, W3-1287, W3-1336, W3-1414, W3-1468, W3-1532, W3-1571, W3-1631, W3-1758, W3-1802, W3-1826, W3-2002, W3-2072, W3-2342, W7-0300, W7-0400, W7-0500, W7-0700, W7-0850, W9-0992, W9-1262, W9-1532, W9-1802, W9-2002, W9-2072, W9-2342, WH1-0122, WH1-0133A, WH1-0162, WH1-0202, WH1-0242, WH1-0302, WH1-0302A, WH1-0302B, WH1-0322, WH1-0334, WH1-0399, WH1-0402, WH1-0402A, WH1-0402B, WH1-0404, WH1-0502, WH1-0502A, WH1-0502B, WH1-0504, WH1-0514, WH1-0624, WH1-0652, WH1-0652A, WH1-0652B, WH1-0724, WH1-0752, WH1-0752A, WH1-0752B, WH1-0754, WH1-0824, WH1-0902, WH1-0902A, WH1-0902B, WH1-0926, WH1-0962, WH1-0992, WH1-0992A, WH1-0992B, WH1-1083, WH1-1104, WH1-1125, WH1-1178, WH1-1223, WH1-1262, WH1-1262A, WH1-1262B, WH1-1287, WH1-1336, WH1-1414, WH1-1468, WH1-1504, WH1-1532, WH1-1532A, WH1-1532B, WH1-1571, WH1-1631, WH1-1758, WH1-1802, WH1-1802A, WH1-1802B, WH1-1826, WH1-2002, WH1-2002A, WH1-2002B, WH1-2004, WH1-2072, WH1-2072A, WH1-2072B, WH1-2342, WH1-2342A, WH1-2342B, WH2-0133A, WH2-0926, WH2-0962, WH2-1083, WH2-1125, WH2-1178, WH2-1223, WH2-1287, WH2-1336, WH2-1414, WH2-1468, WH2-1571, WH2-1631, WH2-1758, WH2-1826, WH3-0122, WH3-0162, WH3-0202, WH3-0242, WH3-0302, WH3-0302A, WH3-0302B, WH3-0322, WH3-0402, WH3-0402A, WH3-0402B, WH3-0499, WH3-0502, WH3-0502A, WH3-0502B, WH3-0504, WH3-0649, WH3-0652, WH3-0652A, WH3-0652B, WH3-0749, WH3-0752, WH3-0752A, WH3-0752B, WH3-0754, WH3-0899, WH3-0902, WH3-0902A, WH3-0902B, WH3-0926, WH3-0962, WH3-0992, WH3-0992A, WH3-0992B, WH3-1083, WH3-1104, WH3-1125, WH3-1178, WH3-1223, WH3-1262, WH3-1262A, WH3-1262B, WH3-1262C, WH3-1287, WH3-1336, WH3-1414, WH3-1468, WH3-1504, WH3-1532, WH3-1532A, WH3-1532B, WH3-1532C, WH3-1571, WH3-1631, WH3-1758, WH3-1802, WH3-1802A, WH3-1802B, WH3-1802C, WH3-1826, WH3-2002, WH3-2002A, WH3-2002B, WH3-2002C, WH3-2004, WH3-2072, WH3-2072A, WH3-2072B, WH3-2072C, WH3-2342, WH3-2342A, WH3-2342B, WH3-2342C, WH3-302C, WH3-402C, WH3-502C, WH3-652C, WH3-752C, WH3-902C, WH3-992C, WH7-0300, WH7-0400, WH7-0500, WH7-0503A, WH7-0504, WH7-0504A, WH7-0700, WH7-0753A, WH7-0754, WH7-0754A, WH7-0850, WH7-1000B, WH7-1003, WH7-1003A, WH7-1005, WH7-1005A, WH7-1104, WH7-1104A, WH7-1253, WH7-1253A, WH7-1503, WH7-1503A, WH7-1504, WH7-1504A, WH7-1505, WH7-1505A, WH7-1753, WH7-1753A, WH7-2003, WH7-2003A, WH7-2004, WH7-2004A, WH7-2005, WH7-2005A, WH7-300B, WH7-400B, WH7-500B, WH7-503, WH7-650B, WH7-753, WH7-800B, WH8-0992A, WH8-1262A, WH8-1532A, WH8-1802A, WH8-2002A, WH8-2072A, WH8-2342A, WH9-0302A, WH9-0302B, WH9-0402A, WH9-0402B, WH9-0502A, WH9-0502B, WH9-0504, WH9-0652A, WH9-0652B, WH9-0752A, WH9-0752B, WH9-0754, WH9-0902A, WH9-0902B, WH9-0992, WH9-0992A, WH9-0992B, WH9-1104, WH9-1262, WH9-1262A, WH9-1262B, WH9-1504, WH9-1532, WH9-1532A, WH9-1532B, WH9-1802, WH9-1802A, WH9-1802B, WH9-2002, WH9-2002A, WH9-2002B, WH9-2004, WH9-2072, WH9-2072A, WH9-2072B, WH9-2342, WH9-2342A, WH9-2342B, WHP-1005, WHP-1505, WHP-2005
