Description

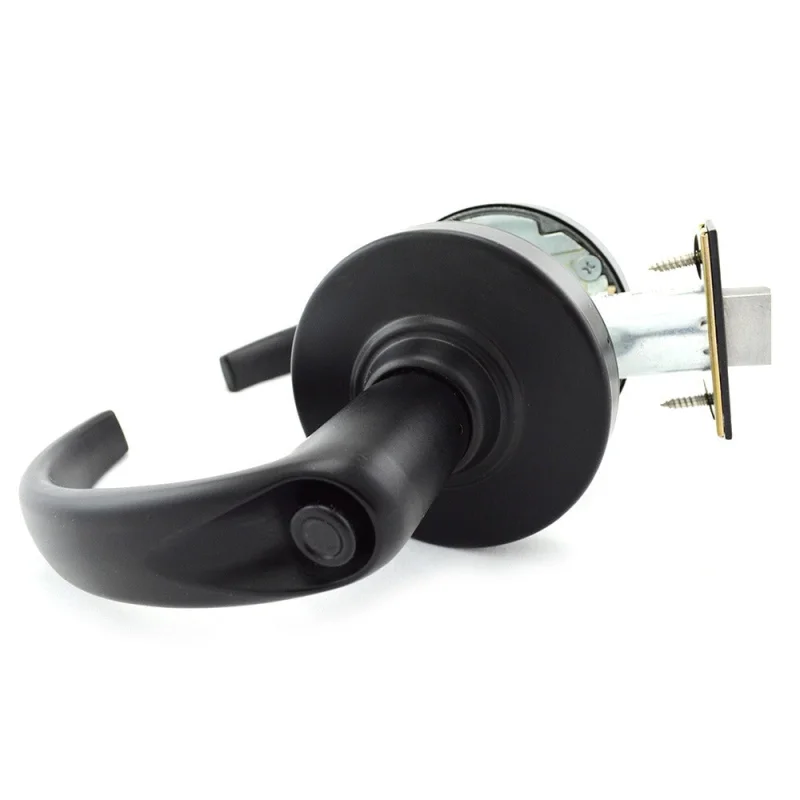

The SCHLAGE COMMERCIAL ALX40SPA622 is a Grade 2 privacy lever lock from the ALX Series, designed for interior doors in light commercial and residential applications. It features the Sparta lever trim and ships complete with a 2-3/4 inches spring latch and an ANSI strike plate, finished in Matte Black. The privacy function allows locking from the interior side, with an emergency release accessible from the exterior. This lock is installed by commercial door hardware specialists and general contractors working on office, hospitality, or multi-family projects.
The ALX40SPA622 is suited for interior privacy applications such as restrooms, private offices, and hotel guestrooms where a simple push-button or turn-button lock is required. The included 2-3/4 inches spring latch accommodates standard door preparations, and the ANSI strike ensures compatibility with common door frame mortises. The Matte Black finish coordinates with contemporary hardware schedules in commercial and multi-family builds.
Key Features
- Grade 2 ANSI/BHMA rating suitable for light commercial and residential interior doors
- Privacy function with interior locking and exterior emergency release
- Sparta lever design in Matte Black (622) finish
- Includes 2-3/4 inches spring latch for standard door backset preparation
- Ships with ANSI strike plate for direct installation
- Sold individually as a complete lockset assembly
Compatibility
Designed as an OEM-style replacement or new-installation privacy lever lock for standard ANSI-prep interior commercial and residential doors requiring a Grade 2 function.
Installation Notes
Installation is performed by a licensed locksmith, door hardware installer, or qualified general contractor. Verify door thickness and backset measurement before installation, and confirm the door prep meets ANSI A115 standards for the latch and strike. Always follow local building codes and ADA requirements where applicable when selecting lever hardware for accessible routes. Do not force the latch mechanism during installation, as this can damage the spring latch assembly.
Technical Specifications
- Series: ALX Series
- Grade: Grade 2 (ANSI/BHMA)
- Function: Privacy
- Lever Style: Sparta
- Finish: Matte Black (622)
- Latch Backset: 2-3/4 inches spring latch
- Strike: ANSI Strike included
- Length: 10.2 inches
- Width: 7.7 inches
- Height: 4.9 inches
- Weight: 4.4 pounds
- Sales Unit: Each (EA)
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: ALX40SPA622
