Description

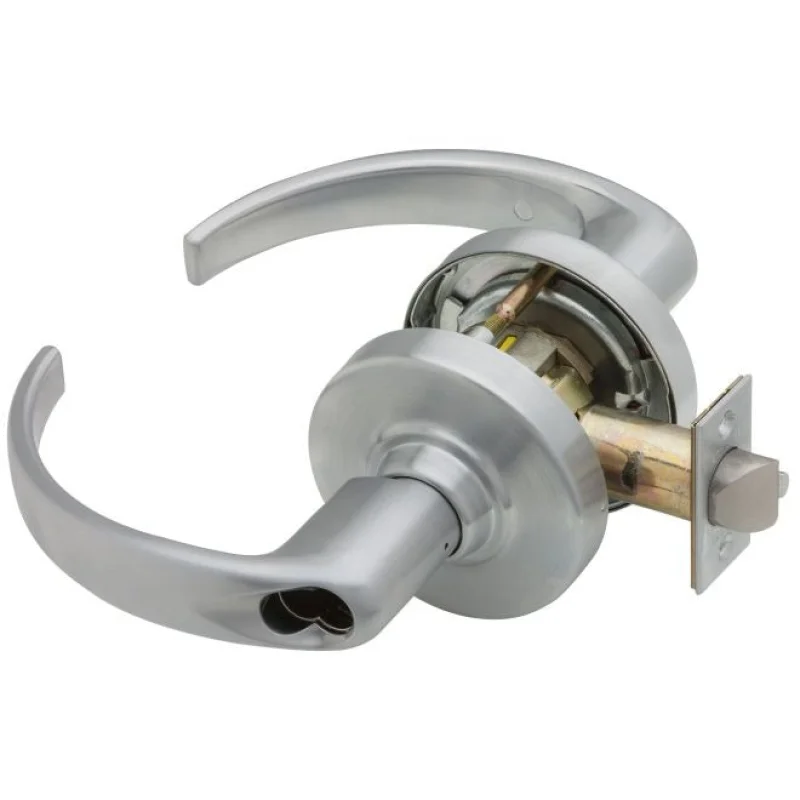

The SCHLAGE COMMERCIAL ND80BSPA626 is a storeroom-function lever lockset from the ND Series, designed for commercial and institutional door hardware applications. It ships in a small format less core (SFLC) configuration, meaning the lock cylinder is not included and must be sourced separately to match the facility’s existing key system. The Sparta lever trim provides a clean, professional appearance, and the Satin Chrome (626) finish offers corrosion resistance suited to high-traffic interior environments. Included in the package are a 13-247 latch and a 10-025 strike plate. Licensed locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary installers of this hardware.
The ND80BSPA626 is suited for storeroom and storage area doors in commercial buildings, institutional facilities, schools, healthcare campuses, and multi-family common areas. In storeroom function, the exterior lever is always locked and can only be retracted by a key; the interior lever remains free-turning at all times for egress. This function is commonly specified on supply rooms, server closets, electrical rooms, and similar secured utility spaces where controlled access is required but free egress must always be maintained.
Key Features
- Storeroom function: exterior lever is key-controlled, interior lever allows free egress at all times
- Small Format Less Core (SFLC) design accepts a separately sourced small-format interchangeable core
- Sparta lever trim in Satin Chrome (626) finish for corrosion resistance in high-traffic settings
- Includes 13-247 latch and 10-025 strike plate for a complete door prep installation
- Packaged as a single unit (EA); case quantity of 6 units available
- Overall package dimensions: 9.5 inches long, 8.1 inches wide, 4.6 inches tall; weight 5 pounds
Compatibility
Designed as an OEM-style commercial door hardware replacement or new-installation unit for standard commercial cylindrical lock preps. Accepts small-format interchangeable cores from compatible core manufacturers; verify core format compatibility before ordering.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards for cylindrical locksets. Before installation or core insertion, confirm the door prep matches the required backset and cross-bore dimensions for the ND Series. Do not force the core into the housing; improper core seating can damage internal components. Verify that the selected latch and strike are aligned to the door frame before securing all fasteners.
Technical Specifications
- Series: ND Series
- Function: Storeroom (exterior key-controlled, interior free egress)
- Core Format: Small Format Less Core (SFLC)
- Lever Style: Sparta
- Finish: Satin Chrome (626)
- Included Hardware: 13-247 Latch, 10-025 Strike
- Package Length: 9.5 inches
- Package Width: 8.1 inches
- Package Height: 4.6 inches
- Package Weight: 5 pounds
- Sales Unit: EA
- Case Quantity: 6
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: ND80BSPA626
