Description

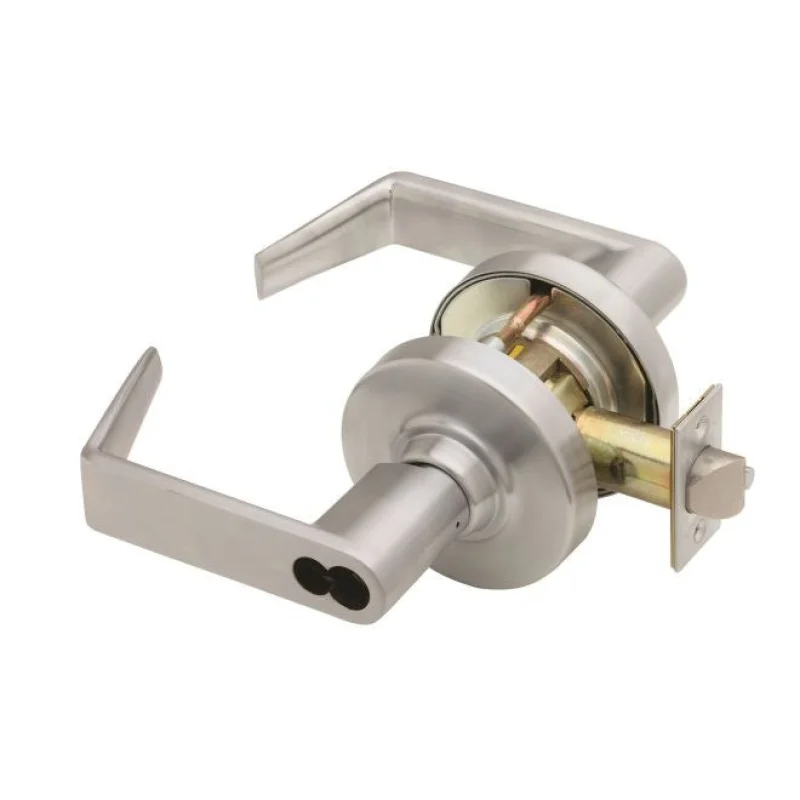

The SCHLAGE COMMERCIAL ND96JRHO626 is a Vandlgard storeroom lever lock in the ND Series, designed for commercial and institutional door hardware applications. It features a Large Format Less Core (LFLC) cylinder configuration, meaning the lock ships without a core installed and accepts large-format interchangeable cores for keying flexibility. The Rhodes lever trim is finished in Satin Chrome (626). The unit includes a 13-247 latch and a 10-025 strike. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary trades that specify and install this hardware.
This storeroom function lock is suited for commercial, institutional, and industrial facilities where a door must remain locked from the outside at all times while allowing free egress from the inside without a key. Typical applications include storage rooms, server rooms, supply closets, and secured utility spaces in schools, hospitals, offices, and similar buildings. The Vandlgard design provides reinforced trim to resist physical attack, making it appropriate for high-traffic or security-sensitive openings.
Key Features
- Storeroom function: outside lever is always locked, inside lever allows free egress at all times
- Vandlgard reinforced trim resists physical attack and vandalism
- Large Format Less Core (LFLC) configuration accepts large-format interchangeable cores for master-key system flexibility
- Includes 13-247 latch and 10-025 strike for complete door prep
- Rhodes lever style in Satin Chrome (626) finish
- Sold as a single unit; cases pack 6 units
Compatibility
Designed as an OEM-style replacement or new-installation lever lock for commercial doors prepared for ND Series cylindrical lock hardware using a Large Format Less Core cylinder configuration.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lock sets. Ensure the door and frame are properly prepared with the correct backset, cross-bore, and edge-bore dimensions before installing the latch and strike. Verify the door handing before ordering. A large-format interchangeable core must be sourced separately and installed into the cylinder before the lock is placed into service.
Technical Specifications
- Series: ND Series
- Function: Storeroom (Vandlgard)
- Cylinder Type: Large Format Less Core (LFLC)
- Lever Style: Rhodes
- Finish: Satin Chrome (626)
- Included Hardware: 13-247 Latch, 10-025 Strike
- Length: 9.4 inches
- Width: 8.1 inches
- Height: 4.9 inches
- Weight: 5.1 pounds
- Sales Unit: Each
- Case Quantity: 6
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: ND96JRHO626
