Description

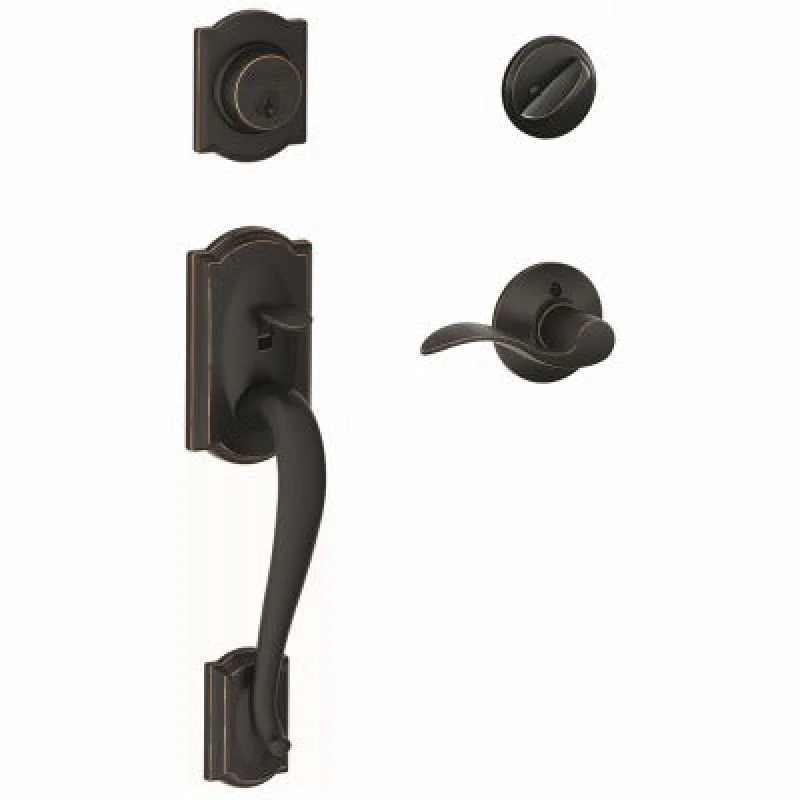

The SCHLAGE LOCK CO F60VCAMXACC716 is a single cylinder entrance handleset in an aged bronze finish, combining the Camelot exterior trim with the Accent interior lever. Designed for residential entry doors, this handleset integrates a deadbolt and a latch into one complete unit. The deadbolt is thrown or retracted by key from the outside or by a turn unit from the inside. The latch is retracted by the thumb piece from the outside or by the interior lever. It ships as a complete visual pack and is installed by a licensed locksmith or a qualified door hardware professional.
This handleset suits standard residential entry door applications. The adjustable backset accommodates both 2-3/8 inch and 2-3/4 inch backset doors, covering the most common residential framing configurations. The dual-option latch features a radius corner and drive-in design, fitting door thicknesses of 1-5/8 inches or 1-3/4 inches. The aged bronze finish coordinates with matching Schlage hardware across the Camelot and Accent product lines.
Key Features
- Single cylinder deadbolt keyed from outside, turn unit from inside
- Adjustable backset fits 2-3/8 inch or 2-3/4 inch door preparations
- Dual-option latch with radius corner and drive-in installation
- Compatible with door thicknesses of 1-5/8 inches and 1-3/4 inches
- 5-pin tumbler C keyway for standard residential keying systems
- ANSI Grade 2 rated construction
- Complete visual pack all hardware included
Compatibility
Designed as an OEM-style replacement or new-installation handleset for standard residential entry doors with a single bore or prep cut accepting a 2-3/8 inch or 2-3/4 inch backset and a door thickness of 1-5/8 inches or 1-3/4 inches.
Installation Notes
Installation is typically performed by a licensed locksmith or experienced door hardware installer. Power down any associated electronic access systems before beginning work. Verify door prep dimensions bore diameter and backset before starting installation to ensure correct fit. Follow local building codes for residential egress hardware requirements when replacing or upgrading entry locksets.
Technical Specifications
- Finish: Aged Bronze (716)
- Lock Type: Single Cylinder Entrance Handleset
- Backset: Adjustable 2-3/8 inches or 2-3/4 inches
- Door Thickness Range: 1-5/8 inches or 1-3/4 inches
- Latch Type: Dual Option, Radius Corner, Drive In
- Keyway: 5-Pin Tumbler C Keyway
- ANSI Grade: Grade 2
- Package Quantity: 1 EA
- Weight: 6.88 pounds
Standard Information
- Brand: SCHLAGE LOCK CO
- Manufacturer Part Number: F60VCAMXACC716
