Description

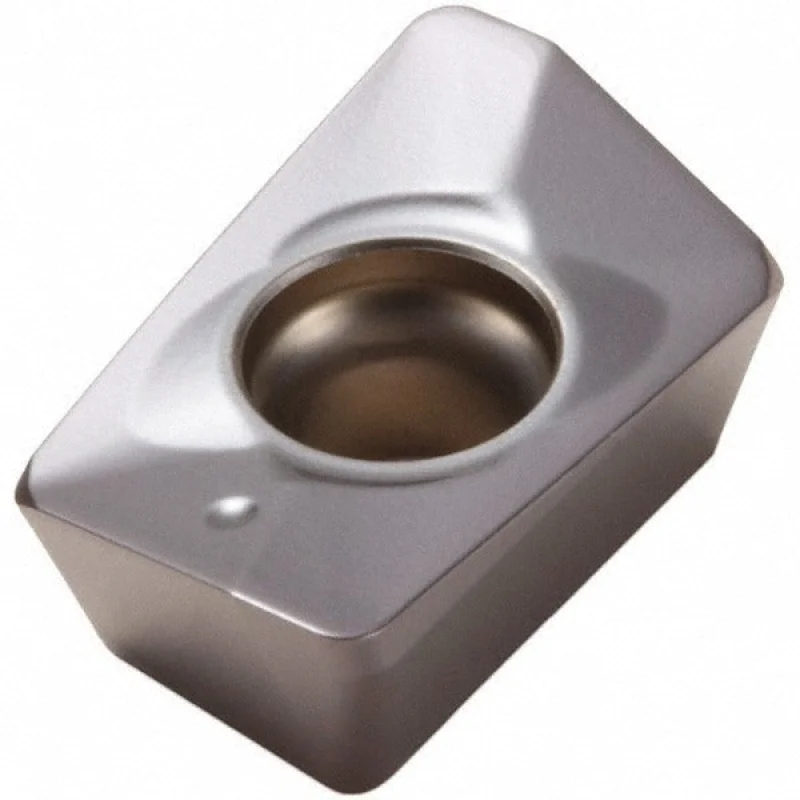

The SECO 00052322 is a solid carbide milling insert carrying the ANSI/ISO designation XOMX120431TR-D14 in manufacturer grade F30M. The insert features a parallelogram shape with a 90-degree included angle, a positive rake geometry with a T-Land cutting edge style, and a 15-degree relief angle. It is coated with TiAlN and TiN via a PVD coating process, targeting thermal resistance and edge durability in demanding milling applications. Two cutting edges are provided per insert, and the right-hand orientation suits standard XOMX-12 series cutter bodies. This insert is specified for use by machining professionals and toolroom technicians running face and shoulder milling operations.
This insert is suited for milling cast iron, steel, stainless steel, and hard materials, covering ISO material groups P, M, K, and H. It is designed for use in XOMX-12 series applications and is compatible with cutter bodies in the R217.69-12 and R220.69-12 series. Typical installation scenarios include face milling, shoulder milling, and high-feed operations on CNC machining centers in both production and job-shop environments. The D14 chip breaker geometry supports effective chip control across the listed workpiece materials.
Key Features
- Solid carbide micrograin substrate with PVD-applied TiAlN and TiN coating for wear and heat resistance
- Parallelogram insert shape (XOMX style) with 90-degree included angle and positive rake for reduced cutting forces
- T-Land cutting edge style with 15-degree relief angle for edge strength and chip clearance
- Two cutting edges per insert, right-hand orientation
- D14 chip breaker optimized for steel, stainless steel, cast iron, and hard material applications
- Compatible with R217.69-12 and R220.69-12 cutter series; screw-mount insert holding method
Compatibility
Designed for use with cutter bodies in the R217.69-12 and R220.69-12 series. The ANSI and ISO code for this insert is XOMX120431TR-D14, and it is interchangeable wherever that designation is specified within the XOMX-12 series.
Installation Notes
Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the spindle before seating or replacing inserts. Use the manufacturer-specified torx or hex key for the clamping screw to avoid seat damage; do not over-torque the screw. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
Technical Specifications
- Insert Style: XOMX
- ANSI / ISO Code: XOMX120431TR-D14
- Manufacturer Grade: F30M
- Insert Shape: Parallelogram
- Insert Material: Solid Carbide (Micrograin)
- Coating / Finish: TiAlN, TiN
- Coating Process: PVD
- Number of Cutting Edges: 2
- Insert Hand: Right Hand
- Thickness: 0.1996 inches
- Inscribed Circle (Width): 0.3228 inches
- Length: 0.4567 inches
- Corner Radius: 0.1220 inches
- Hole Diameter: 0.1535 inches
- Maximum Depth of Cut: 0.4567 inches
- Cutting Edge Effective Length: 0.4567 inches
- Relief Angle: 15.00 degrees
- Rake: Positive
- Rake Angle: 1 degree
- Cutting Edge Style: T-Land
- Chip Breaker: D14
- Included Angle: 90 degrees
- Insert Holding Method: Screw
- Single or Double Sided: Single
- Primary Workpiece Material: Cast Iron (H, K)
- Secondary Workpiece Material: Steel, Stainless Steel, Cast Iron, Hard Material (P, M, K, H)
- Cutter Series Compatibility: R217.69-12, R220.69-12
- Insert Size Code: 120431
- Series: XOMX-12
- Standards: ISO
- Weight: 0.25 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 00052322
