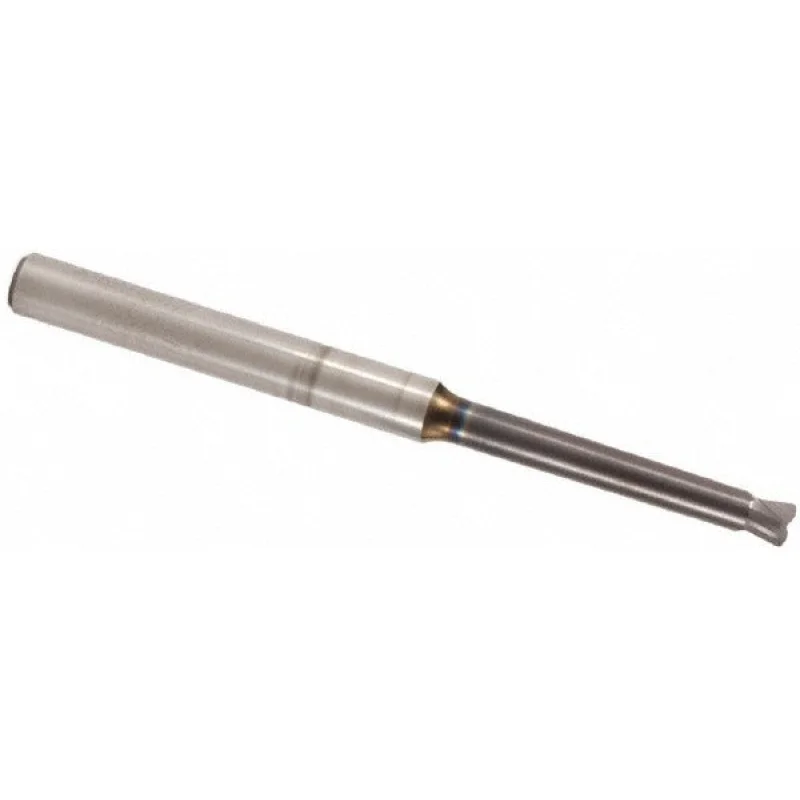

Name: Seco 02511222 Corner Radius End Mill 2mm Solid Carbide
Brand: clearpoolgear.com
SKU: T8005167
Price: 18.60 USD
Availability: InStock

Description

The SECO 02511222 is a solid carbide corner radius end mill designed for precision milling in demanding machining environments. Built on the JHF980 series platform, it features a 2 mm cutting diameter, a 0.15 mm corner radius, and a 0.15 mm length of cut. The tool carries a MEGA-T coating for improved wear resistance and tool life at elevated cutting conditions. With a 0 degree helix angle and straight flute geometry, it is suited for applications requiring controlled chip formation in very shallow finishing passes. Machinists and tool-and-die professionals working with micrograin carbide tooling in small-diameter work will find this end mill well-matched to high-precision contouring tasks.

This end mill is intended for use in CNC machining centers and high-speed spindle setups where small-diameter, tight-tolerance milling is required. Its extended reach design, with a 10 mm reach length and a reduced 1.70 mm neck diameter, allows access to recessed features and deep pockets without interference. The 6 mm cylindrical shank provides a secure, standard collet grip. Right-hand cutting direction suits conventional CNC vertical and horizontal mill setups. This tool is appropriate for finish milling of hardened steels, tool steels, and similar materials where micrograin carbide and MEGA-T coating performance is required.

Key Features

2 mm cutting diameter with 0.15 mm corner radius for fine edge-breaking and contouring
MEGA-T coating for enhanced wear resistance and thermal stability
Micrograin solid carbide substrate for rigidity and edge integrity in hard materials
Extended reach with 10 mm reach length and 1.70 mm neck diameter for deep-feature access
6 mm cylindrical shank for standard collet compatibility
JHF980 series, single-end, right-hand cutting with straight flute geometry

Compatibility

Designed as an OEM-style replacement and standard stocking tool in the SECO JHF980 series, compatible with CNC machining centers using ER or similar collet systems accepting a 6 mm shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully powered down and the machine is in a safe state before changing tooling. Seat the 6 mm shank fully and evenly in the collet to the recommended grip depth before torquing the collet nut per the collet manufacturer specification. Inspect the tool edge under magnification before use, as small-diameter carbide end mills are susceptible to edge chipping during handling.
