Description

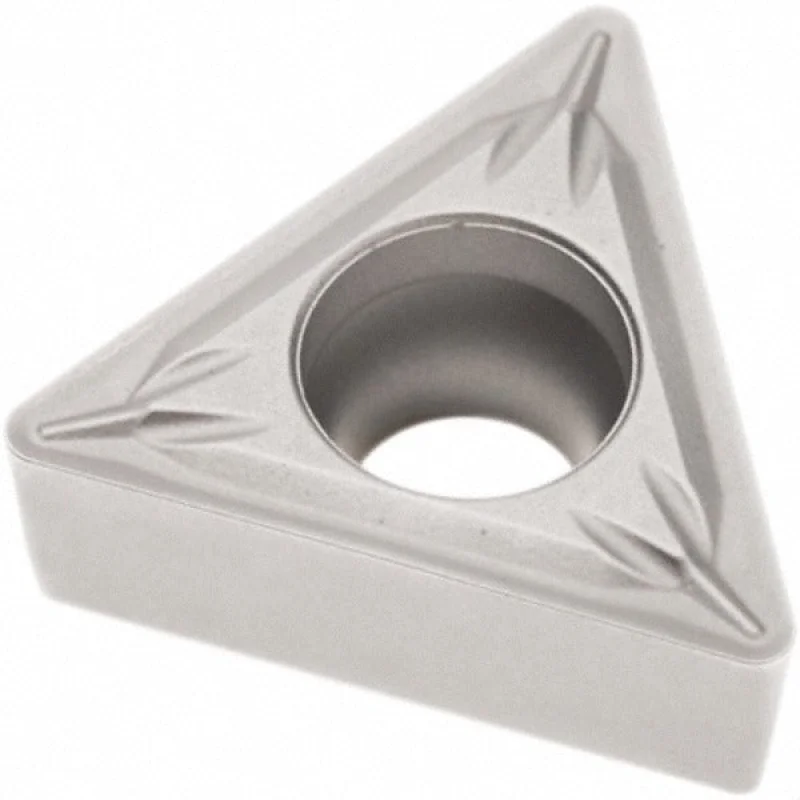

The SECO 02956322 is a TCMT-style triangular carbide turning insert designed for precision metal cutting in industrial turning applications. Carrying the TP2501 manufacturer grade, this insert features a CVD-applied Duratomic multilayer coating system consisting of TiCN, Al2O3, and Cr for elevated wear resistance and thermal stability. The 3/8 inch inscribed circle and 1/64 inch corner radius (0.0157 inches) make it well-suited for moderate to finish-depth turning passes. The MF2 chip breaker geometry is optimized for controlled chip formation on steel and similar materials, making it a reliable choice for machinists running production or job-shop turning operations.
This insert is intended for use in external turning, back turning, boring, and facing operations on CNC lathes and turning centers. Its positive rake geometry reduces cutting forces, which is advantageous when machining steel, stainless steel, and cast iron. The neutral hand orientation allows use in a range of toolholder configurations without directional restriction. Primary workpiece material is steel (ISO code P), with secondary suitability for stainless steel (M) and cast iron (K). Material grades P10, P20, P30, and P35 are covered by this insert grade.
Key Features
- CVD Duratomic multilayer coating: TiCN, Al2O3, and Cr for wear and heat resistance
- MF2 chip breaker geometry for controlled chip evacuation on steel workpieces
- Positive rake with chamfered and honed cutting edge style reduces cutting forces
- Three cutting edges per insert with screw-hole mounting for secure clamping
- Neutral hand orientation fits a wide range of TCMT-compatible toolholders
- Compliant with ANSI and ISO insert standards
Compatibility
Designed for use in TCMT-compatible screw-on toolholders. ISO designation is TCMT16T304-MF2 and industry standard number is TCMT32.51-MF2. Compatible toolholders must accept a screw-clamped TCMT insert with a 0.1772 inch (4.50 mm) hole diameter.
Installation Notes
Installation is performed by qualified machinists or toolroom personnel. Power down and de-energize the machine spindle completely before indexing or replacing inserts. Use the appropriate torque wrench and manufacturer-specified insert screw when securing the insert to avoid cracking the carbide substrate. Inspect the insert seat and clamping screw for wear or debris before seating a new insert.
Technical Specifications
- Insert Style: TCMT
- Insert Shape: Triangle (60 degrees included angle)
- Inscribed Circle: 3/8 inches (0.3750 inches)
- Corner Radius: 1/64 inches (0.0157 inches)
- Insert Thickness: 5/32 inches (0.1563 inches)
- Insert Length: 0.6496 inches
- Hole Diameter: 0.1772 inches (4.50 mm)
- Maximum Depth of Cut: 0.6102 inches
- Relief Angle: 7 degrees (Clearance Code C)
- Rake: Positive
- Insert Hand: Neutral
- Cutting Edge Style: Chamfered and Honed
- Chip Breaker: MF2
- Number of Cutting Edges: 3
- Insert Holding Method: Screw
- Coating: TiCN, Al2O3, Cr (Duratomic CVD)
- Insert Material: Carbide
- Manufacturer Grade: TP2501
- Material Grade: P10, P20, P30, P35
- Primary Workpiece Material: Steel (P)
- Secondary Workpiece Material: Stainless Steel (M), Cast Iron (K)
- Multi-Use Application: Back Turning, Boring, Facing, Turning
- ISO Code: TCMT16T304-MF2
- Industry Standard Number: TCMT32.51-MF2
- Standards: ANSI, ISO
- UNSPSC Code: 23242105
- Package Quantity: 1
- Minimum Order Quantity: 10
- Weight: 0.02 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02956322
