Description

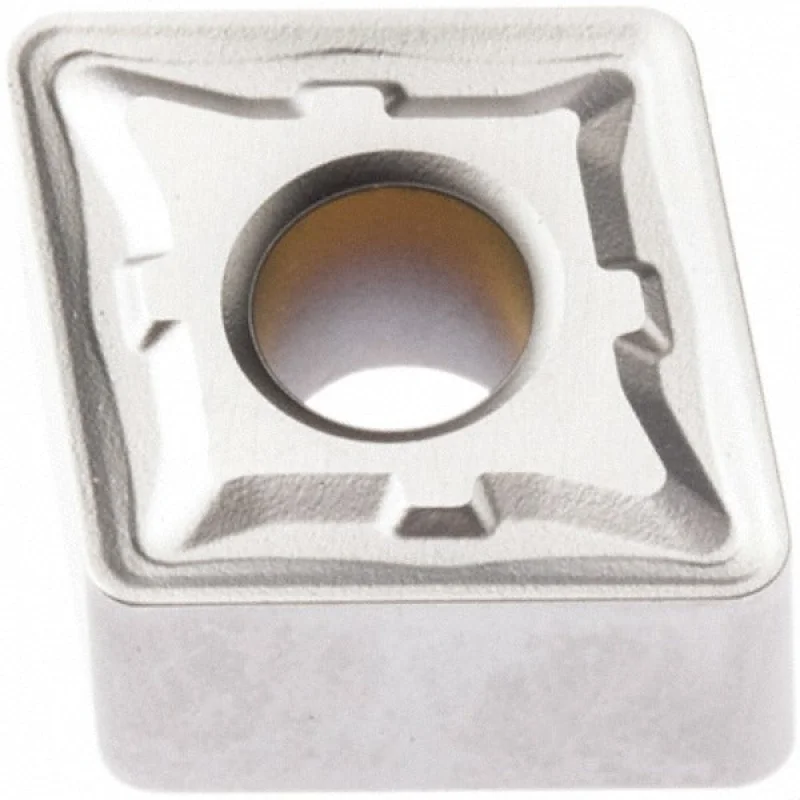

The SECO 02960490 is a CNMG434-M5 indexable turning insert manufactured from solid carbide and finished with a CVD-applied Duratomic multilayer coating of TiCN, Al2O3, and Cr. It carries the TP2501 manufacturer grade and is designed for negative-rake metal cutting operations including boring, facing, and turning. The insert features an 80-degree diamond shape, a neutral hand orientation, four usable cutting edges, and a chamfered and honed cutting edge style. With an inscribed circle of 0.5 inches and a corner radius of 0.063 inches, it suits a broad range of medium-duty cutting applications on steel workpieces. Licensed machinists and CNC operators working in production turning environments are the primary installers and users.
This insert is suited for use in CNMG-M5 series toolholders in both light and heavy production turning cells. Primary workpiece material is steel, covering material grades P10, P20, P30, and P35. Secondary applications include stainless steel and cast iron. The M5 chip breaker geometry is optimized for medium-depth roughing and finishing passes, making it a practical choice for general turning, facing, and internal boring operations in job-shop and production environments. The multi-use designation means one insert style handles multiple operation types without changing tooling between setups.
Key Features
- CVD Duratomic multilayer coating (TiCN, Al2O3, Cr) for extended tool life on steel and stainless
- 80-degree diamond insert shape with negative rake and N clearance for rigid, stable cutting
- Four cutting edges per insert reduces per-edge tooling cost in production runs
- M5 chip breaker geometry suited for boring, facing, and turning in a single insert style
- Compatible with clamp, pin, and lever-lock insert holding methods
- Meets ANSI and ISO dimensional standards; ISO code CNMG120416-M5
Compatibility
Designed for use in CNMG-M5 series toolholders that accept negative-rake, 80-degree diamond inserts with clamp, pin, or lever-lock holding methods. Suitable for steel (P10-P35), stainless steel, and cast iron workpiece materials.
Installation Notes
Installation is performed by a machinist or CNC operator following standard indexable insert seating procedures. Always power down and lock out the machine spindle before indexing or replacing inserts. Seat the insert fully against the toolholder pocket and confirm the clamping method is secure before resuming cutting. Inspect the insert seat and clamp for wear or debris that could affect seating accuracy and cutting stability.
Technical Specifications
- Insert Style: CNMG
- Series: CNMG-M5
- Industry Standard Number: CNMG434-M5
- ISO Code: CNMG120416-M5
- Manufacturer Grade: TP2501
- Insert Material: Carbide
- Coating: TiCN, Al2O3, Cr (Duratomic)
- Coating Process: CVD
- Insert Shape: Diamond 80 degrees
- Included Angle: 80 degrees
- Insert Hand: Neutral
- Rake: Negative
- Clearance Code: N
- Tolerance Code: M
- Chip Breaker: M5
- Cutting Edge Style: Chamfered and Honed
- Number of Cutting Edges: 4
- Inscribed Circle: 0.5 inches
- Corner Radius: 0.063 inches
- Insert Length: 0.5079 inches
- Insert Thickness: 0.1874 inches
- Width: 0.5 inches
- Hole Diameter: 0.2028 inches
- Maximum Depth of Cut: 0.4449 inches
- Primary Workpiece Material: Steel (P10, P20, P30, P35)
- Secondary Workpiece Material: Stainless Steel, Cast Iron
- Insert Holding Method: Clamp, Pin, Lever Lock
- Multi-Use Application: Boring, Facing, Turning
- Wiper Edge: No
- Full Radius: No
- Standards: ANSI, ISO
- Weight: 0.02 pounds
- UNSPSC Code: 23242105
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02960490
