Description

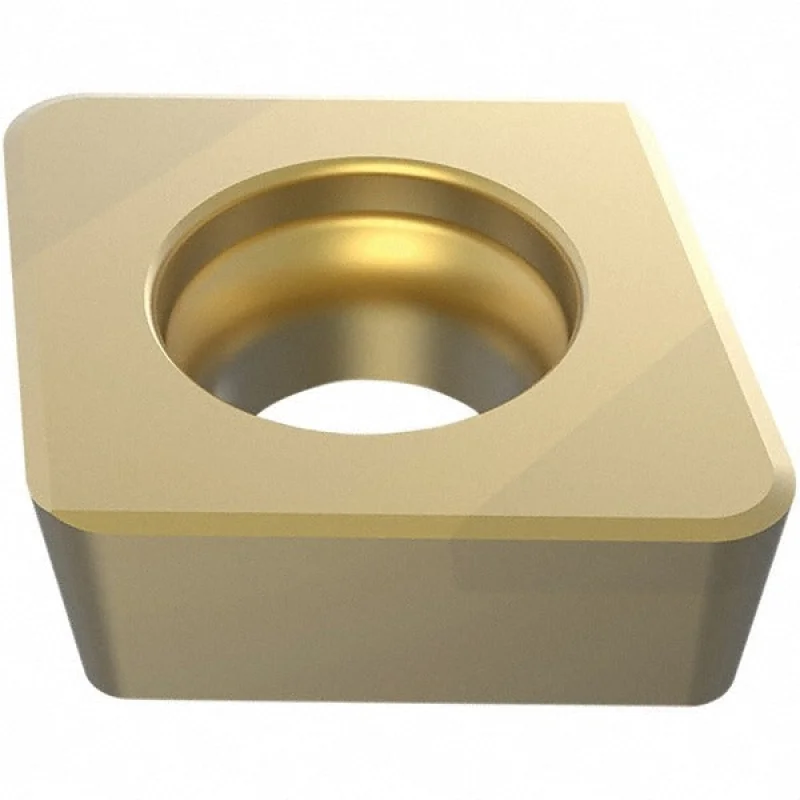

The SECO 03120429 is a polycrystalline cubic boron nitride (PCBN) turning insert with a TiAlN PVD coating, designed for high-speed machining of hard and abrasive materials. The insert features an 80-degree diamond (rhombic) shape with a neutral hand orientation and a flat-top chip breaker geometry. With an inscribed circle of 0.375 inches and a corner radius of 0.0315 inches, it delivers precise, controlled cuts in demanding applications. Manufacturer grade CH3515 targets cast iron and hard materials in the K10, K20, K30, H30, and H40 material grade ranges. This insert is a multi-tipped design offering two cutting edges and is installed using a screw-type holding method.
This insert is suited for boring, facing, and turning operations on cast iron and hard workpiece materials where high wear resistance and edge integrity are critical. The chamfered and honed cutting edge style helps manage entry forces and extend tool life under continuous or interrupted cut conditions. Machinists and CNC tooling specialists working with hardened ferrous components, gray iron, and nodular iron will find this insert appropriate for both roughing and semi-finishing passes within its rated depth-of-cut range. It conforms to ANSI insert code CCGW32.52 and ISO insert code CCGW09T308.
Key Features
- PCBN insert material with TiAlN PVD coating for high wear resistance on cast iron and hard materials
- 80-degree diamond insert shape with positive rake and 7-degree relief angle for reduced cutting forces
- Flat-top chip breaker geometry with chamfered and honed cutting edge style
- Two cutting edges per insert with neutral hand orientation for flexible setup
- Maximum depth of cut of 0.040 inches suitable for finishing and light semi-finishing operations
- Screw-type insert holding method for secure clamping in compatible toolholders
Compatibility
Designed for use in CCGW-style screw-clamp toolholders accepting 80-degree diamond inserts with an ANSI size code of 32.52 and ISO size code 09T308. Suitable for multi-use applications including boring, facing, and turning. Compatible with material grades K10, K20, K30, H30, and H40 workpiece classifications per ISO standard designations.
Installation Notes
Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the toolholder is secured before seating or indexing the insert. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer’s specified torque. Inspect the insert pocket and seating surface for chips or debris before installation to ensure proper insert support and runout control.
Technical Specifications
- Insert Material: Polycrystalline Cubic Boron Nitride (PCBN)
- Manufacturer Grade: CH3515
- Coating: TiAlN PVD
- Insert Shape: C – Diamond (Rhombic) 80 degrees
- ANSI Insert Code: CCGW32.52
- ISO Insert Code: CCGW09T308
- Inscribed Circle: 0.375 inches (3/8 inches)
- Corner Radius: 0.0315 inches (1/32 inches)
- Insert Thickness: 0.1563 inches (5/32 inches)
- Insert Length: 0.3819 inches
- Insert Width: 0.375 inches
- Hole Diameter: 0.1772 inches
- Maximum Depth of Cut: 0.040 inches
- Relief Angle: 7 degrees
- Rake Angle: 0 degrees
- Included Angle: 80 degrees
- Insert Hand: Neutral
- Chip Breaker: Flat Top
- Cutting Edge Style: Chamfered and Honed
- Number of Cutting Edges: 2
- Insert Holding Method: Screw
- Primary Workpiece Material: Cast Iron, Hard Material (ISO K)
- Material Grades: K10, K20, K30, H30, H40
- Multi-Use Applications: Boring, Facing, Turning
- Standards: ANSI, ISO
- Package Quantity: 1 insert per package
- Weight: 0.007 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03120429
