Name: Seco 10015595 Indexable Square-shoulder End Mill
Brand: clearpoolgear.com
SKU: T8006850
Price: 36.25 USD
Availability: InStock

Description

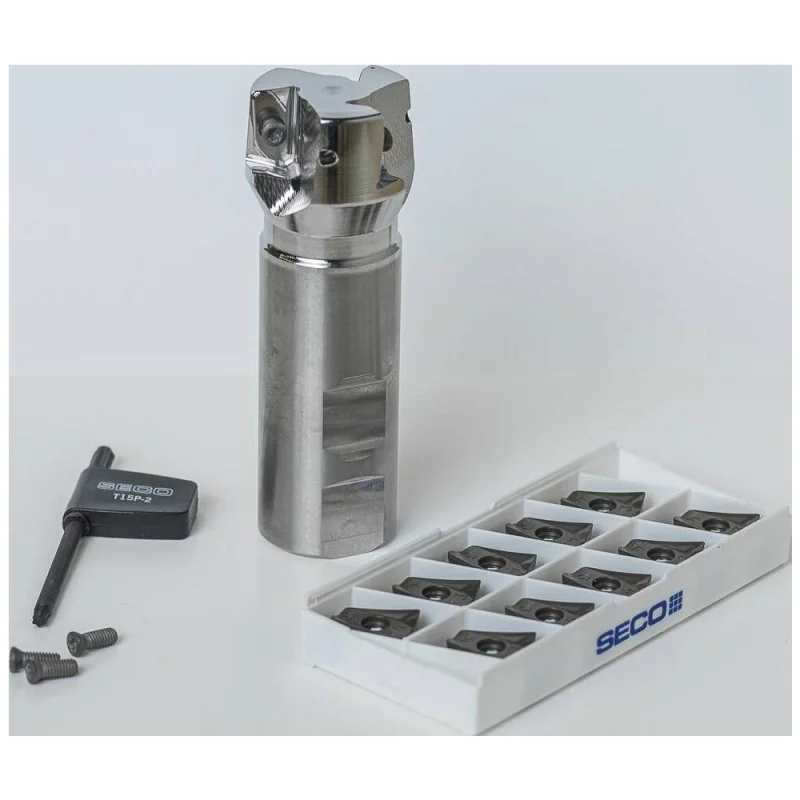

The SECO 10015595 is an indexable square-shoulder end mill designed for precision milling operations in metalworking and machining environments. Built on the Double Turbo platform with cutter style R217.64, it accepts three screw-held inserts and delivers a cutting diameter of 1.5 inches with a maximum depth of cut of 0.591 inches. The 1.25-inch Weldon Flat shank provides positive rotational drive and secure toolholder engagement. Through-coolant capability supports chip evacuation and thermal management at elevated speeds. This tool is installed and operated by machinists and CNC tooling specialists in production and job-shop settings.

This end mill is suited for square-shoulder milling, slotting, and face milling applications on steel, cast iron, and similar materials where a rigid, indexable platform is required. The three-insert configuration and Double Turbo series geometry support aggressive material removal rates in both horizontal and vertical machining center setups. Through-coolant delivery keeps the cutting zone clear at higher feed rates and speeds up to 10,000 RPM. The 4.33-inch overall length provides adequate reach for most standard workpiece setups without excessive overhang.

Key Features

1.5-inch cutting diameter with 0.591-inch maximum depth of cut for square-shoulder operations
Three screw-held indexable inserts for repeatable edge indexing without re-setup
Through-coolant design supports chip evacuation and cutting zone cooling
1.25-inch Weldon Flat shank for positive drive and secure clamping in standard toolholders
Maximum spindle speed of 10,000 RPM suits high-speed machining center applications
Steel body construction with Double Turbo series geometry for stable, high-feed performance

Compatibility

Designed as an OEM-style indexable end mill for use with compatible SECO Double Turbo series inserts in standard Weldon Flat toolholders sized for a 1.25-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Seat the Weldon Flat shank fully into the toolholder and secure the drive screw against the flat to the toolholder manufacturer specification. Verify insert seating and screw torque before initiating a cut, and confirm through-coolant passages are clear and connected before operation.
