Description

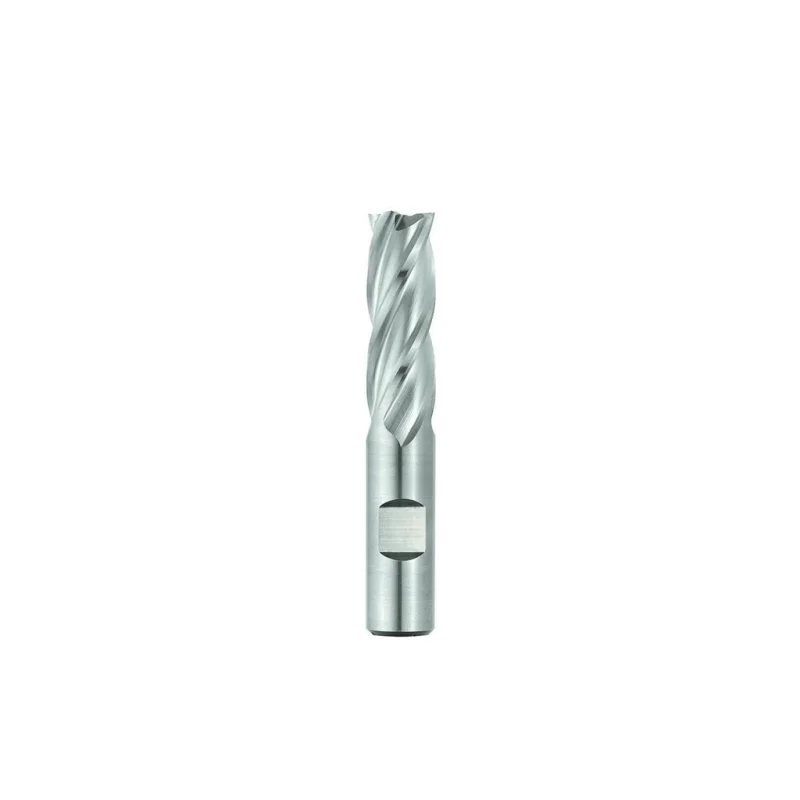

The SECO 17011834 is a single-end cobalt square end mill designed for material removal in ferrous and non-ferrous machining applications. Built from M42 cobalt high-speed steel, it delivers heat resistance and edge retention in demanding cuts. The cutter runs 6 flutes with a 30-degree right-hand spiral helix, a 1-inch mill diameter, and a 2-inch length of cut. The bright, uncoated finish is the out-of-box condition and suits applications where coating is applied in-house or where bare HSS cobalt performance is sufficient. Center-cutting geometry allows plunge entry as well as standard peripheral milling. Licensed machinists and CNC operators working in job shop or production environments are the primary users.
This end mill fits short-length tooling setups in vertical machining centers and manual knee mills. The SPC408 series is suited for cutting steel, stainless steel, cast iron, aluminum and non-ferrous materials, and high-temperature alloys. The 1-inch shank diameter fits standard ER, Weldon, and side-lock holders with a 1-inch bore. With a 4.5-inch overall length, this tool stays compact for rigidity in short-reach applications where deflection control matters.
Key Features
- M42 cobalt HSS construction for elevated heat and wear resistance vs standard M2
- 6-flute geometry increases feed rates and improves surface finish on finishing passes
- 30-degree right-hand helix promotes chip evacuation and smooth cutting action
- Center-cutting design allows direct plunge milling without pre-drilled entry
- Bright, uncoated finish compatible with re-coating or direct use on non-ferrous materials
- Short length-type body maximizes rigidity and minimizes runout in tight setups
Compatibility
Designed for use with steel, stainless steel, cast iron, aluminum and non-ferrous materials, and high-temperature alloys per SECO SPC408 series application guidelines. Fits any 1-inch bore toolholder accepting a straight shank end mill.
Installation Notes
Installation is performed by machinists or CNC setup technicians. Secure the shank fully within the toolholder to the manufacturer-recommended engagement depth before tightening. Verify runout at the cutting edge with a dial indicator before beginning a cut, keeping TIR within acceptable limits for the operation. Always confirm spindle speed and feed rate are set appropriately for the workpiece material before engaging the cutter.
Technical Specifications
- Mill Diameter: 1 inch
- Length of Cut: 2 inches
- Overall Length: 4.5 inches
- Shank Diameter: 1 inch
- Number of Flutes: 6
- Helix Angle: 30 degrees
- End Mill Material: Cobalt (M42)
- Material Grade: M42
- Coating/Finish: Bright/Uncoated
- Cutting Direction: Right Hand
- Flute Direction: Right Hand
- Flute Type: Spiral
- Single or Double End: Single
- Center Cutting: Yes
- Variable Helix: No
- Chipbreaker: No
- Coolant Through: No
- Mill Diameter Tolerance: +0.0010 / -0.0000 inches
- Shank Diameter Tolerance: -0.0001 / -0.0005 inches
- Overall Length Tolerance: +0.0620 / 0.0000 inches
- TIR Maximum: 0.0010 inches
- Series: SPC408
- Length Type: Short
- Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, Aluminum and Non-Ferrous, High-Temp Alloy
- Weight: 1 pound
Standard Information
- Brand: SECO
- Manufacturer Part Number: 17011834
