Description

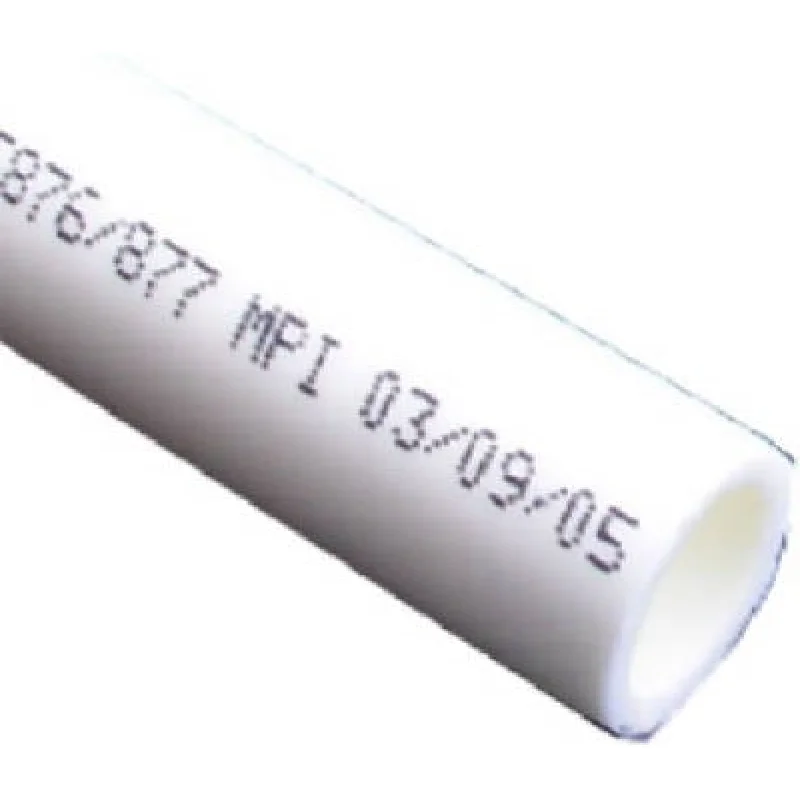

The SHARKBITE/CASH ACME U860W100 is a 0.5-inch CTS (Copper Tube Size) PEX-B pipe coil, 100 feet in length, supplied in white. Manufactured using the Type B silane cross-linking method, this pipe is rated for both hot and cold potable water applications. The silane process incorporates additional anti-oxidants and thermal stabilizers, making it well suited for chlorinated water systems and recirculation loops. Burst pressure is rated at 1,100 psi at 73 degrees F and 375 psi at 180 degrees F. Licensed plumbers and pipefitters install this pipe in residential and light commercial water distribution systems.
This PEX-B coil is designed for hot and cold water supply lines in residential and commercial plumbing. It is compatible with 0.5-inch Quick Connect and brass PEX insert fittings meeting ASTM SDR-9 standards. The white color is commonly used to identify cold water lines, though it may be used for any distribution run per the installer’s preference. Typical applications include under-slab runs, in-wall rough-in, manifold distribution systems, and potable water repiping projects.
Key Features
- Type B silane cross-linking method with elevated anti-oxidant and thermal stabilizer content for chlorinated and recirculation systems
- Burst rated at 1,100 psi at 73 degrees F and 375 psi at 180 degrees F
- NSF-61, FDA, CSA/ASTM certified and UPC Listed for potable water use
- 25-year warranty covering materials, non-prorated, valid when used with ASTM SDR-9 certified fittings from any manufacturer
- 100-foot coil in white for easy identification and full-run installations
- Compatible with 0.5-inch Quick Connect and brass PEX insert fittings
Compatibility
Compatible with 0.5-inch Quick Connect and brass PEX insert fittings. Warranty coverage extends to use with any ASTM SDR-9 certified fittings, regardless of manufacturer. Note: Type A, B, and C are European system designations and do not represent a quality or performance grading scale for PEX pipe.
Installation Notes
Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the system before cutting or joining pipe. Support pipe every 30 inches both vertically and horizontally, and protect pipe where it enters or exits slabs or walls. Do not use duct tape, pipe dope, threading compound, or mineral or linseed oil on this pipe. Do not kink the pipe or expose it to direct sunlight. Maintain minimum clearances: 18 inches from water heaters, boilers, and wood-burning appliances; 12 inches from recessed lights; and 6 inches from gas appliance vents.
Technical Specifications
- Pipe Size: 0.5 inch CTS (Copper Tube Size)
- Length: 100 feet
- Color: White
- PEX Type: Type B (Silane Method)
- Burst Pressure: 1,100 psi at 73 degrees F; 375 psi at 180 degrees F
- Application: Hot and cold potable water
- Pipe Support Spacing: 30 inches vertically and horizontally
- Minimum Clearance – Water Heaters, Boilers, Wood Burning Appliances: 18 inches
- Minimum Clearance – Recessed Lights: 12 inches
- Minimum Clearance – Gas Appliance Vents: 6 inches
- Certifications: NSF-61, FDA, CSA/ASTM, UPC Listed
- Warranty: 25 years, materials, non-prorated
- Weight: 5.3 pounds
- Package Quantity: 1
Standard Information
- Brand: SHARKBITE/CASH ACME
- Manufacturer Part Number: U860W100
