Description

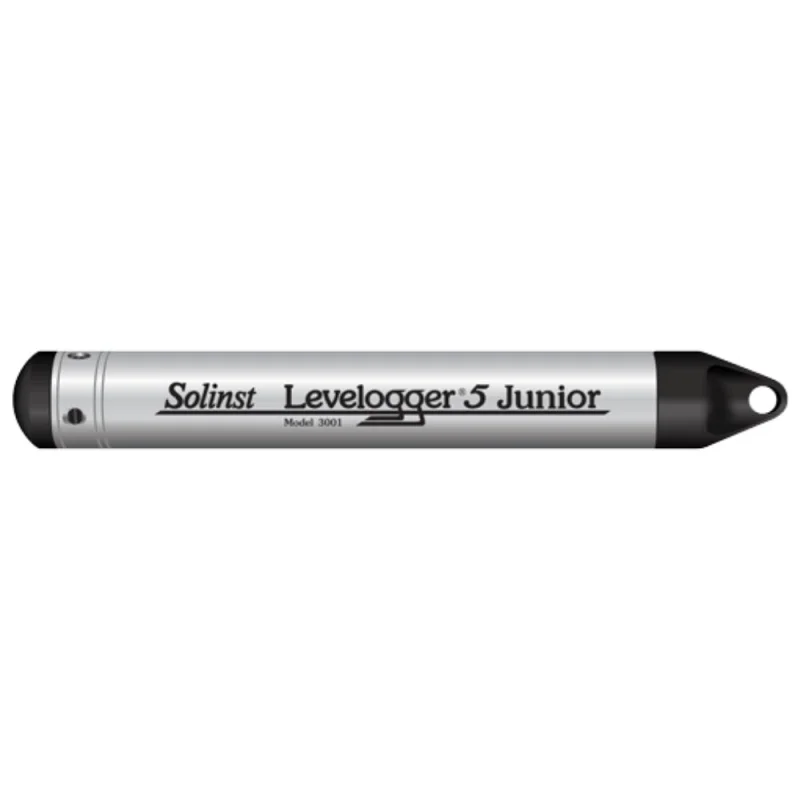

Solinst Levelogger 5 Junior Model 3001 Level Datalogger (15 or 30 feet)
The Levelogger 5 Junior provides an inexpensive alternative for measuring groundwater and surface water levels and temperature. The Levelogger 5 Junior combines a pressure sensor, temperature detector, a datalogger, and 5-year battery (based on a 1-minute sampling rate) in one compact 22 mm x 160 mm (7/8″ x 6.3″) stainless steel housing.
The Levelogger 5 Junior records absolute pressure using the same durable Hastelloy pressure sensor as the Levelogger 5. The Hastelloy sensor has an excellent performance in harsh environments and can withstand 2 times overpressure without permanent damage.
The Levelogger 5 Junior features a memory with a capacity of 75,000 sets of temperature and water level data points. Readings are linear at a user-defined interval between 0.5 second to 99 hours. Accuracy is 0.1% FS with lifetime factory calibration.
Features:
- Cost effective water level & temperature datalogger
- Accuracy of 0.1% FS
- Memory holds 75,000 sets of readings
- 5 year battery
- 1 year warranty
- Compatible with Levelogger Series Software, accessories and Telemetry
| LT Models | Full Scale (FS) | Accuracy | Resolution |
|---|---|---|---|
| M5 | 5 m (16.4 ft.) | 0.6 cm, 0.020 ft. | 0.02% FS |
| M10 | 10 m (32.8 ft.) | 1.0 cm, 0.032 ft. |
0.01% FS |
| Level Sensor: | Piezoresistive Silicon with Hastelloy Sensor |
|---|---|
| Ranges: | 5,10 m |
| Accuracy: | 0.1% FS |
| Resolution: | 0.02% FS to 0.01% FS |
| Units of Measure: | cm, m, ft, psi, kPa, bar, (C, F) |
| Normalization: | Automatic Temp Compensation |
| Temp Compensation Range: | 0C to 40C |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Accuracy: | 0.1C |
| Resolution: | 0.1C |
| Battery Life: | 5 Years (based on 1 reading/minute) |
| Operating Temperature: | – 20C to 80C |
| Clock Accuracy (typical): | 1 minute/year (- 20C to 80C) |
| Memory Modes: | Continuous or Slate |
| Maximum Readings: | 75,000 sets of readings |
| Communication: | Optical high-speed: 57,600 bps with USB |
| Size: | 22 mm x 160 mm (7/8″ x 6.3″) |
| Weight: | 166 grams (5.6 oz) |
| Wetted Materials: | 316 Stainless Steel, Delrin, Viton, Hastelloy |
| Sampling Mode: | Linear, Real Time View, Future Start |
| Measurement Rates: | 0.5 sec to 99 hours |
| Barometric Compensation: |
Data Wizard and Barologger 5 |
