Description

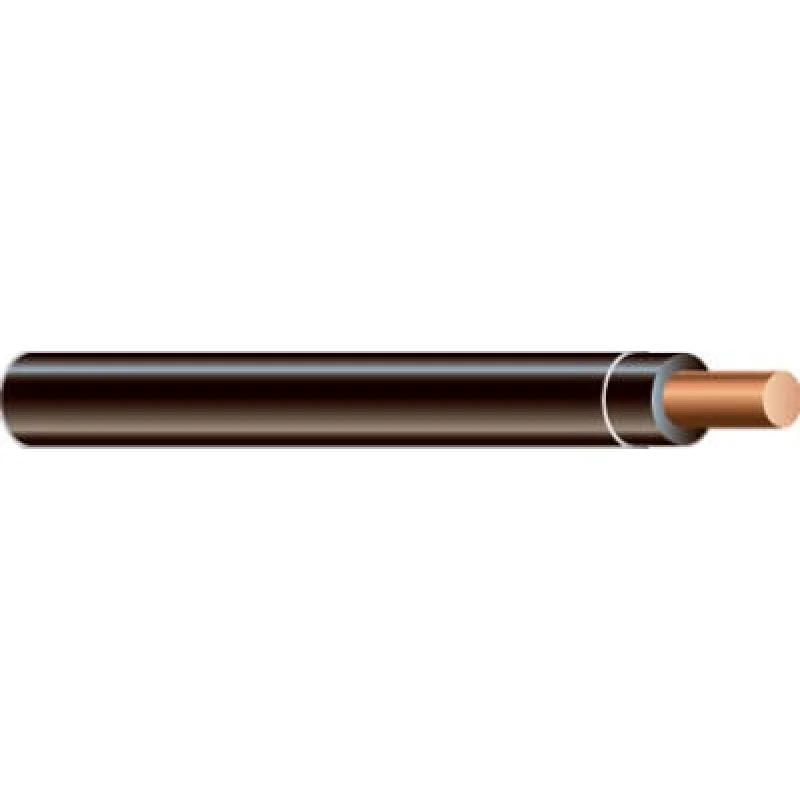

The SOUTHWIRE/COLEMAN CABLE 11587358 is a 500-foot coil of 12 AWG solid copper THHN building wire rated at 600 volts and 90 degrees C. The nylon jacket over thermoplastic insulation provides resistance to abrasion, moisture, and heat, making this wire suitable for branch circuit wiring in conduit. Licensed electricians use this wire for residential and light commercial rough-in work where a solid conductor is required. The black jacket identifies it as a standard current-carrying conductor under common color-coding conventions.
This wire is appropriate for branch circuit and feeder applications in dry, damp, or wet locations when installed in conduit or raceway systems. Solid 12 AWG conductors are commonly used in residential branch circuits, panel feeders, and general-purpose outlet and lighting circuits. The 500-foot length suits larger rough-in jobs or multi-circuit pulls where a full coil reduces the need for splices.
Key Features
- Type THHN rated for 600 volts and 90 degrees C in dry locations
- Solid 12 AWG bare copper conductor for reliable conductivity and easy termination
- Nylon-jacketed thermoplastic insulation resists abrasion and pulling stress during conduit installation
- Black jacket color for standard current-carrying conductor identification
- 500-foot coil length reduces mid-run splices on larger branch circuit pulls
Compatibility
Designed for use in conduit and raceway systems as an OEM-style THHN branch circuit conductor suitable for residential and light commercial electrical installations.
Installation Notes
Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit panel before making any terminations. Solid conductors require proper torque at terminals per the terminal manufacturer’s listed specifications do not overtighten or undertighten. Use appropriate wire-pulling lubricant when running through conduit to prevent insulation damage.
Technical Specifications
- Wire Type: THHN
- Conductor Size: 12 AWG
- Conductor Type: Solid
- Conductor Material: Copper
- Insulation: Nylon-jacketed thermoplastic
- Voltage Rating: 600 volts
- Temperature Rating: 90 degrees C
- Jacket Color: Black
- Length: 500 feet
- Weight: 24.6 pounds
Standard Information
- Brand: SOUTHWIRE/COLEMAN CABLE
- Manufacturer Part Number: 11587358
