Description
For alternate part see 640-3580S V in stainless steel/white or the suction in black 640-3581 V
Suction covers in white are still available if white color is needed- 642-3630 V

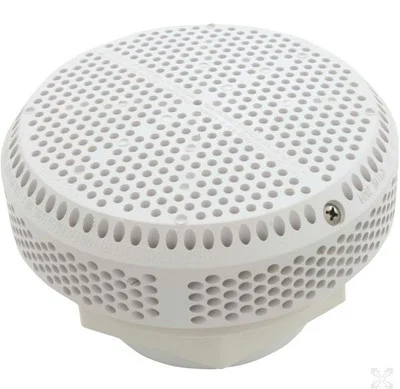

Suction assembly by Waterway – Super Hi-Flo 3-3/8″ hole size has a 2-1/2″ slip connection for 2 1/2 inch hi flow plumbing , 251gpm rated in White 640-3790 . Replaces _640-3790 V , 640-3790V.
| uction Fitting Complete | Complete Assembly, Straight |
| Hole Size | 2-1/2″ |
| Cover Diameter | 5″ |
| Color | White |
| Wall Flow Rate | 251gpm |
| 1 | Screw, 6-20 x 5/8″, Flat, Phillips, SS | 819-1251 |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, White, W/O Screws | 642-3630 V |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, Gray, W/O Screws | 642-3637 V |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, Black, W/O Screws | 642-3631 |
| 3 | Wall Fitting, WW 5″ Super Hi-Flo, 3-3/8″hs, 2-1/2″s | 215-3610 |
| 3 | Wall Fitting, WW 5″ Super Hi-Flo, 3-3/8″hs, 2″s | 215-3620 |
| 4 | Gasket, Waterway Super Hi-Flow Suction Fitting | 711-3260 |
| 5 | Nut, Waterway 5″ Super Hi-Flo Wall Fitting, 2″ or 2-1/2″ | 642-3620 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Beige | 640-3570 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Gray | 640-3577 V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Black | 640-3571 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, 90 deg, White | 640-3600 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, 90 Deg, Gray | 640-3607 V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, White | 640-3630 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, White/ss | 640-3630S V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Gray | 640-3787 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,White | 640-3590 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,Black | 640-3591 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,Gray | 640-3597 |
| 6b | Suction Assy, WW Super Hi-Flo,3-3/8″hs,2-1/2″s,180gpm, White | 640-3580 V |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, Gray | 640-3587 V |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, Black | 640-3581 |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, White/ss | 640-3580S V |
| 6b | Suction Assy, WW Super Hi-Flo,3-3/8″hs,2-1/2″s,251gpm, White | 640-3790 |
