Description

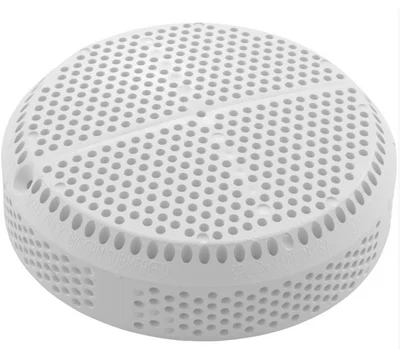

5 inch suction cover in white 642-3630 V for Super Hi Flo Waterway suction fitting assemblies. This is a VGB compliant suction cover.
Mounting screws sold separately if needed – see the Hi Flo Suction Cover Mounting Screw part.
GPM = 232 gpm with vacuum tube, 180 without vacuum tube.
Also available in black or gray.
| Cover Diameter | 5-3/16″ |
| Suction Fitting Part Type | Cover |
| Color | White |
| Wall Flow Rate | 180gpm, 232gpm |
| Manufacturer | Waterway |
We also offer the wall fitting and gasket 711-3260 .
| 1 | Screw, 6-20 x 5/8″, Flat, Phillips, SS | 819-1251 |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, White, W/O Screws | 642-3630 V |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, Gray, W/O Screws | 642-3637 V |
| 2 | Suction Cover, Waterway 5″ Super Hi-Flow, Black, W/O Screws | 642-3631 |
| 3 | Wall Fitting, WW 5″ Super Hi-Flo, 3-3/8″hs, 2-1/2″s | 215-3610 |
| 3 | Wall Fitting, WW 5″ Super Hi-Flo, 3-3/8″hs, 2″s | 215-3620 |
| 4 | Gasket, Waterway Super Hi-Flow Suction Fitting | 711-3260 |
| 5 | Nut, Waterway 5″ Super Hi-Flo Wall Fitting, 2″ or 2-1/2″ | 642-3620 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Beige | 640-3570 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Gray | 640-3577 V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Black | 640-3571 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, 90 deg, White | 640-3600 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, 90 Deg, Gray | 640-3607 V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, White | 640-3630 |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, White/ss | 640-3630S V |
| 6a | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2″s, Gray | 640-3787 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,White | 640-3590 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,Black | 640-3591 |
| 6b | Suction Assy,WW Super Hi-Flo,3-3/8″hs,2-1/2″s,w/90 Deg,Gray | 640-3597 |
| 6b | Suction Assy, WW Super Hi-Flo,3-3/8″hs,2-1/2″s,180gpm, White | 640-3580 V |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, Gray | 640-3587 V |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, Black | 640-3581 |
| 6b | Suction Assy, WW Super Hi-Flo, 3-3/8″hs, 2-1/2″s, White/ss | 640-3580S V |
| 6b | Suction Assy, WW Super Hi-Flo,3-3/8″hs,2-1/2″s,251gpm, White | 640-3790 |
The bottom part is the wall fitting mounting nut 642-3620.
