Description
DISCONTINUED
see the individual parts that make up the assembly:
30173U-BK black suction cover discontinued – see gray –30173u-CG or white -WH.
30147-V wall fitting standard
30115-V gasket
30160-V suction body

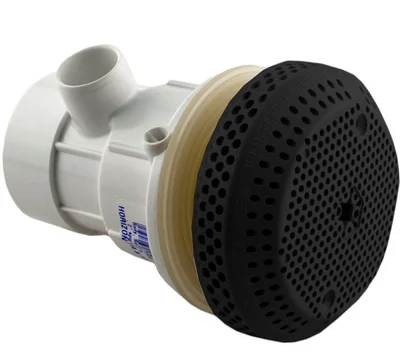

3 3/4″ round VGB compliant suction assembly (number 1 in image below) by GG/Balboa. Requires a 2 3/8 inch hole. The suction cover that is included is black, but we also offer this complete assembly in white or gray.
Rated at 124 gallons per minute.
Virginia Graham Baker compliant suction assembly 3 3/4 inches in diameter.
Comes with 2 screws.Specifications for this suction assembly:
| Hole Size | 2-3/8″ |
| Cover Diameter | 3-3/4″ |
| Plumbing Connection Size | 1/2″, 2″ |
| Plumbing Connection Type | Slip (s), Spigot (spg) |
| Color | Black |
| Wall Flow Rate | 124gpm |
This is for the entire suction assembly (4 parts below) (number 1 in image below in the color black). We also offer other suction parts including just the suction cover.
| 1 | Suction Assy, BWG/GG, 2-3/8″hs, 2″spg x 1/2″s, White | 54-410-1750 |
| 1 | Suction Assy, BWG/GG, 2-3/8″hs, 2″spg x 1/2″s, Gray | 54-410-1752 |
| 1 | Suction Assy, BWG/GG, 2-3/8″hs, 2″spg x 1/2″s, Black | 54-410-1754 |
| 2 | Suction Cover, BWG/GG, 3-3/4″, 124 gpm, White, w/Screws | 30173U-WH |
| 2 | Suction Cover, BWG/GG, 3-3/4″, 124 gpm, Gray, w/Screws | 30173U-CG |
| 2 | Suction Cover, BWG/GG, 3-3/4″, 124 gpm, Black, w/Screws | 30173U-BK |
| 3 | Wall Fitting, BWG/GG, 2-3/8″hs, 2″s, 1-3/8″ Length, White | 30147-V |
| 3 | Wall Fitting, BWG/GG, 2-3/8″hs, 2″s, Long 2-3/8″ Length, Wht | 30147L |
| 4 | Gasket, Wall Fitting, Balboa Water Group/GG Suction | 30115-V |
| 5 | Suction Body, BWG/GG Suction, 2-3/8″hs | 30160-V |
Assembly includes all 4 parts – the suction cover, wall fitting, gasket and suction body 30160-V. Plumbing connection size is 1 1/2 inch slip or 2 inch spigot for this suction assembly.
