Description

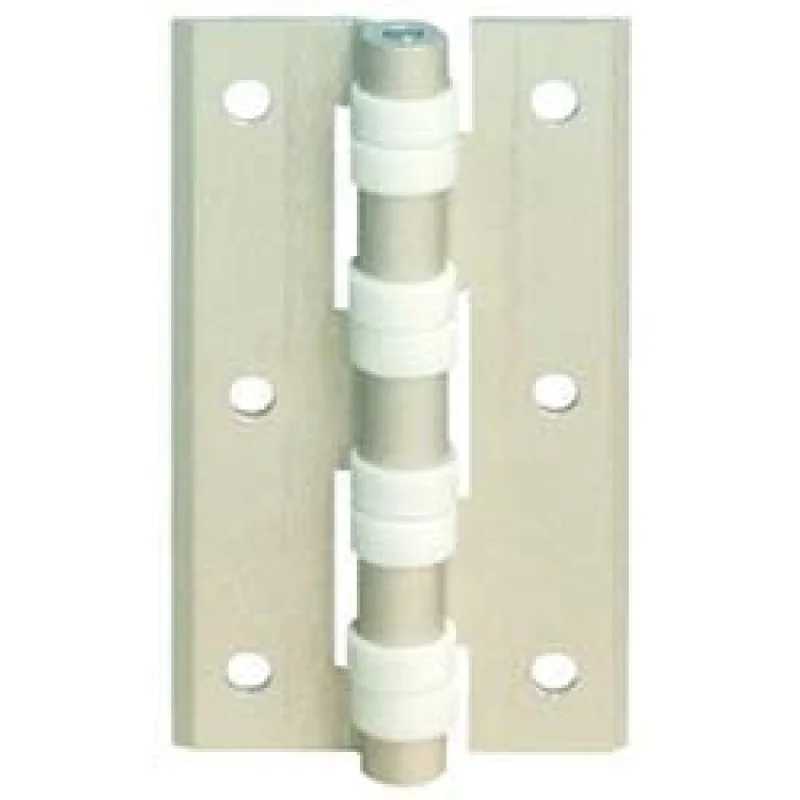

The SUGATSUNE HG-CV65 is an aluminum cabinet hinge designed for light-duty cabinetry and enclosure applications. Measuring 2-3/8 inches in overall width and 9/64 inches in leaf thickness, this hinge provides a low-profile, corrosion-resistant pivot point suitable for aluminum or lightweight cabinet doors. The 2-knuckle construction and 13/64-inch pin diameter deliver smooth operation with a compact footprint. Carpenters, millwork installers, and general contractors typically specify this hinge where weight savings and a clean finished appearance are priorities. The all-aluminum construction resists rust in humid or coastal environments.
This hinge is suited for residential and light commercial cabinetry, enclosure panels, and aluminum-framed door assemblies. It is a surface-mount style butt hinge sold individually. Its compact profile makes it a practical choice for shallow-door applications, utility enclosures, and finish carpentry where a standard steel hinge would add unnecessary weight or create galvanic compatibility concerns with aluminum door frames.
Key Features
- All-aluminum construction resists corrosion in humid or coastal environments
- Overall width of 2-3/8 inches fits standard light-duty cabinet door cutouts
- Leaf thickness of 9/64 inches provides a low-profile mount with minimal door gap
- 13/64-inch pin diameter supports smooth, consistent pivot action
- 2-knuckle design keeps the hinge profile compact and unobtrusive
- Sold individually order exact quantities needed
Compatibility
Designed as an OEM-style replacement or new-installation hinge for light-duty aluminum cabinetry and enclosure panel doors requiring a 2-3/8-inch wide butt hinge with a 9/64-inch leaf thickness.
Installation Notes
Installation is typically performed by carpenters, millwork installers, or general contractors using standard hand tools. Power down or de-energize any enclosure before servicing panels fitted with this hinge. Ensure the mortise or surface-mount recess is clean and free of burrs before seating the leaf to prevent binding. Follow applicable local building codes for cabinet and enclosure hardware installation.
Technical Specifications
- Hinge Material: Aluminum
- Hinge Type: Aluminum Cabinet
- Overall Width: 2-3/8 inches
- Length: 2-9/16 inches
- Leaf Thickness: 9/64 inches
- Pin Diameter: 13/64 inches
- Hinge Butt Width: 35/64 inches
- Number of Knuckles: 2
- Weight: 0.2 pounds
- Package Quantity: 1
Standard Information
- Brand: SUGATSUNE
- Manufacturer Part Number: HG-CV65
