Description

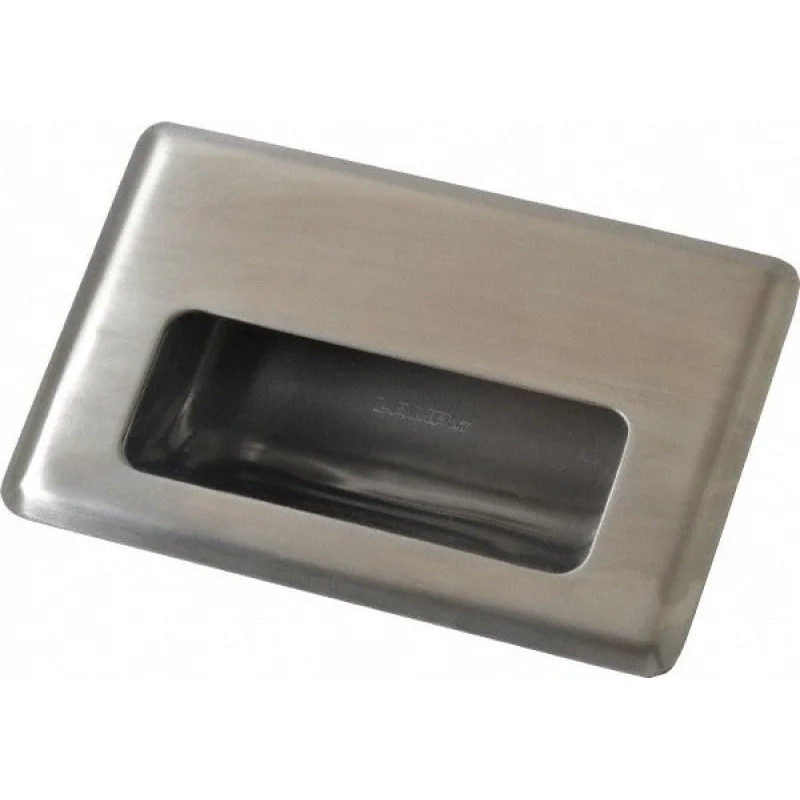

The SUGATSUNE HH-FB-1/S is a recessed sheet metal pull designed for cabinet doors, panels, and enclosures where a flush-mount handle is required. Manufactured from 304 stainless steel with a satin finish, this pull measures 138mm (5.44 inches) overall width and 88mm (3.46 inches) overall height, with a recess depth of 21mm (0.83 inches). The recessed cavity measures 96mm (3.78 inches) wide by 62mm (2.44 inches) high, with a 110mm (4.33 inches) center-to-center mounting dimension. It installs with an M4 stud thread, making it compatible with standard M4 hardware. This hardware is commonly installed by cabinetmakers, sheet metal fabricators, and equipment enclosure technicians.
This recessed pull is suited for light commercial and industrial panel applications where a low-profile, flush-mount grip is needed. Typical installations include electrical enclosures, instrument panels, server rack doors, and cabinetry where the handle must sit below the face surface to avoid obstruction. The satin stainless steel finish resists corrosion and blends with brushed metal panel surfaces. Its compact footprint and standardized M4 thread make it straightforward to integrate into new builds or replacement installations.
Key Features
- Flush recessed design keeps handle below panel surface to prevent snagging
- 304 stainless steel construction for corrosion resistance in demanding environments
- Satin finish matches brushed stainless and sheet metal panel aesthetics
- M4 stud thread for compatibility with standard metric fastener hardware
- 110mm center-to-center mounting span for precise, repeatable installation
- Compact recess cavity: 96mm wide x 62mm high x 21mm deep
Compatibility
Designed as an OEM-style recessed pull for sheet metal panels, equipment enclosures, and cabinetry applications requiring an M4 stud mount and a flush-profile handle.
Installation Notes
Installation is typically performed by a cabinetmaker, sheet metal fabricator, or equipment technician. A cutout matching the recess cavity dimensions must be made in the panel before fitting. Ensure the panel thickness accommodates the 21mm (0.83 inch) recess depth before installation. Secure using M4-compatible fasteners and verify pull seating is flush with the panel face before final tightening.
Technical Specifications
- Overall Width: 138mm (5.44 inches)
- Overall Height: 88mm (3.46 inches)
- Recess Depth: 21mm (0.83 inches)
- Recess Width: 96mm (3.78 inches)
- Recess Height: 62mm (2.44 inches)
- Center to Center: 110mm (4.33 inches)
- Thread Size: M4
- Material: 304 Stainless Steel
- Finish: Satin
- Weight: 0.375 pounds
Standard Information
- Brand: SUGATSUNE
- Manufacturer Part Number: HH-FB-1/S
