Description

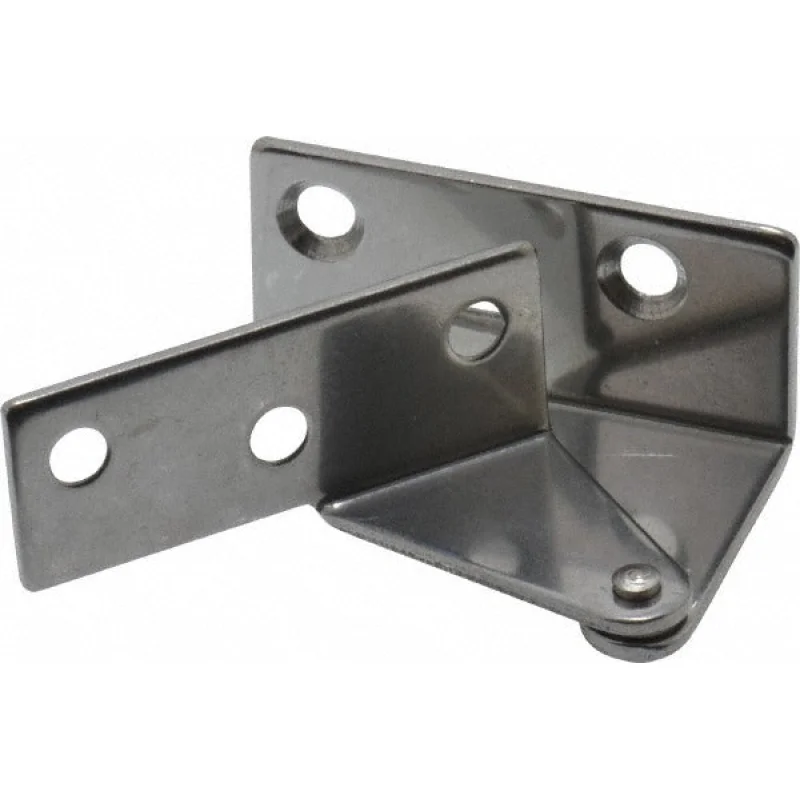

The SUGATSUNE WP-3R is a right-hand overlay door pivot hinge constructed from 430 stainless steel in a plain finish. It is designed for light-duty door and cabinet applications where corrosion resistance and a clean appearance are required. The hinge measures approximately 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick, with a leaf height of 45/64 inches. The single-knuckle design features 6 mounting holes and a 3.9-pound load capacity, making it suitable for small overlay panel or door installations. Licensed cabinet installers and millwork tradespeople are the primary installers for this type of hardware.
The WP-3R is intended for overlay door configurations where the door face sits proud of the frame or cabinet opening. This style of pivot hinge is commonly used in residential and light-commercial cabinetry, access panels, and specialty enclosures. Its stainless steel construction makes it appropriate for environments with moderate humidity exposure, including kitchens, utility rooms, and marine-adjacent applications. The right-hand orientation must be confirmed against the door swing before installation.
Key Features
- 430 stainless steel construction for corrosion resistance in moderate-humidity environments
- Right-hand overlay configuration for doors that sit proud of the frame
- Single-knuckle design with 6 mounting holes for secure attachment
- 3.9-pound rated load capacity suitable for small panels and cabinet doors
- Compact form factor: 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick
- Plain finish for a clean, unobtrusive appearance
Compatibility
Designed as an OEM-style pivot hinge for right-hand overlay door applications in residential and light-commercial cabinetry or panel enclosures.
Installation Notes
Installation is typically performed by a cabinetmaker, millwork installer, or general contractor using standard hand tools. Confirm right-hand orientation relative to the door swing before fastening. Verify that the mounting surface material and screw size are appropriate for the 3.9-pound load rating of this hinge. Power down any associated electrical enclosures before installing hardware on access panels.
Technical Specifications
- Length: 1-7/64 inches
- Width: 1-37/64 inches
- Thickness: 1-1/2 inches
- Leaf Height: 45/64 inches
- Load Capacity: 3.9 pounds
- Number of Holes: 6
- Knuckles: 1
- Material: 430 Stainless Steel
- Finish: Plain
- Hand: Right Hand
- Weight: 0.046 pounds
Standard Information
- Brand: SUGATSUNE
- Manufacturer Part Number: WP-3R
