Description

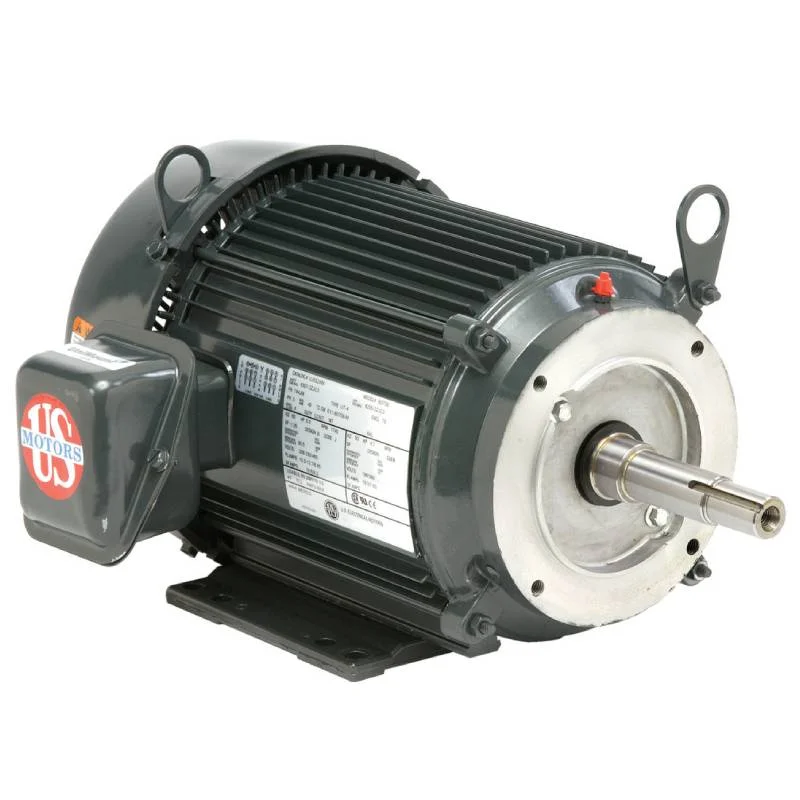

U.S. MOTORS EEQKT1000 Close Coupled EQ Series TEFC Replacement Pump Motor 3PH 10HP 208-230/460V
- 10 HP 208 230 460V EQ MOTOR TEFC
- 1.15 SF INGROUND PENTAIR
- Brand: U.S. MOTORS
- Ambient Temperature: 40 degrees Fahrenheit
- Shipping Dimensions: 26 x 16 x 16 inch
- Application: Pool, Spa
- Bearing Type: Ball
- Duty Cycle: Continuous
- Efficiency Group: Premium
- Horsepower: 10 horsepower
- Insulation Class: F
- Motor Enclosure Type: Totally Enclosed Fan Cooled
- Motor Frame Size: 215JMZ
- Phase: Three
- Weight: 120 pounds
- RPMs Max: 3600
- RPMs Min: 3600
- Service Factor: 1.25
- Shaft Material: 300 Stainless Steel
- Voltage: 208V, 230V, 460V
- Commercial, Residential, or Professional: Commercial
- Motor Rating: Full-Rated
- Nominal Efficiency %: 91
- UPC Code: 786382123987
- Tech Document
