Description

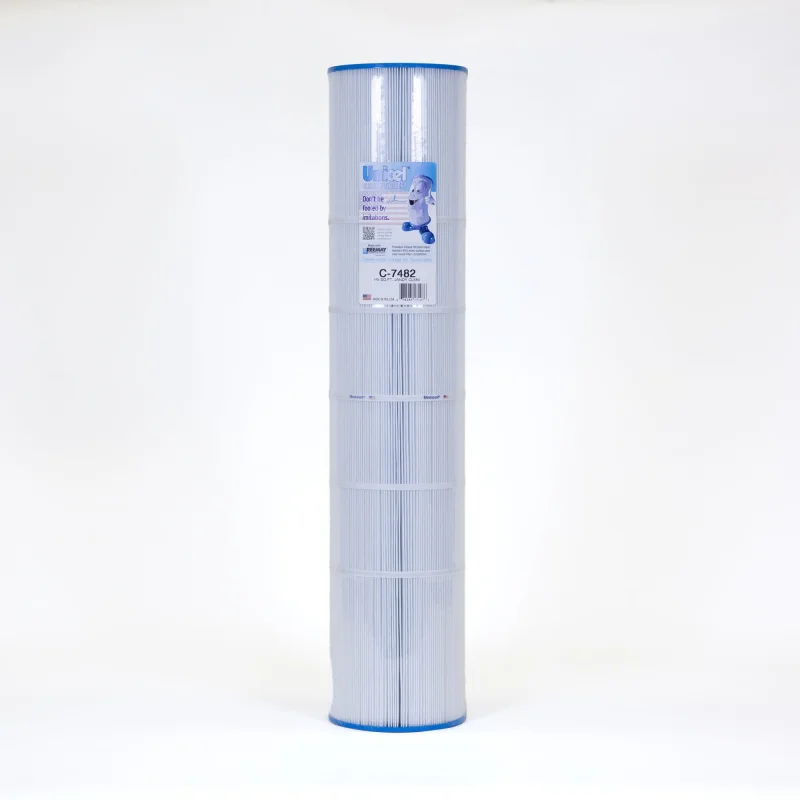

The Unicel C-7482 is a 7000 Series 145 sq. ft. replacement filter cartridge engineered for Jandy’s CL580 and CV580 cartridge filter systems. With 180 precision-formed pleats of 4 oz. Reemay 2040 spun-bonded polyester, it delivers the filtration surface area and media density your system was designed for maintaining water clarity and protecting your equipment between service intervals.
IMPORTANT: Full Filter Service Requires 4 Cartridges
Your Jandy CL580 and CV580 filter system requires 4 cartridges for a complete service (4 145 sq. ft. = 580 sq. ft. total). Replacing all cartridges at the same time ensures consistent flow, balanced filtration, and full filter efficiency. Add 4 units to your cart to complete your filter service.
Specifications
| Filter Area | 145 sq. ft. |
| Length | 33″ |
| Outer Diameter | 7″ |
| Top Inner Diameter | 3″ |
| Bottom Inner Diameter | 3″ |
| Material | 4 oz. Reemay 2040 |
| Pleat Count | 180 |
| Top Cap: Open | Bottom Cap: Open |
Fits into:
| OEM Brand | Filter Model | OEM Part Number | Notes |
| Jandy | CL580 | A0104100 | 4 cartridges required for full service |
| Jandy | CV580 | R0357900 | 4 cartridges required for full service |
(This is not an exhaustive list.)
Pro Tip: Before ordering, measure your existing cartridge: 33″ length, 7″ outer diameter, and 3″ inner diameter on both ends. The C-7482 features identical open caps on both ends it is non-directional and can be installed in either orientation. Since both the CL580 and CV580 carry the same 580 sq. ft. system designation, confirm your filter model on the label before selecting your replacement to ensure you’re ordering the correct OEM part number.
Also known as: C7482
