Description

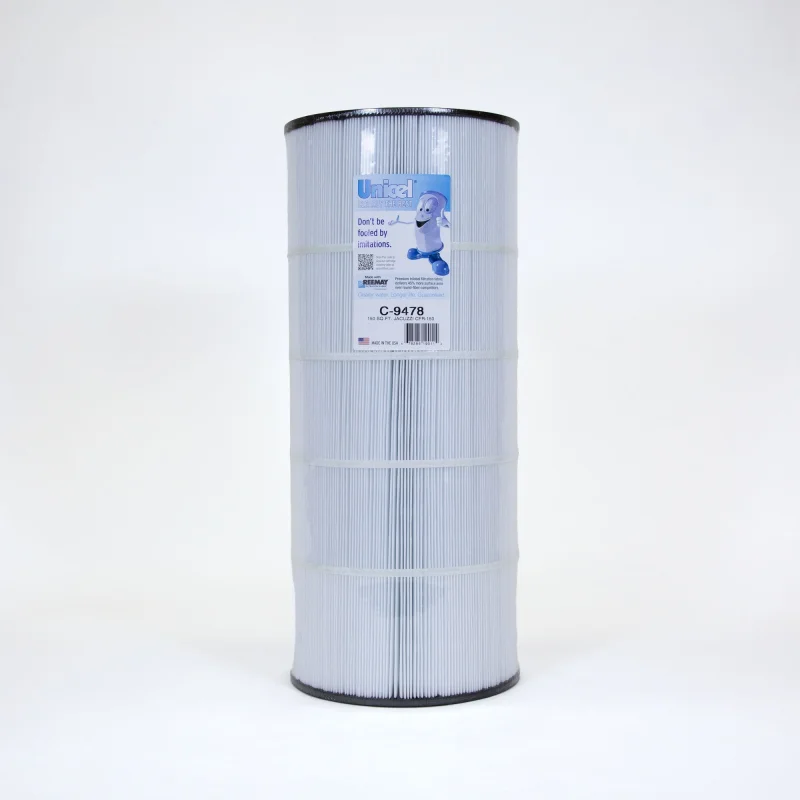

The Unicel C-9478 is a precision-engineered 9000 Series replacement filter cartridge for the Jacuzzi Brothers CFR-150 filter system, delivering 150 sq. ft. of filtration area through 227 precision pleats of 4 oz. Reemay 2040 spun-bonded polyester media. Unicel’s exact-spec manufacturing means a proper fit in the CFR-150 housing with the correct asymmetrical end opening dimensions that this filter requires for a proper seal.
IMPORTANT: No Center Core
This cartridge does not include a center core. It is designed to fit over the internal manifold of your Jacuzzi Brothers CFR-150 filter housing. This is correct and expected for this model do not attempt to install a separate core.
Specifications
| Filter Area | 150 sq. ft. |
| Length | 24″ |
| Outer Diameter | 9 15/16″ |
| Top Inner Diameter | 5 13/16″ |
| Bottom Inner Diameter | 6 1/16″ |
| Material | 4 oz. Reemay 2040 Spun-Bonded Polyester |
| Pleat Count | 227 |
| Top Cap: Open | Bottom Cap: Open |
Note from Unicel: This product has no center core.
Fits Into:
| OEM Brand | Filter Model | OEM Part Number | Notes |
| Jacuzzi Brothers | CFR-150 | 42-3508-01-R | 4 oz. media version OEM black end caps |
| Jacuzzi Brothers | CFR-150 | 42-3537-06-R | 3 oz. media version OEM slate blue end caps |
(This is not an exhaustive list.)
About OEM Part Numbers & End Cap Colors: Jacuzzi Brothers originally offered the CFR-150 cartridge in two media weights, identified by end cap color black for the 4 oz. heavy-duty version and slate blue for the 3 oz. standard version. The Unicel C-9478 uses 4 oz. Reemay 2040 media, matching the heavier-duty OEM specification, and is a compatible replacement for both OEM variants. Note: Unicel replacement end cap color will differ from the original OEM color.
Pro Tip: The CFR-150 uses intentionally asymmetrical inner openings the top measures 5 13/16″ and the bottom measures 6 1/16″. If you’re verifying fit before ordering, measure both ends of your existing cartridge. A mismatch on either end is the most common cause of a perceived wrong-part situation on this model. The C-9478’s 9 15/16″ outer diameter also gives you a quick outer-dimension confirmation without removing the cartridge from housing.
Also known as: C9478
