Description
DISCONTINUED, see 27-J0413-5S-K

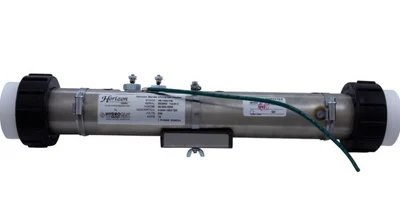

Universal 4.5kW Heater B24045T5T 230V 15×2 Inch without tailpieces.
This is a universal 4 1/2 kw 230 volt heater with 15 inch manifold length.
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Lead End Terminal Location | 4-3/8″ |
| Threaded Tap Orientation | 12 O`Clock, 3 O`Clock, 9 O`Clock |
| Threaded Tap Location | 12-3/4″ From Leading End, 13″ From Leading End, 3″ From Leading End, 8-1/4″ From Leading End |
| Kilowatts | 1.1kW, 4.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | Adjustable |
| Mounting Stud Type | Adjustable |
| Heater Size | 2″ |
| Heater Application |
Universal |
- Adjustable grounding and mounting studs
- Adjustable thermowell cover
- Multiple pressure switch ports
- Stainless steel pressure switch plugs
- 2”s heater split nuts
Optional pressure switch see 3029.
