Description
DISCONTINUED see /compare the 230v circ pump for 1 1/2 inch plumbing: LX WTC50MSTD or see the Balboa 6154106-S
Or see 1070021
.6a/230v

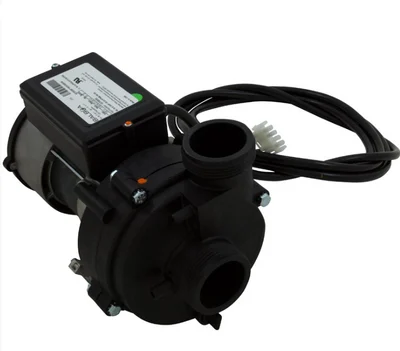

Power Wow circulation pump 1/4HP operates at 230 volts.
1070056 is a circ pump that comes with AMP cord and plug.
California Title 20 Compliant – .
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 6 o`clock |
| Pump to Motor Foot Types | 1a |
| Suction Auxiliary Port | 3/8″ barb (b) 1ea |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 2-7/16″od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Auxiliary Port | 3/8″ barb (b) 1ea |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 2-7/16″od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2″ |
| Horsepower | 0.25hp |
| Motor Amperage/Wattage | 1.05A |
| Manufacturer | Balboa Water Group |
| Pump Model | Power Wow Vico |
| Volute Fastening Type | 4 Bolts |
Circ pump replaces 1070056 , 301367 ,PEN1070056 and VIC1070056.
Balboa Vico 230 volt, 1 amp circ pump has 1 1/2 inch plumbing connections.
This item also replaces the discontinued 1030056 (1C Si 0.25Hp 60Hz 1S 17Ftm3 Mb Hv B)
Replaces 1070056 , 301367 , VIC1070056 .
Need unions? See 0602-15 with a slip connection in back to accept 1 ½ inch inner diameter flex hose or 400-4240 with a spigot in back to fit into the slip connection of another PVC part.
The related pump o-ring is O-287.
