Description

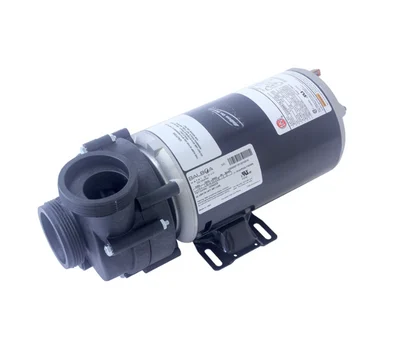

Vico Ultima 1.5 HP 2-Speed 115v Spa Pump 1054204 is a 1.5HP 2-speed, 48 frame spa pump for 2 inch plumbing.
This pump now ships with a capacitor on top as per second photo.
| Manufacturer | Vico/Balboa |
| Pump Model | Ultima |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 1.5hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 10.3a / 3.8a High Speed / Low Speed Amps |
1.5HP, 115V, 10.3a / 3.8a , 2-Speed, 2″MBT, SD, 48-Frame
-All seals are carbon ceramic with Viton® elastomersfor long-lasting performance, easily enduring prolonged heat and chemical exposure-Multi-direction volute mounting and options deliver the greatestrange of plumbing configurations-Available in a compact 48 frame design motor or a cool running56 frame motor.-Choose single- or two-speed motor from 1 to 2 HP. Withtwo-speed models, sanitation and heating can occur whilemaintaining lower running costs. Low cost motor combinationoption available for economical spa systems-115 volt options for portable plug and play spa models-UL and CSA certified
Voltage 115V, 60Hz
