Description

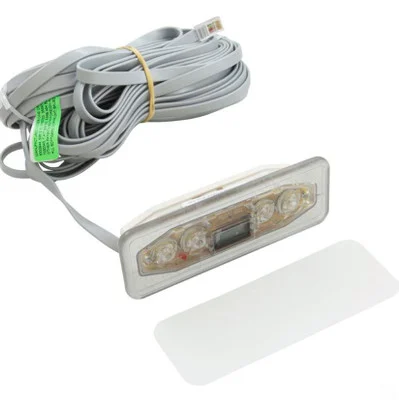

VL401 Control Panel 50Ft Cord 52817 52817-01 Lite Duplex
Balboa Water Group VL401 (Lite Duplex Digital) topside Control panel is used with Balboa VS500Z, VS501Z systems.
Dimensions: 6-3/8” x 2-1/4”
The BWG Lite Duplex Digital topside is compatible with Duplex Digital and Super Digital/M-1 circuit boards and comes with a 50ft. long cord with an 8 wire phone jack style plug.
VL401 Specifications
| Manufacturer | Balboa Water Group |
| Model | VL401 |
| of Buttons | 4 |
| Topside Shape | Rectangular |
| Cord Length | 50ft |
| Panel Size | 6-3/8″ x 2-1/4″ |
| Part Type | Topside Only |
This is the version of the control panel with the extra long 50 ft. cord.
Overlay sold separately if needed.
11885 jet, light, cool, warm 4 button overlay
11671 jet, jet, temp, light 4 button overlay for 2 pump spas
10669 blower, jet, temp, light
Or see universal button layout overlay 80-VL401-03
There is also the control panel with 3 buttons 54135 jet, temp, light 3 button overlay
It will also work on Hydro-Quip Platinum Series 6501B and 6502B systems. The Lite Duplex Digital topside is compatible with Duplex Digital and Super Digital/M-1 circuit boards.
Includes a 50ft cord with an 8 wire phone jack style plug and comes without an overlay. LCD display. See 10669 overlay
