Description

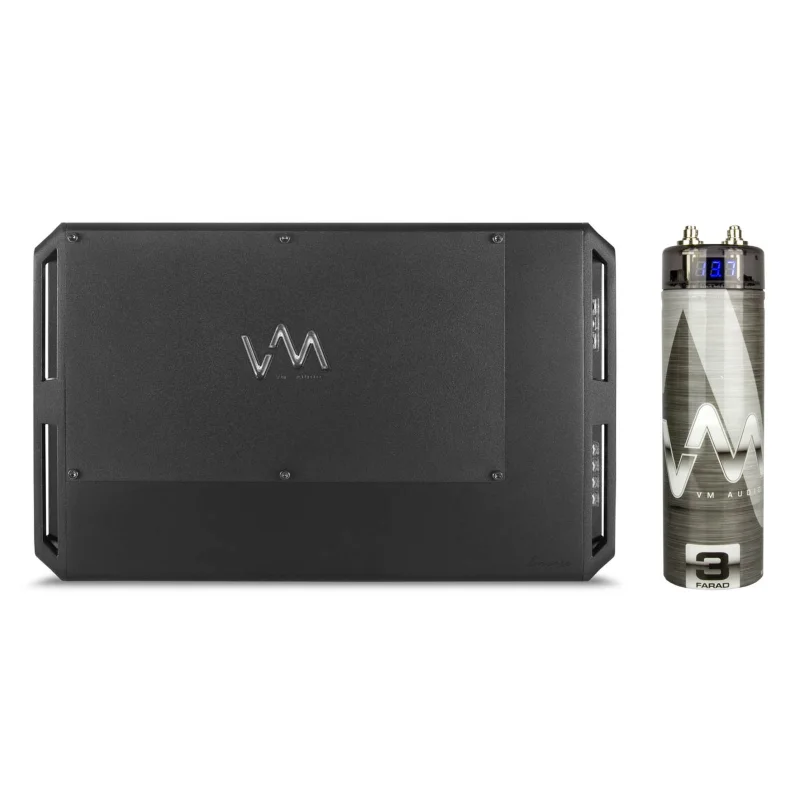

**VM Audio ECD2500.1 CLASS D DIGITAL AMPLIFIER SPECIFICATIONS**
RMS Power 4 Ohms: 625W x 1
RMS Power 2 Ohms: 1250W x 1
MAX Power 1 Ohm: 2500W x 1
Frequency Response: 10Hz 180Hz
Lowpass Crossover: 40Hz 180Hz
Subsonic: 0Hz 50Hz
Bass Boost Frequency: 30Hz 80Hz
Bass Boost: 0dB 12dB
Input Voltage: 0.12V 4.2V
Fuse 30A x 4
Dimensions (L x W x H): 15.51 x 9.65 x 2.17
Manufacturer warranty: 1 year
New VM Audio **SRCAP3.0 3 Farad Car Hybrid Digital Capacitor**
Type: Digital
Capacitance: 3 Farad
Maximum Handling: 3000W
Digital Meter Display: Yes
Maximum Input Wire Size: 4 Gauge
Maximum Output Wire Size: 4 Gauge
Illumination: Blue
Voltage : 16V Maximum / 20V Surge
Connections: Nickel Plated Post Connect
Manufacturer warranty: 1 year
- VM Audio ECD2500.1 DIGITAL MONOBLOCK AMPLIFIER FEATURES
- Mono Power Subwoofer Car Amplifier
- Hyper Digital Class D
- Exclusive Robust High Cycle DC to DC PWM Power Conversion
- Four Stage Regulated Synergistic High Voltage Rail Performance
- Sophisticated Noise Free Single Star Ground System
- Strategic Side to Side Air Flow Thermal Cooling Chassis Ventilation
- Low Noise and Distortion Buffered Line Level Input Stage
- Ultra Low Distortion Multi Stage Dynamic Signal Processing
- Second Order Linkwitz Riley Active Crossover Filter Processing
- Efficient Low Heat High Power Switch Mode Amplifier Stage Circuitry
- SelfGuard Protection: Thermal, Short Circuit, Over Voltage and DC Offset
- Turn On Outflow Limiting Current (VM Audio exclusive)
- Unbalanced Line Level Stereo Inputs
- Direct Non Fading Line Level Stereo Outputs
- Adjustable Input Signal Gain Control
- Continuous Variable Lowpass Filter
- Active Ultra low Subsonic Lowpass Filter
- Dedicated Frequency Selection Bass Boost Control
- Continuous Variable Bass Boost Gain
- Versatile Remote Bass Control Adaptor Included
- Independent Power and Protection Status LEDs
- High Quality Nickel Plated Brass, Block Speaker & Power Terminals
