Description

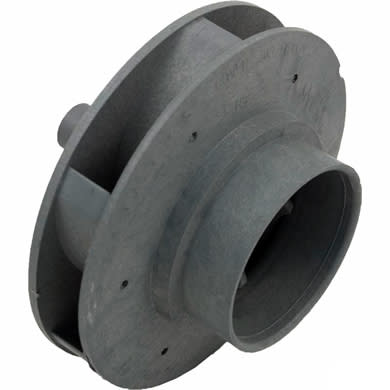

5 HP Executive Impeller.Closed face impeller made for the Executive pump by Waterway Plastics. Rated at 5.0hp, it is used in a Waterway Executive pump wetend, and must be installed on a 5.0hp (or greater) thru bolt motor. Shaft seal sold separatelyImpeller Type : Closed FaceImpeller Diameter OD : 4-1/2″Vane Width ID : 9/16″Eye Diameter OD : 2-3/8″Eye Length : 15/16″Impeller Width OD : 7/8″Seal Seat Depth : 3/4″Shaft Length : 1-1/4″Shaft Diameter OD : 5/8″Seal Seat Diameter OD : 1-3/8″
