Description
Open Box Customer Return

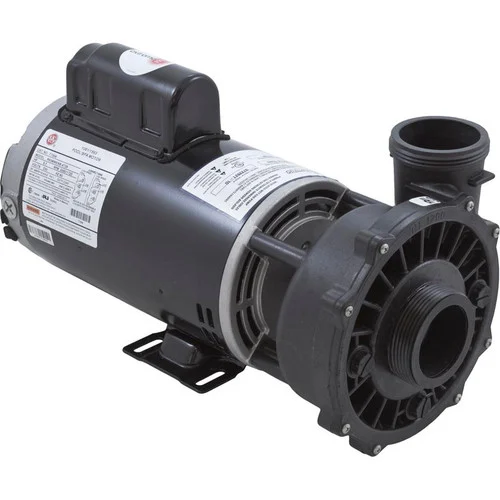

The Waterway Plastics 3722021-1D is an excellent choice for a wide range of applications. It features a powerful 5 Horsepower, two-speed motor, and a 230 volt, 56 frame design with 16.4 amps on high speed and 4.8 amps on low speed.
It also has large, highly versatile 6-1/2″ diameter wet end for higher head pressure and a split capacitor (start and run) for less energy consumption. It contains two double-shielded ball bearings with moisture-resistant lubricant for quieter operation and a long lifespan. Additionally, the rotatable wet-end design allows you to adjust it every 90 degrees for maximum flexibility in installation. The 3722021-1D also features a 2” intake and discharge with Viton seals, as well as insulated windings for increased efficiency. Please note that this does not include unions or pump cord.
- Motor Voltage – 230v
- Speed – 2 Speed (2-Spd)
- Motor Amperage/Wattage – 16.4 A High Speed, 4.8 A Low Speed
- Horsepower – 5.0hp
- Pump Model – Executive
- Connection Size – 2 Inch Intake & Discharge
- Discharge Style – Side
- Motor Frame – 56 Frame Thru-Bolt
- Drain Plug Location – 3,6,9 o`clock
- Frequency Rating – 60 Hz
- RPM – 3450 RPM
Fitment guidelines:Fits Spa Pumps, Hot Tubs, Bath Tubs, Jacuzzi Tubs, Whirlpool Tubs.
Additional information:Alternate Part Numbers – 34-270-3598, WWP-10-1423, WW37220211D
