currently unavailable see our other pumps or- The motor is available separately – BN24V1 and the Wet ends such as 310-1120 are also available
You can also use the 2-speed motor/wet end combination – Motor BN36 and wet end 310-1120 depending on your installation needs. 2-speed motors can be wired for single speed use by only wiring the high speed terminal and leaving low speed unconnected.

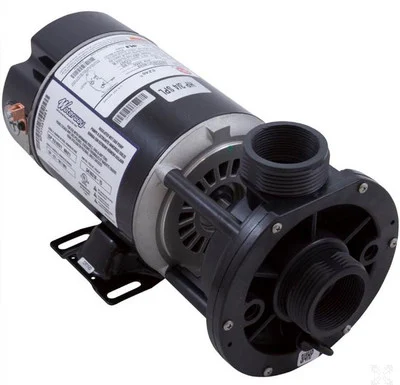

Waterway Pump 3410310-15 E-Series 0.75SPL 115v 1-Speed ,48 frame 1-1/2″ OEM 3410310-15
| Manufacturer | Waterway |
| Pump Model | E-Series Center Discharge |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Style | Center |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2″ |
| Horsepower | 0.75SPL |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 9.8A |
.The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2″ intake and discharge and a rotatable wet end for easy installation. Spa Pump Features: Reliable center discharge performance, 1-1/2″, Intake and discharge, Wet end can be rotated for easy installation, Available in 0.75hp to 2hp and in single or dual speed. Dimensions (H x W x L): 7.35″ x 7″ x 14.00″. California Title 20 Compliant. Note: This new E-Series version replaces the old style Waterway center discharge pump
Replaces 308623 , 3410310 , 3J10310 , 5030-176 , 5030-260 , 673809 , 806105066787 , S55CXRJC-8049 , WW341031015 , WWP-10-1030.
| 11 | Faceplate, Waterway E-Series, 6-Bolt, Center Disch | 311-1070 |
| 12 | Impeller, Waterway E-Series, 0.5 Horsepower | 310-8000 |
| 12 | Impeller, Waterway E-Series, 0.75 Horsepower | 310-8010 |
| 12 | Impeller, Waterway E-Series, 1.0 Horsepower (Red) | 310-8020 |
| 12 | Impeller, Waterway E-Series, 1.5 Horsepower (Yellow) | 310-8030 |
| 12 | Impeller, Waterway E-Series, 2.0 Horsepower (White) | 310-8040 |
| 15 | Volute, Waterway E-Series, 6-Screw, Center Disch | 315-1070 |
| 16 | Wet End, WW E-Series 0.75hp 1-1/2″mbt/fpt 48fr | 310-1120 |
| 16 | Wet End, WW E-Series 1.0hp 1-1/2″mbt/fpt 48fr | 310-1130 |
| 16 | Wet End, WW E-Series 1.5hp 1-1/2″mbt/fpt 48fr | 310-1140 |
| 16 | Wet End, WW E-Series 2.0hp 1-1/2″mbt/fpt 48fr | 310-1141 |
| 18a | Pump, WW E-Series, 0.75SPL, 115v, 1-Spd, 48fr, 1-1/2″, OEM | 3410310-15 |
| 18a | Pump, WW E-Series, 1.0SPL, 115v, 1-Spd, 48fr, 1-1/2″, OEM | 3410410-15 |
| 18a | Pump, WW E-Series, 1.5hp, 115v, 1-Spd, 48fr, 1-1/2″, OEM | 3410610-15 |
| 18a | Pump,WW E-Series,2.0hp,115v/230v,1-Spd,48fr,1-1/2″,OEM | 3410830-15 |
| 18a | Pump, WW E-Series, 0.75hp, 115v, 2-Spd, 48fr, 1-1/2″, OEM | 3420310-15 |
| 18a | Pump, WW E-Series, 1.0hp, 115v, 2-Spd, 48fr, 1-1/2″, OEM | 3420410-15 |
| 18a | Pump, WW E-Series, 1.5SPL, 115v, 2-Spd, 48fr, 1-1/2″, OEM | 3420610-15 |
| 18a | Pump,WW E-Series,1.5hp,230v,2-Spd,48fr,1-1/2″,OEM | 3420620-15 |
| 18a | Pump,WW E-Series,2.0hp,230v,2-Spd,48fr,1-1/2″,OEM | 3420820-15 |
| 18b | Pump, WW E-Series, 0.75SPL USMotor, 115v, 1-Spd,48fr, 1-1/2″ | 3410310-15HZN |
| 18b | Pump, WW E-Series, 1.0SPL US Motor, 115v, 1-Spd, 48fr,1-1/2″ | 3410410-15HZN |
| 18b | Pump, WW E-Series, 1.0SPL Century, 115v, 1-Spd, 48fr, 1-1/2″ | 3410410-15HZW |
| 18b | Pump, WW E-Series, 1.5hp Century, Conv, 1-Spd, 48fr, 1-1/2″ | 3410610-15HZW |
| 18b | Pump, WW E-Series,2.0hp Century,Conv, 1-Spd,48fr,1-1/2″ | 3410830-15HZW |
| 18b | Pump, WW E-Series, 0.75hp Century, 115v, 2-Spd, 48fr, 1-1/2″ | 3420310-15HZW |
| 18b | Pump, WW E-Series, 1.5SPL US Motor, 115v, 2-Spd,48fr,1-1/2″ | 3420610-15HZN |
| 18b | Pump, WW E-Series, 1.5hp Century, 115v, 2-Spd, 48fr, 1-1/2″ | 3420610-15HZW |
| 18b | Pump, WW E-Series, 1.5hp Century,230v,2-Spd,48fr,1-1/2″ | 3420620-15HZW |
| 18b | Pump, WW E-Series,2.0hp Century,230v, 2-Spd,48fr,1-1/2″ | 3420820-15HZW |
