Description

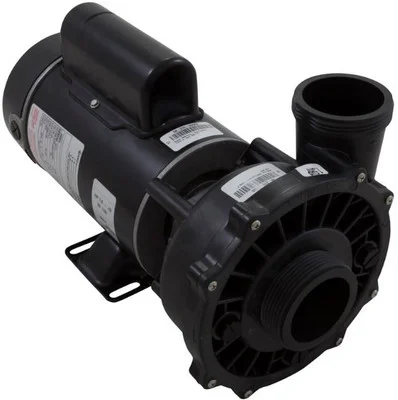

Waterway Pump Executive 1.5hp 115v 2-Speed ,48 frame 2″ 3420610-1AHZW.This item is ships as the OEM 3420610-1A.
Order this item and receive the original factory 1.5HP Waterway Executive 2-speed pump 3420610-1A, 48 frame with 2 inch plumbing connections by Waterway.
Now shipping the OEM pump 3420610-1A Executive 48, 1.5HP, 115V, 16.4/4.4A, 2-Speed, 2″MBT, SD, 48-Frame,
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 4a |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16″od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16″od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 1.5hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 13.3A/4.1A |
| Manufacturer | Waterway |
| Pump Model | Executive with US Motor |
| Manufacturer Impeller Number | 310-4220 |
When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.
The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end. Spa Pump Features: Executive wet end designed specifically for 48-frame motors, Large 6-1/2″ diameter wet end for higher head pressure.
2″ intake and discharge, Wet end can be rotated for easy installation.
Thermally protected to extend life expectancy of motor.
Dimensions (H x W x L): 8.34″ x 8.13″ x 13.95″.
California Title 20 Compliant.
3420610-1A is the same pump as 3420610-1AHZN and 3420610-1AHZW
| 14a | Wet End, WW Executive 1.0hp 2″mbt 48fr | 310-1870 |
| 14a | Wet End, WW Executive 1.5hp 2″mbt 48fr | 310-1880 |
| 14a | Wet End, WW Executive 2.0hp 2″mbt 48fr | 310-1890 |
| 14a | Wet End, WW Executive 3.0hp 2″mbt 48fr | 310-1900 |
| 14a | Wet End, WW Executive 4.0hp 2″mbt 48fr | 310-1910 |
| 14a | Wet End, WW Executive 4.5hp 2″mbt 48fr | 310-1920 |
| 14a | Wet End, WW Executive 5.0hp 2″mbt 48fr | 310-1930 |
| 14b | Wet End, WW Executive 1.0hp 2-1/2″mbt x 2″mbt 48fr | 310-1800 |
| 14b | Wet End, WW Executive 1.5hp 2-1/2″mbt x 2″mbt 48fr | 310-1810 |
| 14b | Wet End, WW Executive 2.0hp 2-1/2″mbt x 2″mbt 48fr | 310-1820 |
| 14b | Wet End, WW Executive 3.0hp 2-1/2″mbt x 2″mbt 48fr | 310-1840 |
| 14b | Wet End, WW Executive 4.0hp 2-1/2″mbt x 2″mbt 48fr | 310-1860 |
| 14b | Wet End, WW Executive 4.5hp 2-1/2″mbt x 2″mbt 48fr | 310-1850 |
| 14b | Wet End, WW Executive 5.0hp 2-1/2″mbt x 2″mbt 48fr | 310-1830 |
| 15b | Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame | BN62 |
| 15b | Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame | SDS1302 |
| 15b | Motor, Century, 4.0 Horsepower, 208v-230v, 2 Speed, 48 Frame | BN-63 |
| 15b | Motor, US Motor/WW, 4.5hp, 230v, 2 Speed, 48 Frame | SPH30FL2SSPL |
| 16a | Pump, WW Exec, 1.0SPL, 115v, 1-Spd, 48fr, 2″, OEM | 3410410-1A |
| 16a | Pump, WW Exec, 1.5SPL, 115v, 1-Spd, 48fr, 2″, OEM | 3410610-1A |
| 16a | Pump,WW Exec,2.0hp,115v/230v,1-Spd,48fr,2″,OEM | 3410830-1A |
| 16a | Pump, WW Exec, 4.0SPL, 230v, 1-Spd, 48fr, 2″, OEM | 3411621-1A |
| 16a | Pump, WW Exec, 1.0SPL, 115v, 2-Spd, 48fr, 2″, OEM | 3420410-1A |
| 16a | Pump, WW Exec, 1.5SPL, 115v, 2-Spd, 48fr, 2″, OEM | 3420610-1A |
| 16a | Pump, WW Exec, 1.5SPL, 230v, 2-Spd, 48fr, 2″, OEM | 3420620-1A |
| 16a | Pump,WW Exec,2.0hp,230v,2-Spd,48fr,2″,OEM | 3420820-1A |
| 16a | Pump, WW Exec, 3.0SPL, 230v, 2-Spd, 48fr, 2″, OEM | 3421221-1A |
| 16a | Pump, WW Exec, 4.5SPL, 230v, 2-Spd, 48fr, 2″, OEM | 3421821-1A |
| 16b | Pump, WW Exec, 1.0SPL US Motor, 115v, 1-Spd, 48fr, 2″ | 3410410-1AHZN |
| 16b | Pump, WW Exec, 1.0SPL Century, 115v, 1-Spd, 48fr, 2″ | 3410410-1AHZW |
| 16b | Pump, WW Exec, 1.5hp Century, Conv, 1-Spd, 48fr, 2″ | 3410610-1A2HZW |
| 16b | Pump, WW Exec, 2.0hp Century, Conv, 1-Spd, 48fr, 2″ | 3410830-1AHZW |
| 16b | Pump, WW Exec, 1.0hp Century, 115v, 2-Spd, 48fr, 2″ | 3420410-1AHZW |
| 16b | Pump, WW Exec, 1.5hp US Motor, 115v, 2-Spd, 48fr, 2″ | 3420610-1AHZN |
| 16b | Pump, WW Exec, 1.5hp Century, 115v, 2-Spd, 48fr, 2″ | 3420610-1AHZW |
| 16b | Pump, WW Exec, 1.5SPL Century, 230v, 2-Spd, 48fr, 2″ | 3420620-1AHZW |
| 16b | Pump, WW Exec, 2.0hp Century, 230v, 2-Spd, 48fr, 2″ | 3420820-1AHZW |
| 16b | Pump, WW Exec, 3.0hp US Motors, 230v, 2-Spd, 48fr, 2″ | 3421221-1AHZN |
| 16b | Pump, WW Exec, 3.0SPL Century, 230v, 2-Spd, 48fr, 2″ | 3421221-1AHZW |
| 16b | Pump, WW Exec, 4.5SPL US Motor, 230v, 2-Spd, 48fr, 2″ | 3421821-1AHZN |
| 16b | Pump, WW Exec, 4.5hp Century, 230v, 2-Spd, 48fr, 2″ | 3421821-1AHZW |
| 16c | Pump, WW Exec, 2.0SPL,115v/230v,1-Spd,48fr,2-1/2″ x 2″,OEM | 3410830-13 |
| 16c | Pump, WW Exec, 4.0SPL, 230v, 1-Spd, 48fr, 2-1/2″ x 2″, OEM | 3411621-13 |
| 16c | Pump, WW Exec, 1.0SPL, 115v, 2-Spd, 48fr, 2-1/2″ x 2″, OEM | 3420410-13 |
| 16c | Pump, WW Exec, 1.5hp, 115v, 2-Spd, 48fr, 2-1/2″ x 2″, OEM | 3420610-13 |
| 16c | Pump, WW Exec, 1.5SPL, 230v, 2-Spd, 48fr, 2-1/2″ x 2″,OEM | 3420620-13 |
| 16c | Pump,WW Exec,2.0hp,230v,2-Spd,48fr,2-1/2″ x 2″,OEM | 3420820-13 |
| 16c | Pump,WW Exec,3.0hp,230v,2-Spd,48fr,2-1/2″ x 2″,OEM | 3421221-13 |
| 16c | Pump, WW Exec, 4.5hp, 230v, 2-Spd, 48fr, 2-1/2″ x 2″, OEM | 3421821-13 |
| 16d | Pump, WW Exec, 1.5hp Century, Conv, 1-Spd, 48fr, 2-1/2″ x 2″ | 3410610-1A-2.5HZW |
| 16d | Pump, WW Exec, 1.5SPL USMotor, 115v,2-Spd,48fr, 2-1/2″ x 2″ | 3420610-13HZN |
| 16d | Pump, WW Exec, 1.5hp Century, 115v, 2-Spd, 48fr, 2-1/2″ x 2″ | 3420610-13HZW |
| 16d | Pump, WW Exec, 2.0hp Century,230v,2-Spd,48fr,2-1/2″x2″ | 3420820-13HZW |
| 16d | Pump, WW Exec, 3.0hp US Motors, 230v, 2-Spd,48fr, 2-1/2″x2″ | 3421221-13HZN |
| 16d | Pump, WW Exec, 3.0SPL Century, 230v, 2-Spd, 48fr, 2-1/2″x2″ | 3421221-13HZW |
| 16d | Pump, WW Exec, 4.0hp USMotor, 230v, 2-Spd, 48fr, 2-1/2″ x 2″ | 3421821-13HZN |
